Запчасти Case IH 150 (36) - FERTILIZER FEEDSHAFT AND DROP BOTTOM

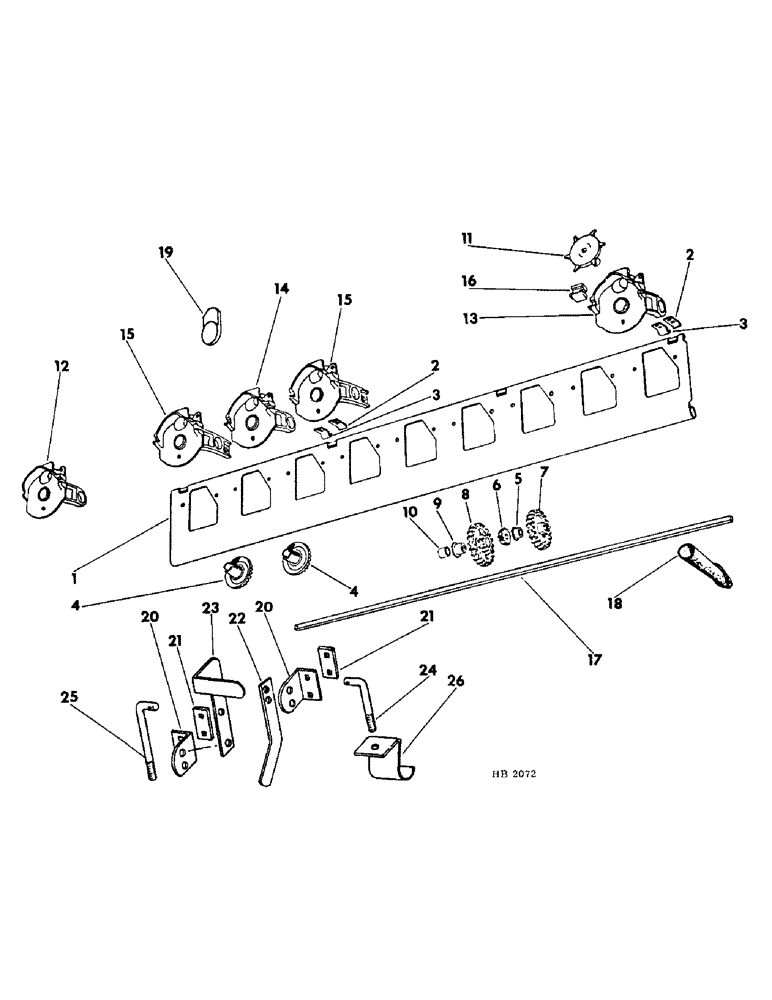

Схема запчастей Case IH 150 - (36) - FERTILIZER FEEDSHAFT AND DROP BOTTOM
14
13
7
22
24
15
1
3
20
26
20
2
6
25
12
15
11
17
19
16
2
21
21
4
5
10
4
8
18
3
9
23

Артикул

Название

Примечание

Количество

1

605493R11

BOTTOM ASSY, drop LH, 14X10

1шт.

1

605494R11

BOTTOM ASSY, drop RH, 14X10

1шт.

1

605499R11

BOTTOM ASSY, drop LH, 16X10

1шт.

1

605500R11

BOTTOM ASSY, drop RH, 16X10

1шт.

1

606098R11

BOTTOM ASSY, drop LH, 20X8

1шт.

1

606099R11

BOTTOM ASSY, drop RH, 20X8

1шт.

1

594671R11

BOTTOM ASSY, drop, 8X12

1шт.

1

594670R11

BOTTOM ASSY, drop, 10X10

1шт.

1

607519R11

BOTTOM ASSY, drop, 10X8

1шт.

1

608961R11

BOTTOM ASSY, drop LH, 10X12

1шт.

1

608962R11

BOTTOM ASSY, drop RH, 10X12

1шт.

1

608964R11

BOTTOM ASSY, drop LH, 14X12

1шт.

1

608965R11

BOTTOM ASSY, drop RH, 14X12

1шт.

1

605495R11

BOTTOM ASSY, drop LH, 12X14

1шт.

1

605496R11

BOTTOM ASSY, drop RH, 12X14

1шт.

1

605497R11

BOTTOM ASSY, drop LH, 10X14 and 8X18

1шт.

1

605498R11

BOTTOM ASSY, drop RH, 10X14 and 8X18

1шт.

2

604403R1

CLAMP

HINGE, drop bottom front, 5 used 10X10, 8X12, 10X8, 12X14, 8 used 14X10, 10X14, 10X12, 10 used 16X10, 20X8, 14X12

1шт.

3

604404R1

CLAMP

HINGE, drop bottom rear, 5 used 10X10, 8X12, 10X8, 12X14, 8 used 14X10, 10X14, 10X12, 10 used 16X10, 20X8, 14X12

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4-20 x 3/4 carriage, 1 per hinge

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 per bolt 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 per bolt 1/4"

1шт.

4

F282C

GEAR

feed shaft bevel, 1 used per fertilizer feed

1шт.

5

603462R1

TRUNNION

bevel gear, 1 used per fertilizer feed, except 10 used 8X18 Hillside

1шт.

6

603463R2

GEAR

bevel pinion 12T, 1 used per fertilizer feed, except 10 used 8X18 Hillside

1шт.

7

603465R2

GEAR

fertilizer driven 20T, 1 used 10X8, 10X10, 8X12, 2 used 20X8, 14X10, 16X10, 10X12, 14X12, 12X14, 10X14, and 8X8 Hillside

1шт.

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW, 5/16-18 x 3/8 hex-soc-hd cup, pt set, 1 used per gear

1шт.

8

603466R1

GEAR

fertilizer shaft spur 10T & 22T, 1 used 10X8, 10X10 and 8X12, 2 used 20X8, 14X10, 16X10, 10X12, 14X12, 12X14, 10X14 and 8X18

1шт.

9

603461R1

TRUNNION

spur gear, 1 per fertilizer gear

1шт.

10

605506R1

SPACER, 1-27/32 inch feed shaft spur gear, 1 used 14X10, 2 used 16X10

1шт.

10

603262R1

SPACER

2 inch feed shaft spur gear, 1 used 10X12, 14X12, 10X14 12X14 and 8X18 Hillside

1шт.

10

PO14686

SPACER, 1-3/4 inch feed shaft spur gear, 1 used 10X10 and 14X10

1шт.

10

875301R1

SPACER, 4.164 inch feed shaft spur gear, 1 used 8X12, 10X12 and 14X12

1шт.

10

606100R1

SPACER, 2-7/64 inch feedshaft spur gear, 1 used 10X8, 2 used 20X8

1шт.

10

605505R1

SPACER, 6-1/4 inch feed shaft spur gear, 1 used 12X14 and 8X18

1шт.

10

U17242

SPACER, 3/4 std pipe x 6-3/16, 1-10X14

1шт.

11

602554R11

DRIVE SPROCKET

WHEEL ASSY, star feed, includes 1-N62414, shear pin- 1 used per fertilizer feed

1шт.

N62414

PIN,3.96mm OD x 28mm L

shear, 1 used per wheel

1шт.

12

603451R2

PLATE

end bottom LH, 1 used 10X8, 10X10 and 8X12, 2 used 20X8, 14X10, 10X12, 16X10, 14X12, 12X14, 10X14 and 8X18

1шт.

13

603452R2

PLATE

end bottom RH, 1 used 10X8, 10X10 and 8X12, 2 used 20X8, 14X10, 10X12, 16X10, 14X12, 12X14, 10X14 and 8X18

1шт.

14

603453R2

PLATE

intermediate bottom, 2 used 10X12, 10X14 and 8X18, 4 used 12X14, 6 used 10X10, 8X12, 10X8, 14X10, 14X12, 8 used 16X10, 12 used 20X8

1шт.

15

603454R1

PLATE

intermediate bottom w/counter shaft hanger, 2 used 10X8, 10X10 and 8X12, 4 used 20X8, 14X10, 16X10, 10X12, 14X12, 12X14 10X14 and 8X18 Hillside

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4-20 x 5/8 hex-hd, 2 used per bottom plate

1шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8", 1 used per bottom plate

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3 per plate 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 3 per plate 1/4"

1шт.

16

605153R1

SHIM

SPACER, bottom plate, 16X10

14шт.

16

605450R1

SPACER

bottom plate, 1 used 10X10, 12 used 14X10

1шт.

16

604377R1

SPACER

bottom plate, 18 used 20X8

1шт.

16

594683R1

SPACER, bottom plate, 8 used 10X10

1шт.

16

608960R1

SPACER

bottom plate, 7 used 8X12, 8 used 10X12 and 12 used 14X12

1шт.

16

605451R1

SPACER, bottom plate, 8 used 10X14

1шт.

17

BAR, fertilizer feed shaft, 14X10, 59.38 inch in length to be cut from 92.25 inch from part number 816228C1, feed shaft

2шт.

17

BAR, fertilizer feed shaft, 16X10 and 14X12, 73.06 inch in length to be cut from 92.25 inch from part number 816228C1, feed shaft

2шт.

17

BAR, fertilizer feed shaft, 1 used 10X8 and 2 used 20X8, 75.12 inch in length to be cut from 92.25 inch from part number 816228C1, feed shaft

1шт.

17

BAR, fertilizer feed shaft, 10X10 and 8X12, 84.72 inch in length to be cut from 92.25 inch from part number 816228C1, feed shaft

1шт.

17

BAR, fertilizer feed shaft, 10X12, 49.06 inch in length to be cut from 92.25 inch from part number 816228C1, feed shaft

2шт.

17

BAR, fertilizer feed shaft, 10X14 and 8X18 Hillside, 57.25 inch in length to be cut from part number 816228C1, feed shaft

2шт.

17

BAR, fertilizer feed shaft, 12X14, 71.0 inch in length to be cut from 92.25 inch from part number 816228C1, feed shaft

2шт.

112050

PIN,4.76mm OD x 22.23mm L

3/16 x 7/8 sq-end-str, 1 used per feed shaft

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 1 used per feed shaft 3/16" x 1"

1шт.

N11791

WASHER

feedshaft special

1шт.

18

603572R2

TUBE,1.812" ID, 1.25" OD, 10.25" Length

combined delivery fertilizer, 1 used per fertilizer feed

1шт.

19

603593R1

BLOCK

fertilizer feed shut-off, 1 used per fertilizer feed

1шт.

20

603498R1

ANGLE

drop bottom lever, 1 per lever

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage, 10 used on 14X10, 20X8, 10X14, 10X10, 10X12 & 14X12, 18 used on 16X10

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 CRG, 4 used on 14X10, 10X14 & 10X12, 8 used on 20X8 & 14X12

1шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

21

603587R1

BAR

lever angle reinforcing, 1 used 10X8, 2 used 10X10 & 8X12 3 used 20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 12X14 and 8X18

1шт.

22

603500R1

LEVER

drop bottom short, 4 used 10X8, 10X10, 8X12, 5 used 10X14 10X12, 14X10, 8X18, 7 used 14X12, 12X14, 20X8 and 16X10

1шт.

23

603501R1

LEVER

drop bottom long, 1 used 10X8, 10X10, 8X12, 2 used 10X14 10X12, 14X10, 8X18, 14X12, 12X14, 20X8 and 16X10

1шт.

118059

RIVET,FH, 3/8" x 9/16"

3/8 x 9/16 f-hd small, 1 used per lever

1шт.

24

603469R1

BOLT,3/8" - 16 x 3.3", Steel

drop bottom lever short, 1 used per short lever

1шт.

25

603470R1

BOLT,3/8" - 16 x 5.1", Steel

drop bottom lever long, 1 used per long lever

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

26

603497R1

CATCH

drop bottom, 1 used per lever

1шт.

Выбрано товаров: 77
