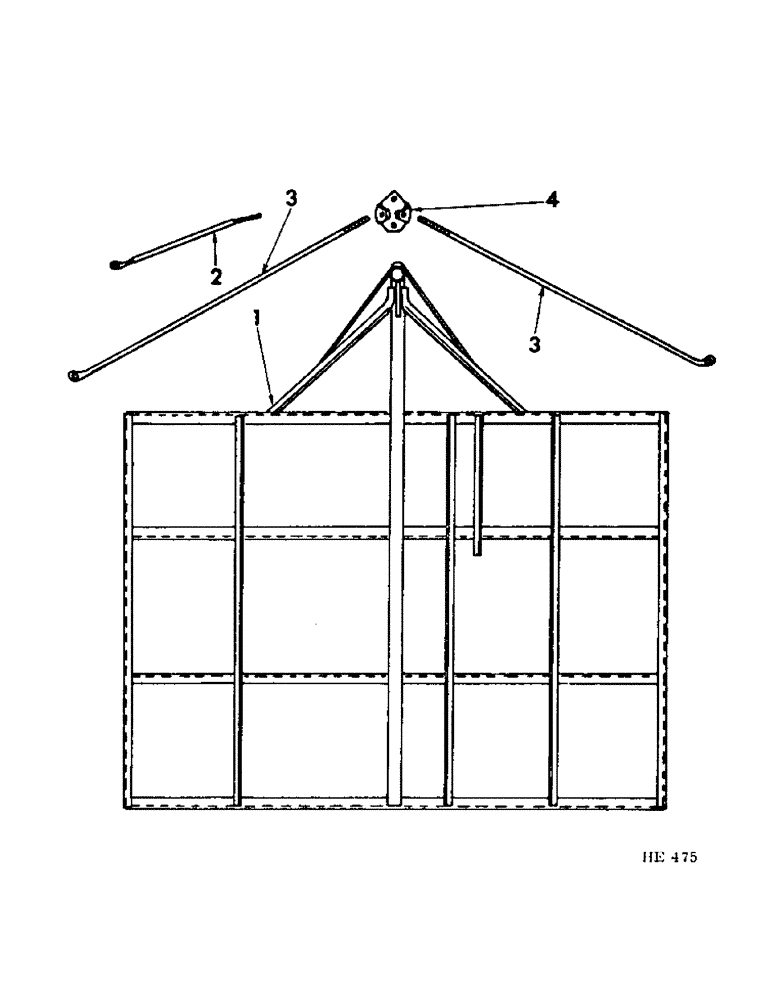

Запчасти Case IH 150 (02) - MAIN FRAME AND STABILIZER ROD, 10 X 8, 10 X 10 AND 8 X 12 MODELS

1

607500R93

FRAME ASSY, main, 10X8

1шт.

1

594627R92

FRAME ASSY, main, 10X10 & 8X12

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

2

594620R11

ROD ASSY, stabilizer rear, 10X10 and 8X12 models

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1/2-13 hex

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

609424R1

ROD, stabilizer, 10X8

2шт.

3

594619R1

ROD, stabilizer front, 10X10 and 8X12 models

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

608816R2

LUG, stabilizer rod mounting, 10X8, 10X10 and 8X12 models

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
