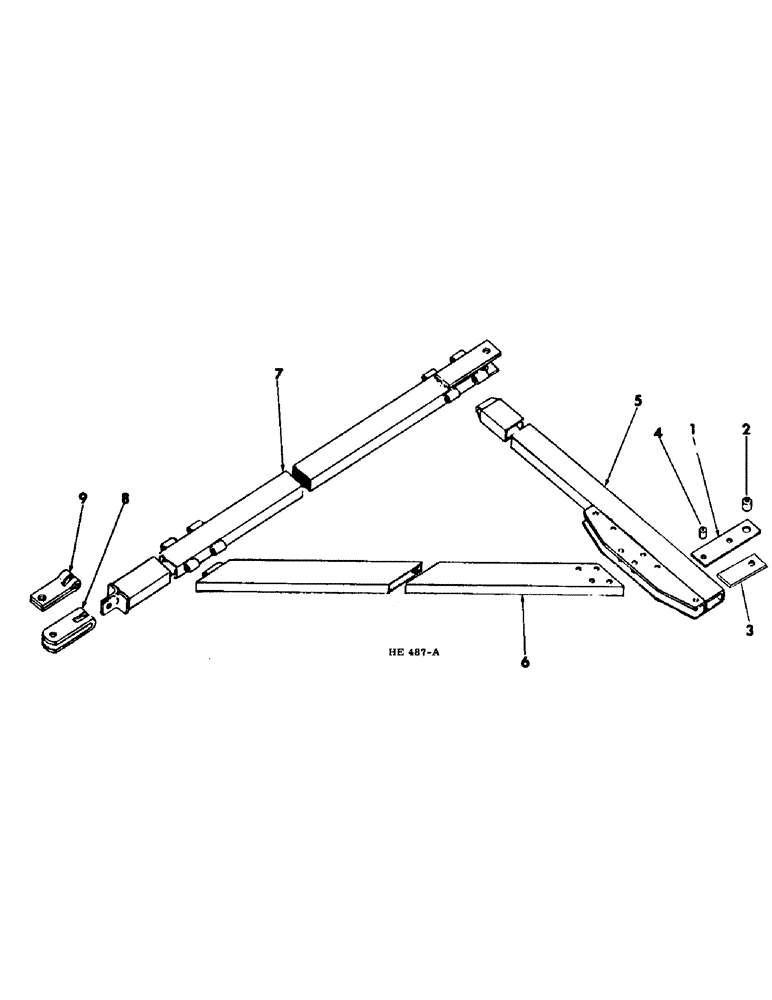

Запчасти Case IH 150 (33) - THREE DRILL TRACTOR HITCH, FOR 20 X 8, 14 X 10, 16 X 10, 14 X 12, 10 X 14 AND 8 X 18 HILLSIDE)
№
Артикул
Название
Примечание
Количество
1
609898R1
BAR
hitch tie outer
4шт.
722344R1
PIN, 1 x 3-3/4 std-hd-dld, for machines built prior to July 1976
2шт.
24003R1
HEADED PIN
PIN, 1 x 4-1/4 std-hd-dld-znd, machines built July 1976 & since
2шт.
520175R1
CLIP
PIN, quick-attachable cotter
2шт.
2
609899R1
SPACER, hitch tie bar outer rear, machines built prior to July 1976
2шт.
2
469072R1
SPACER, hitch tie bar outer RR, for machines built July 1976 & since
2шт.
3
819535C1
BAR, hitch tie outer spacer, for machines built July 1976 & since
2шт.
4
609900R1
SPACER, hitch tie bar outer front
2шт.
271731
SHAFT,Hex, 5/8" - 11 x 4", Gr 5
5/8-11 x 4 hex-hd
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
5
819476C1
BEAM ASSY, cross tow
2шт.
609908R1
PIN, 7/8 x 7-7/8 std-hd-dld
2шт.
103400
PIN,5/32" x 2"
1/4 x 1-1/2 cotter
2шт.
668752R1
WASHER
29/32 x 1-1/4 x 16 ga
2шт.
6
609906R11
BEAM ASSY, diagonal tow
2шт.
413-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5
5/8-11 x 3-1/4 hex-hd
8шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
609909R1
PIN, 7/8 x 8-3/8 std-hd-dld
2шт.
432-1624
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1 1/2"
2шт.
668752R1
WASHER
29/32 x 1-1/4 x 16 ga
2шт.
7
819477C1
BEAM ASSY, draw tow
1шт.
722344R1
PIN, 1 x 3-3/4 std-hd-dld, for machines built prior to July 1976
1шт.
24003R1
HEADED PIN
PIN, 1 x 4-1/4 std-hd-dld znd, machines built July 1976 & since
1шт.
520175R1
CLIP
PIN, quick-attachable cotter
1шт.
8
601910R3
CLEVIS
tractor, regular
1шт.
9
601909R1
CLEVIS
tractor, w/crawler tractor
1шт.
608605R1
BOLT,Hex, 1" - 8 x 4 1/2", Drilled
clevis 1-8 x 4-1/2 hex-hd-dld
1шт.
9849633
NUT,1"-8, G5
1шт.
103387
COTTER PIN,1/8" x 1 1/2"
Pin, Split (Cotter), 1/8" x 1 1/2"
1шт.
609836R1
WASHER
1-1/32 x 1-3/4 x 16 ga
2шт.
Выбрано товаров: 32
