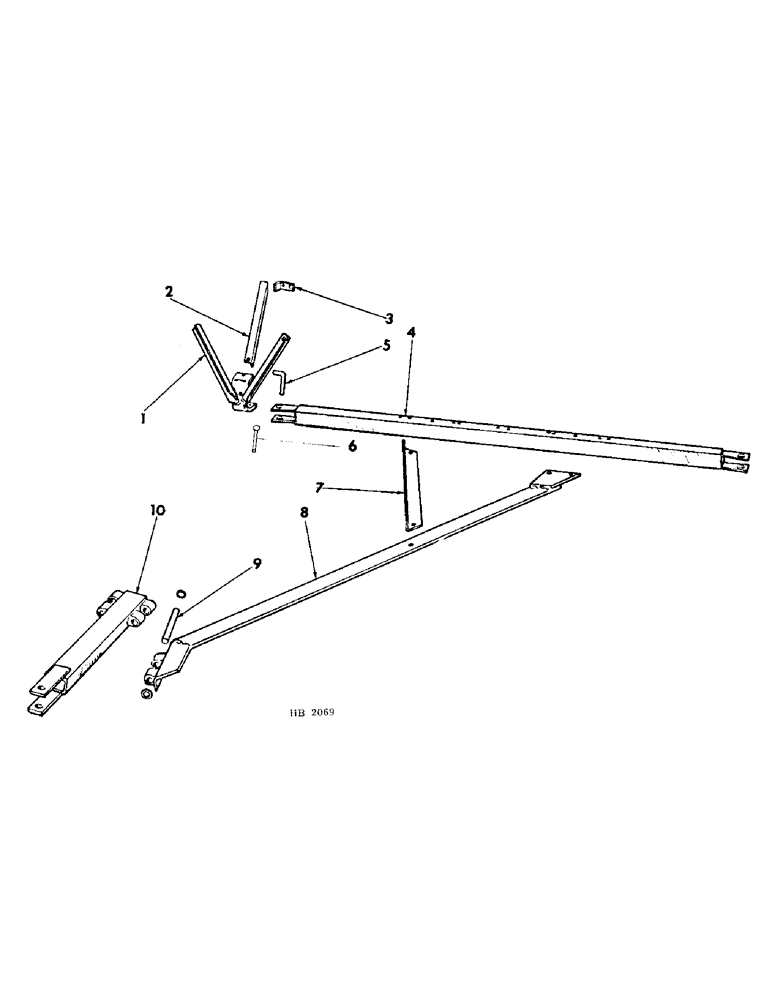

Запчасти Case IH 150 (32) - THREE DRILL TRACTOR HITCH FOR 10 X 8, 10 X 10 AND 8 X 12

1

607507R91

BRACKET

ASSY, drawbeam, for service on machines built prior to the 1965 season

3шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

1

593086R91

BRACKET ASSY, drawbeam, for service on machines built 1965 season and since

3шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

2

607510R1

ANGLE

drawbeam bracket draw, for service on machines built prior to the 1965 season

3шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

3шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

2

593088R1

ANGLE, drawbeam bracket draw, for service on machines built 1965 season and since

3шт.

NLS

NO LONGER SERVICED

5/8-11 x 1-1/2 hex-hd

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

3

607511R1

BRACKET

draw angle, for service on machines built prior to the 1965 season

3шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

3

593089R1

SUPPORT, draw angle, for service on machines built 1965 season and since

3шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

4

819540C1

BEAM ASSY, cross tow, 10X8

2шт.

4

819541C1

BEAM ASSY, cross tow, 10X10 and 8X12

1шт.

5

601288R1

ROD, draw beam lock, 1 per drill built prior to July 1976

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

6шт.

23071R1

WASHER

29/32 x 2 x 7 ga

3шт.

6

642292R1

HEADED PIN,7/8" x 4"

PIN, 7/8X4 std-hd-dld, 1 used for each drill, built July 1976 & since

1шт.

520175R1

CLIP

PIN, Q.A. cotter, 1 per pin

1шт.

23071R1

WASHER

29/32 x 2 x 7 ga, 1 per pin

1шт.

7

606414R1

ANGLE, cross brace

2шт.

8

606443R92

ARM ASSY, draw LH, shown

1шт.

8

606444R92

ARM

ASSY, draw RH

1шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2-13 x 3-1/4 hex-hd, for machines built July 1976 & since

2шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 x 4 hex-hd, for machines built prior to July 1976

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

20601R1

WASHER

flat

4шт.

9

606448R1

PIN, hinge

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga

4шт.

NLS

NO LONGER SERVICED

PIN, 3/16 x 1-3/8 cotter

4шт.

10

819496C1

BEAM

ASSY, draw

1шт.
