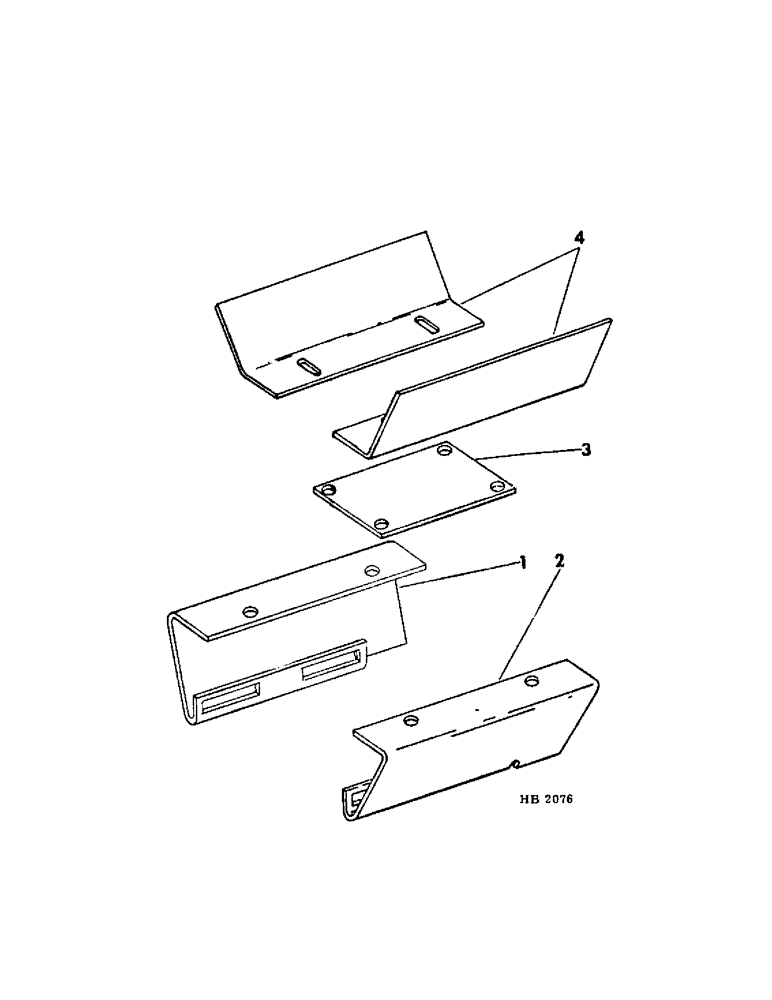

Запчасти Case IH 150 (31[1]) - DIRT DEFLECTOR, BUILT 1975 SEASON AND SINCE

1

819265C1

DEFLECTOR

dirt front LH

8шт.

2

819266C1

DEFLECTOR

dirt front RH

8шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

16шт.

24764R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex lock

16шт.

20803R1

WASHER

.406 x 1.000 x .105

32шт.

469668R1

WASHER

.406 x .750 x .054

32шт.

3

819268C1

BAR

deflector tie

8шт.

4

819267C1

DEFLECTOR

dirt rear

16шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd

32шт.

120377

NUT,3/8" - 16, Gr 5

32шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

32шт.

469668R1

WASHER

.406 X .750 X .054

32шт.
