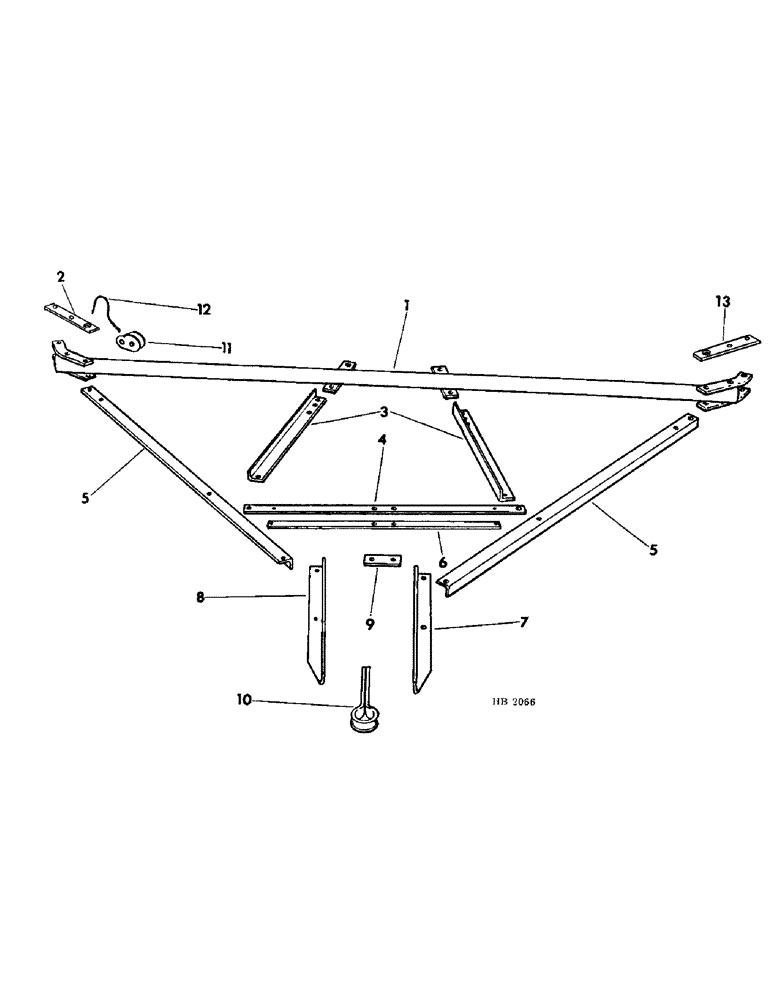

Запчасти Case IH 150 (30) - TWO DRILL TRACTOR HITCH, FOR 20X8, 14X10, 10X12, 14X12, 10X14, 12X14, 16X10 AND 8X18 HILLSIDE

1

600909R92

BEAM ASSY, draw, 14X10, 10X14 & 8X18

1шт.

1

600908R91

BEAM ASSY, draw, 20X8, 16X10, 14X12 and 12X14

1шт.

1

601878R91

BEAM ASSY, draw, 10X12

1шт.

P13789

AXLE PIN

PIN, 3/4 x 5-1/4 std-hd-dld, 2 per beam

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , 2 per beam 1/4" x 1 1/2"

1шт.

2

601876R1

BAR, hitch extension, 10X12

4шт.

3

600906R1

ANGLE, cross, 14X10, 10X14 & 8X18, 37 in

2шт.

3

600905R1

ANGLE, cross, 20X8, 16X10, 14X12 and 12X14, 46 in

2шт.

3

601865R1

ANGLE, cross, 10X12, 29 in

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

5/8-11 x 4-1/2 hex-hd, 4 per angle

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex, 1 per bolt

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 1 per bolt 5/8"

1шт.

4

N62715

BAR, cross, all sizes

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8-11 x 1-3/4 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

N62708

ANGLE, side brace, 14X10, 10X14 and 8X18 hillside, 81 in

2шт.

5

N62707

ANGLE, side brace, 20X8, 16X10, 14X12 and 12X14, 98 in

2шт.

5

601874R1

ANGLE, side brace, 10X12, 65 in

2шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

5/8-11 x 5 hex-hd, 20X8, 14X10, 16X10, 14X12, 10X14, 12X14 and 8X18 hillside

4шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8-11 x 6 hex-hd, 10X12

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex, 1 per angle

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 1 per angle 5/8"

1шт.

6

N62711

ANGLE, cross bar reinforcing, all

1шт.

NLS

NO LONGER SERVICED

3/8 x 1 rd-hd

2шт.

7

N62705

ANGLE, draw RH, all sizes

1шт.

8

N62706

ANGLE, draw LH, all sizes

1шт.

NLS

NO LONGER SERVICED

BOLT, 5/8-11 x 1-3/4 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

N62718

BAR, tie, all sizes

1шт.

10

NA42030

EYE, draw, all sizes

1шт.

22271R1

RIVET, 1/2 x 2-3/8 rd-hd

3шт.

11

819043C91

PULLEY

ASSY, power lift trip rope

4шт.

108652

GIFTS, VACUUM FLASK

PIN, 5/16 x 1-1/4 cot.

4шт.

12

ROPE, 5/16 x 30 ft power lift, Dealer to purchase locally

1шт.

13

599754R1

BAR, hitch clevis strap, 8X18

4шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8-11 x 6 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

932382R1

PIN, 3/4 x 5-3/4 std-hd-dld

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.
