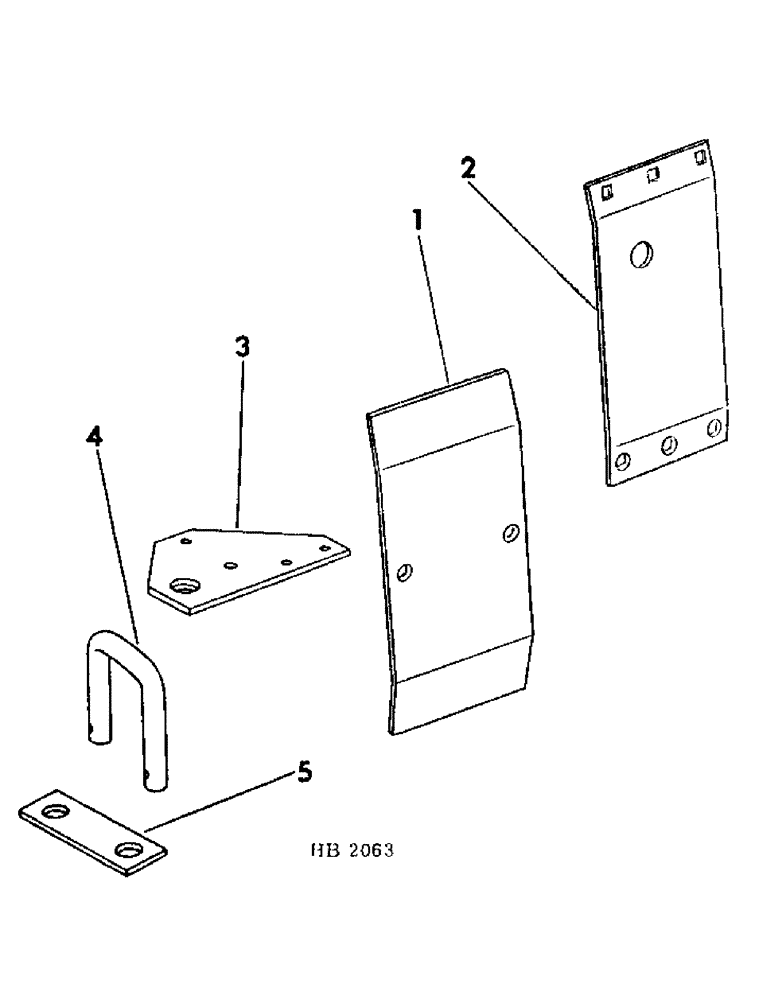

Запчасти Case IH 150 (29) - BUMPER PLATE ATTACHMENT FOR 10 X 8 AND 20 X 8 DRILLS

1

NA62723

PLATE

end angle bumper

2шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 no 3 plow

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

606110R1

PLATE, hopper bumper LH

1шт.

2

606111R1

PLATE, hopper bumper RH, shown

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

6шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 no 3 plow

6шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

3

604261R91

PLATE ASSY, connecting lh

1шт.

3

604262R91

PLATE ASSY, connecting rh, shown

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

6шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga

2шт.

4

N62689

ROD

connecting

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

5

N62730

BAR, connecting rod

1шт.
