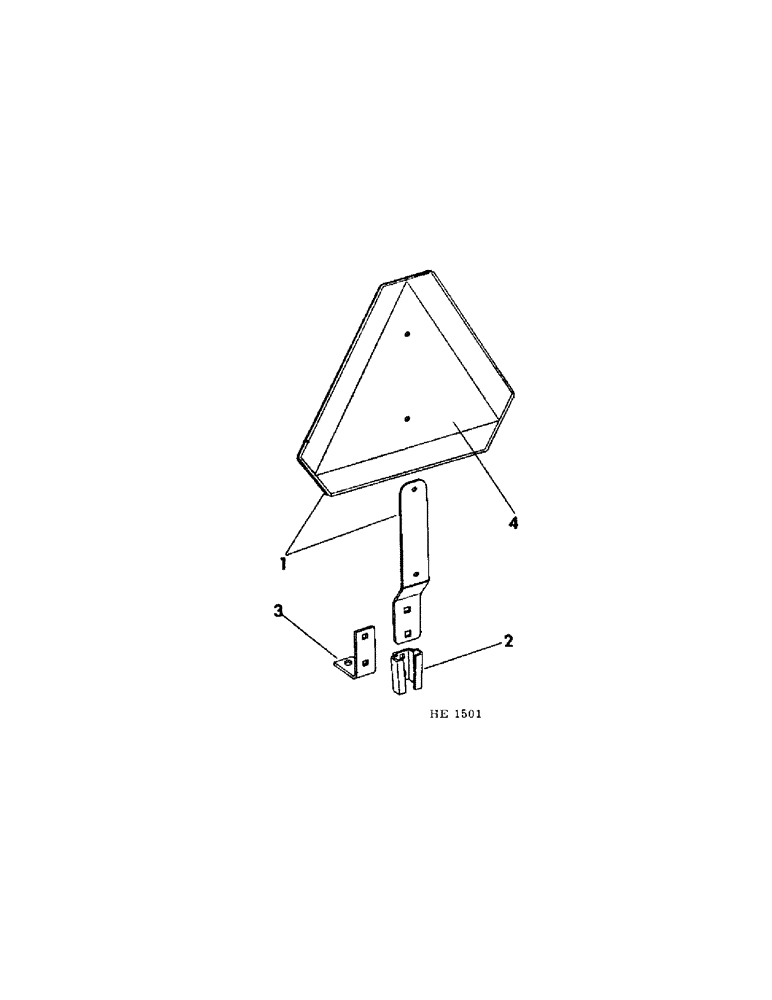

Запчасти Case IH 150 (27[1]) - SLOW MOVING VEHICLE EMBLEM

1

407218R1

PACKAGE

S.M.V. emblem, aluminum, Includes 1-398976R1, bracket, Opt W/407220R1, package

1шт.

1

407220R1

PRODUCT GRAPHIC

PACKAGE, S.M.V. emblem, steel, Includes 1-398976R1, bracket, Opt W/407218R1, package

1шт.

2

398976R1

BRACKET

SMV emblem mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

611344R1

WASHER

.344 x .875 x .056

2шт.

3

811324C1

SUPPORT

slow moving vehicle emblem

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

603901R1

WASHER

tapered

1шт.

4

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

PACKAGE, slow moving vehicle emblem film kit service

1шт.
