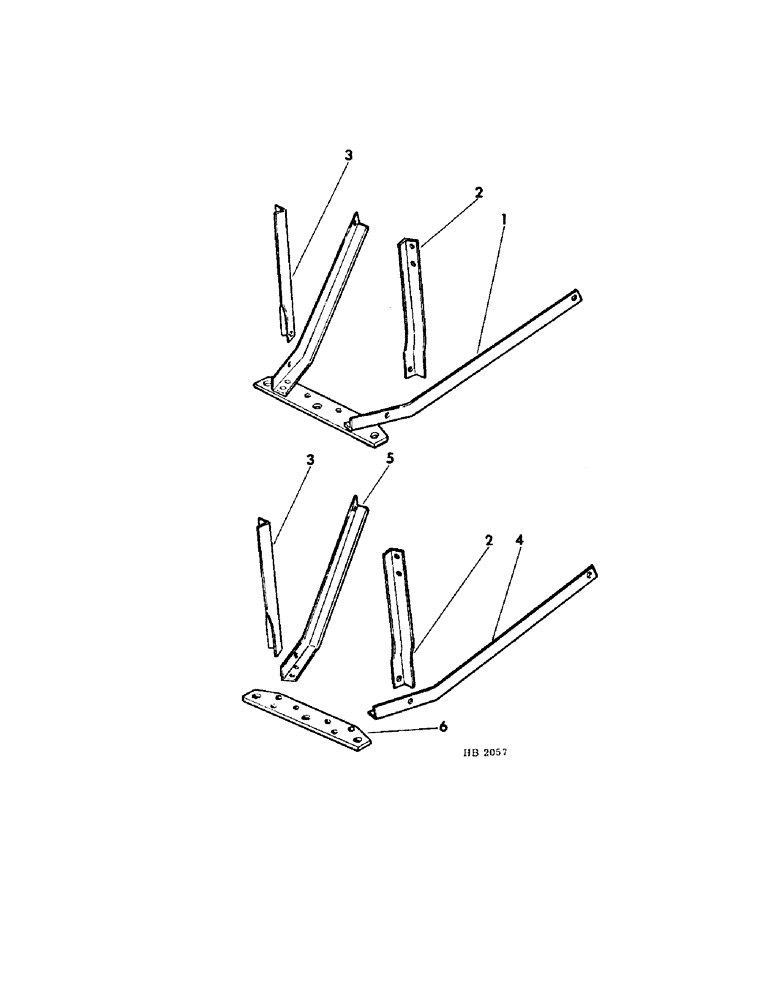

Запчасти Case IH 150 (26) - BASIC HITCH, 20 X 8, 14 X 10, 16 X 10, 10 X 12, 12 X 14, 14 X 12, 10 X 14, AND 8 X 18

1

606372R91

ANGLE ASSY, hitch, 1962 and since

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

2

605388R1

ANGLE, hitch side brace LH

1шт.

3

605389R1

ANGLE, hitch side brace RH

1шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16-14 x 1 hex-hd, 2 per angle

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex lock, 1 per bolt

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

4

605386R1

ANGLE, hitch side lh, Serial Range: 1959-1962

1шт.

5

605387R1

ANGLE, hitch side rh, Serial Range: 1959-1962

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8-11 x 1-3/4 hex-hd

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

604339R1

NUT, 5/8-11 two-way lock

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

6

600882R1

PLATE, hitch draw, Serial Range: 1959-1962

1шт.
