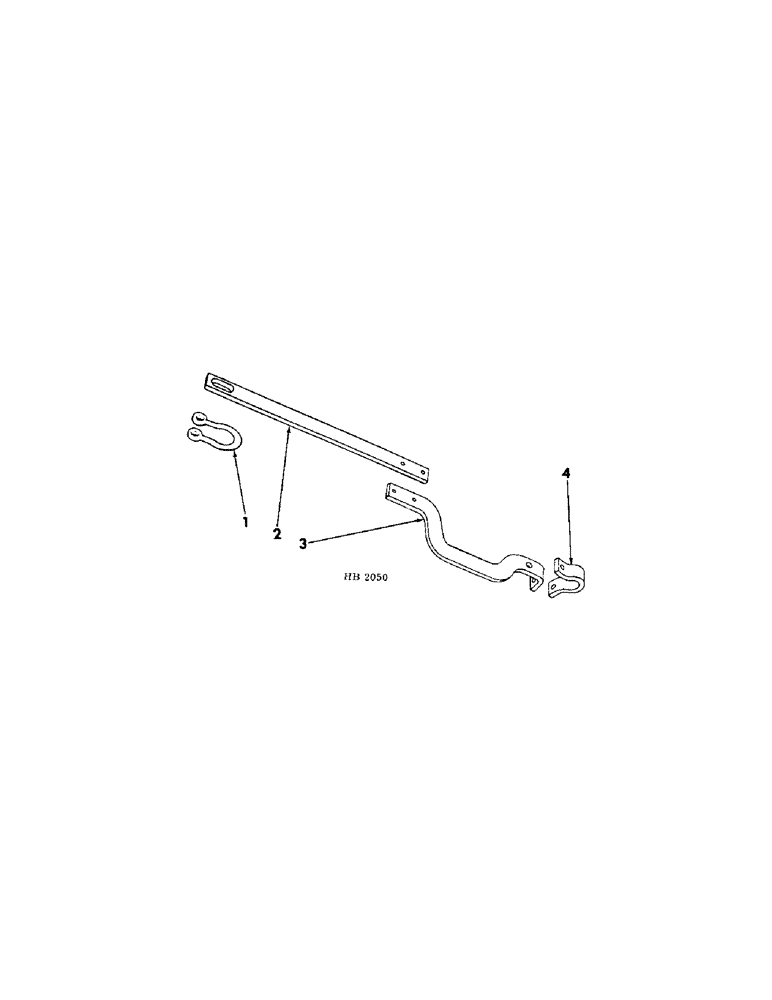

Запчасти Case IH 150 (26[1]) - SINGLE DRILL HITCH FOR USE WITH 10 X 8, 10 X 10 AND 8 X 12 SIZE DRILLS

1

PO13563

CLEVIS COUPLING

CLEVIS, hitch

1шт.

N42375

PIN

3/4 x 3-1/2 std-hd-dld

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

2

601277R1

BAR, hitch draw

1шт.

3

604421R1

SUPPORT, drawbar

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 x 2-1/4 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

604422R1

STRAP, drawbar support connecting

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.
