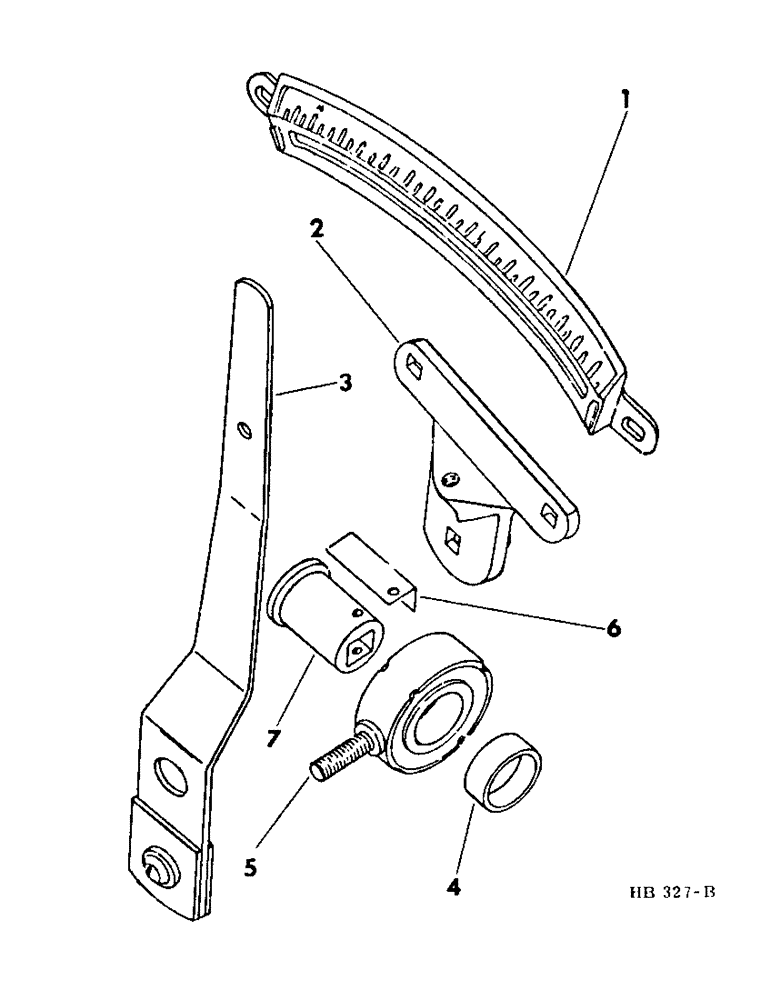

Запчасти Case IH 150 (25) - GRAIN FEED SHIFTER, ON MACHINES BUILT JUNE, 1985 AND SINCE

592490R91

PACKAGE, ball bearing grain feed shifter field conversion, to convert standard feed shifter, Built prior to 1965 season, to new bearing type, Consists of:

1шт.

609381R91

LEVER

ASSY

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

134238R1

WASHER

1шт.

609384R91

THRUST BEARING

ASSY

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

2шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

1шт.

609389R1

SPACER

1шт.

609388R1

SPACER

1шт.

1

603127R1

INDICATOR

grain feed

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

603128R1

BRACKET, shifter lever

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

19006R1

PLOW BOLT,#3, 5/16" - 18 x 3/4", Gr 2

BOLT, 5/16-18 x 3/4 no 3 plow

2шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

1шт.

7500032

BUSHING

NUT, 5/16-18 wing

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

3

609381R91

LEVER

ASSY, grain feed shifter

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 carriage

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16-18 hex jam

2шт.

134238R1

WASHER

.344 x .1060 x .054

1шт.

4

609389R1

SPACER

shifter bearing

1шт.

5

609384R91

THRUST BEARING

ASSY, feed shifter, includes 1-609388R1, spacer

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

469668R1

WASHER

.406 x .750 x .056

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

816573C1

SHIM

grain feed shifter lever

1шт.

7

609388R1

SPACER

bearing

1шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

1шт.
