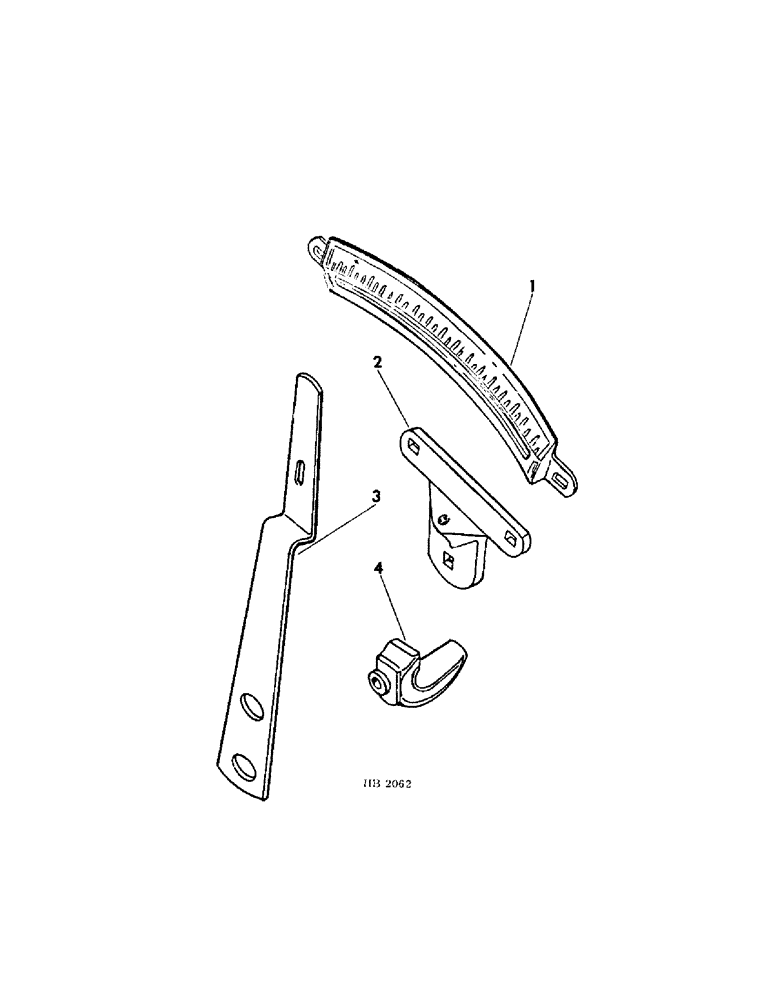

Запчасти Case IH 150 (24[1]) - GRAIN FEED SHIFTER, ON MACHINES BUILT PRIOR TO JUNE, 1965 SEASON

1

603127R1

INDICATOR

grain feed

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

603128R1

BRACKET, shifter lever

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

19006R1

PLOW BOLT,#3, 5/16" - 18 x 3/4", Gr 2

BOLT, 5/16-18 hex

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

3

603258R1

ARM

SHIFTER, grain feed

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

1шт.

106916

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1 wb-hd

1шт.

134238R1

WASHER

.344 x .1060 x .054

1шт.

120376

NUT,5/16"-18, G5

1шт.

142745

NUT, WING

NUT, 5/16-18 wing

1шт.

4

602164R1

FORK, grain feed shifter

1шт.

14035R1

RIVET, 5/16 x 1-1/2 csk-hd

1шт.

20893R1

WASHER

11/32 x 1 x 11 ga

1шт.
