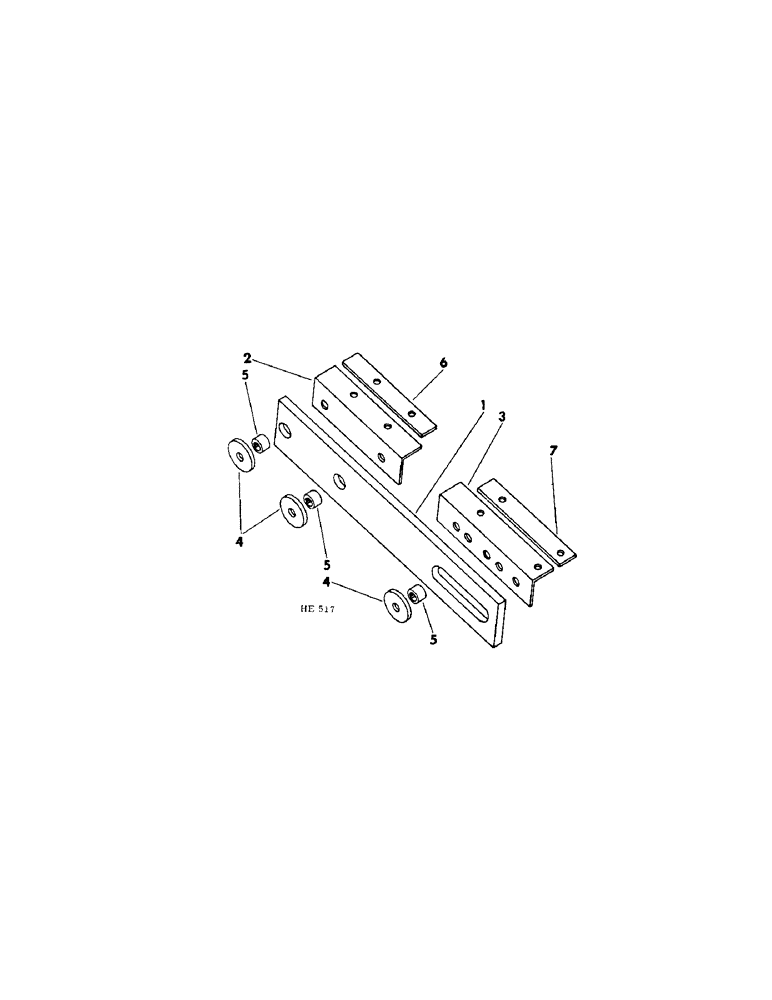

Запчасти Case IH 150 (21) - STABILIZER BAR ATTACHMENT FOR 10 X 10 AND 8 X 12 DRILLS

1

597171R1

BAR

stabilizer

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

3шт.

280954

NUT,3/4"-10, G5

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

2

597174R1

ANGLE, stabilizer LH

1шт.

3

597175R1

ANGLE

stabilizer RH

1шт.

4

597176R1

WASHER

spacer

3шт.

5

597170R1

SPACER

stabilizer bar roller

3шт.

6

597172R1

BAR, spacer LH

1шт.

7

597173R1

BAR

spacer RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.
