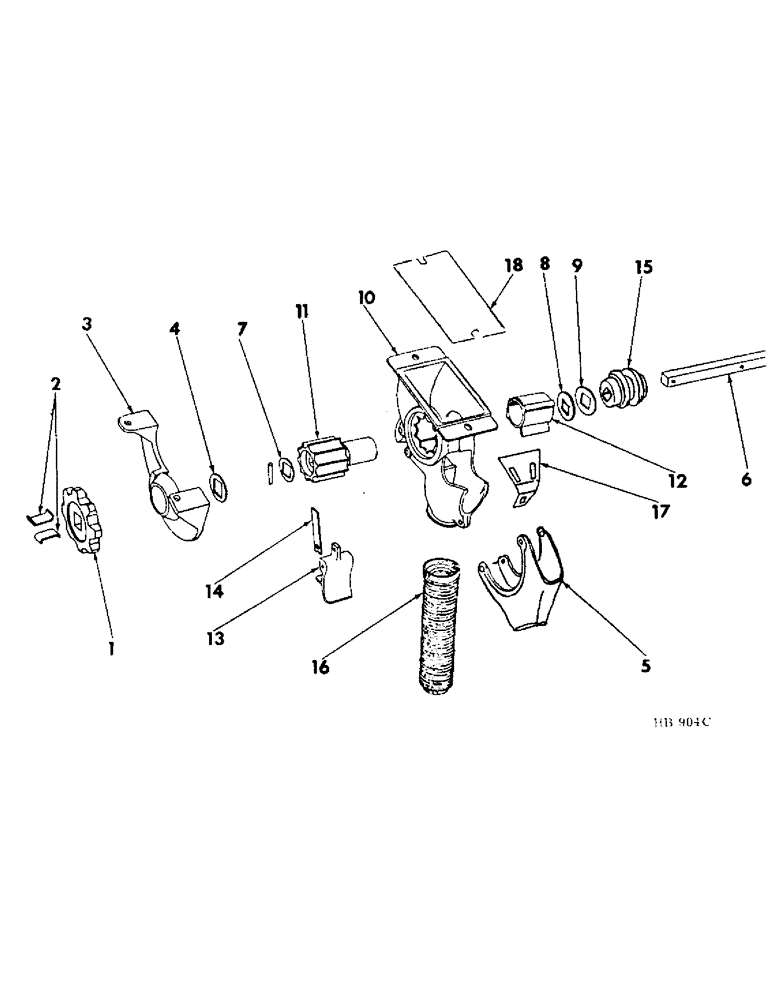

Запчасти Case IH 150 (20) - GRAIN FEEDSHAFT AND FEED CUP

1

81032C1

SPROCKET ASSY.

SPROCKET, grain feedshaft drive 8T, 1 used 10X8, 10X10, 8X12, 2 used 20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 12X14 and 8X18 ( replaced N1466 )

1шт.

2

N11792

CLIP

sprocket retaining, 2 used per drive sprocket

1шт.

3

603119R2

HANGER

grain sprocket, 1 used per grain sprocket

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

4

N11791

WASHER

sprocket retaining, 1 per sprocket hanger

1шт.

5

815805C91

CUP

PACKAGE ASSY, grain seed viewing cup, Not serviced separately Includes 2-112007R1, pin, 24 viewing cups to a package, Order on machine order form

1шт.

6

606065R1

BAR, feed shaft 1-10X8, 2-20X8

1шт.

6

594622R1

BAR, feed shaft, 10X10

1шт.

6

605312R1

BAR, feed shaft, 14X10

2шт.

6

605310R1

BAR, feed shaft, 16X10

2шт.

6

594621R1

BAR, feed shaft, 8X12

1шт.

6

608927R1

BAR, feed shaft, 10X12

2шт.

6

608928R1

BAR, feed shaft, 14X12

2шт.

6

605311R1

BAR, feed shaft, 12X14

1шт.

6

605309R1

BAR, feed shaft, 10X14 and 8X18

2шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), , 1 per cup 3/16" x 1 1/8"

1шт.

7

603231R1

SPRING WASHER,16.67mm ID x 30.2mm OD x 0.71mm Thk

feed cup spg, 1 per feed cup

1шт.

8

N11720

WASHER

21/32 square hole x 1-1/2 x 12 ga special, 1 per feed cup

1шт.

9

602106R1

SQ HOLE WASHER

21/32 square hole x 1-11/64 x 32 ga plain

1шт.

10

603816R91

CUP

ASSY, fluted feed, Includes 1-603112R1, block, 1-603295R91, cup assy and 1-603111R1, roll, 8 used 8X12, 10 used 10X10, 10X12 10X14 and 8X18, 14 used 14X10 and 14X12, 16 used 16X10, and 20 used 20X8

1шт.

10

603295R91

CUP

ASSY, fluted feed, 1 per feed cup

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2 used per feed cup Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

1шт.

11

603111R1

ROLLER

ROLL, fluted, 1 used per feed cup

1шт.

603134R1

PIN,4.76mm OD x 29.37mm L

feed cup, 1 per feed cup

1шт.

12

603112R1

BLOCK

shut-off, 1 used per feed cup

1шт.

13

603108R11

BOTTOM

ASSY, feed cup dump, 1 used per feed cup, includes 1-603178R1, latch and 1-106883, rivet

1шт.

112007R1

PIN

3/16 x 3 cotter, 1 per bottom

1шт.

14

603178R1

LATCH

dump bottom, 1 used per bottom

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

15

NA1340

SPOOL, grain indicator shifter, for use on machines built 1960 season to 1965 season

1шт.

104073

RIVET

3/16 x 1-1/4 b-hd rivet

1шт.

16

606147R2

TUBE,1.25" ID, 1.906" OD, 51, 1.125" Length

grain, 1 used per feedcup

1шт.

17

606034R1

GUARD

WINDSHIELD, grain feed, 1 per feedcup, except 12 used on 8X18

1шт.

18

603677R2

PLATE

BLOCK, grain feed shut-off, 1 used per feedcup assy

1шт.
