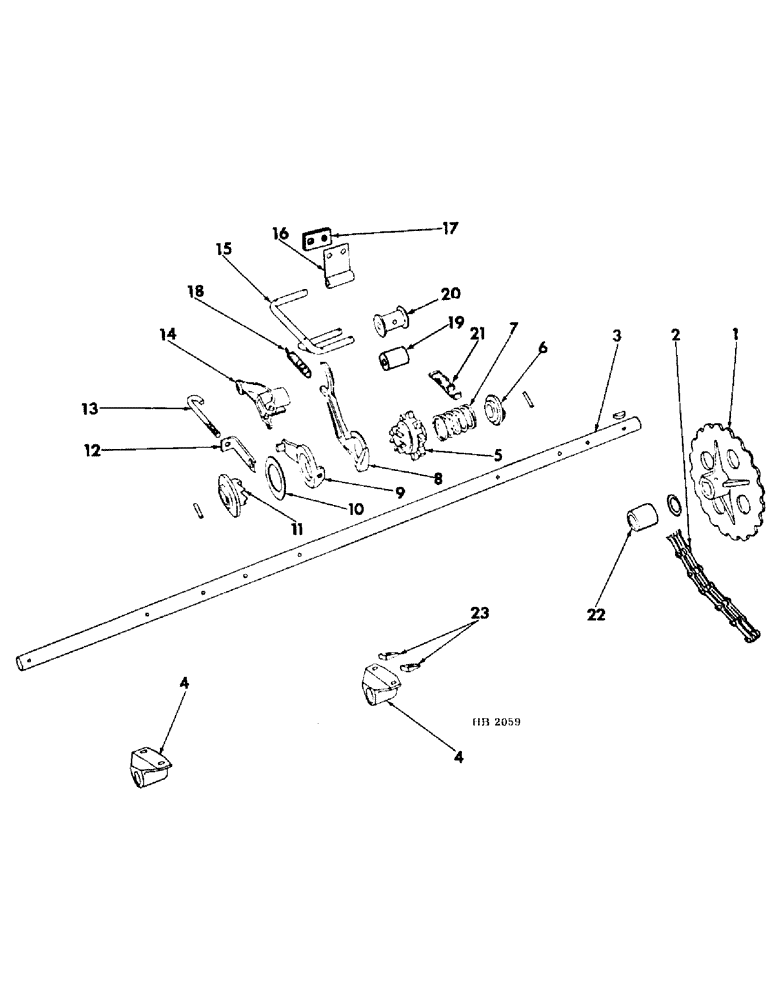

Запчасти Case IH 150 (18) - MAIN DRIVE PARTS

1

603904R1

SPROCKET ASSY.

SPROCKET, main drive 25T

1шт.

616254R1

LOCK PIN,3/8" x 1 5/8", Slotted

Pin, 3/8" x 1 5/8", Slotted

2шт.

2

CHAIN, main drive 1-1/4 extended pitch agricultural type, for service use 105 links from 10 foot roll 569089R91, and add 1-456929R91, offset link & 1-587372R91 connecting link

1шт.

3

594618R1

SHAFT

drive counter, 10X10 & 8X12

1шт.

3

605303R1

SHAFT, drive counter, 14X10

1шт.

3

599743R1

SHAFT

drive counter, 8X18

1шт.

3

605304R1

SHAFT

drive counter, 10X14

1шт.

3

605306R1

SHAFT

drive counter, 16X10

1шт.

3

608925R1

SHAFT, drive counter, 10X12

1шт.

3

606064R2

SHAFT, drive counter, 20X8

1шт.

3

608926R1

SHAFT, drive counter, 14X12

1шт.

3

607485R1

SHAFT, drive counter, 10X8

1шт.

3

605305R1

SHAFT, drive counter, 12X14

1шт.

21742R1

WASHER

1-1/32 x 1-1/2 x 22 ga

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

4

603903R1

BEARING CARRIER

counter shaft, 3 used 10X10 & 8X12, 4 used 10X8, 5 used 20X8, 14X10, 16X10, 10X12, 14x12, 10X14 and 8X18

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-90 deg lub, 1 per brg

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hfx-hd, 2 used per bearing

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

5

603115R1

DRIVE SPROCKET

SPROCKET, grain drive 8T, 1 used 10X8, 10X10 & 8X12, 2 used 20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 12X14 and 8X18

1шт.

6

603117R1

COLLAR CLAMP

COLLAR, clutch spring, 1 per grain sprocket

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2 per collar 1/4" x 1 1/4", Slotted

1шт.

7

35AC

SPRING

drive clutch, 1 used per grain sprocket

1шт.

8

603131R1

PLATE ASSY.

PLATE, clutch cam, 1 used per grain sprocket

1шт.

9

603133R1

CAM

clutch throwout, 1 used per grain sprocket

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-65 deg lub, 1 per cam

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga, 1 per cam

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , 1 per cam 1/8" x 1"

1шт.

10

603265R1

WASHER

2 x 3-1/8 x 14 ga clutch, 1 used per grain sprocket

1шт.

11

603116R1

COLLAR CLAMP

COLLAR, grain clutch 8T, 1 used per grain sprocket

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1 per collar 1/4" x 1 1/4", Slotted

1шт.

12

603181R1

SUPPORT

grain drive clutch rod, 1 used per grain sprocket

1шт.

13

603151R1

ROD

clutch shifter, 1 used per grain sprocket

1шт.

120377

NUT,3/8" - 16, Gr 5

2 used per rod 3/8"-16, G5

1шт.

14

603132R1

ARMATURE

ARM, clutch shifter rod, 1 used per grain sprocket

1шт.

18676R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2

BOLT, 5/16-18 x 2-1/4 carriage

1шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

15

603152R11

ARM, chain tightener, for use on machines built 1959 season to end of 1961 season, 1 used 10X8, 10X10, 8X12, 2 used 20X8, 14X10 16X10, 10X12, 14X12, 10X14, 12X14 and 8X18

1шт.

15

606253R91

ARM

chain tightener, for use on machines built 1962 season & since, 1 used 10X8, 10X10, 8X12, 2 used 20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 12X14 and 8X18

1шт.

178373R1

WASHER

.531 x 1.000 x .054, 6 used per tightener arm

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , 1 per washer 1/8" x 1"

1шт.

16

603962R1

BRACKET

chain tightener arm, 1 used per tightener arm

1шт.

17

606373R1

PLATE

BAR, arm bracket backing, for use on machines built 1963 and since, 1 used per bracket

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd, 2 used per arm bracket

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

18

4A

SPRING

chain tightener arm, 1 used per tightener arm

1шт.

19

603118R1

ROLLER

chain tightener large, for service on machines built prior to the 1975 season, Order 1-81938201, spacer and 2-22042R1 washers, 1 used per tightener arm

1шт.

19

819382C1

SPACER

chain tightener large, for use on machines built 1975 season and since, 1 used per tightener arm

1шт.

22042R1

WASHER

.531 x 2.000 x .105, 2 per spacer

1шт.

20

3240A

ROLLER

chain tightener small, 1 used 10X8, 10X10, 8X12, 2 used 20X8, 14X10, 16X10, 10X12, 14X12, 10X14, 12X14 and 8X18

1шт.

21

CHAIN, grain drive, 1 per grain sprocket, for service order 40 links of no 32 roller chain from a 10 ft roll no CS32

1шт.

22

652405R1

SPACER,1" Pipe x 1 11/16"

drive sprocket, 8X18

1шт.

23

603901R1

WASHER

bearing tapered 2 used on 10X10, 8X12, 4 used on 20X8, 14X10, 16X10, 10X12, 14X12, 10X14 & 8X18

1шт.
