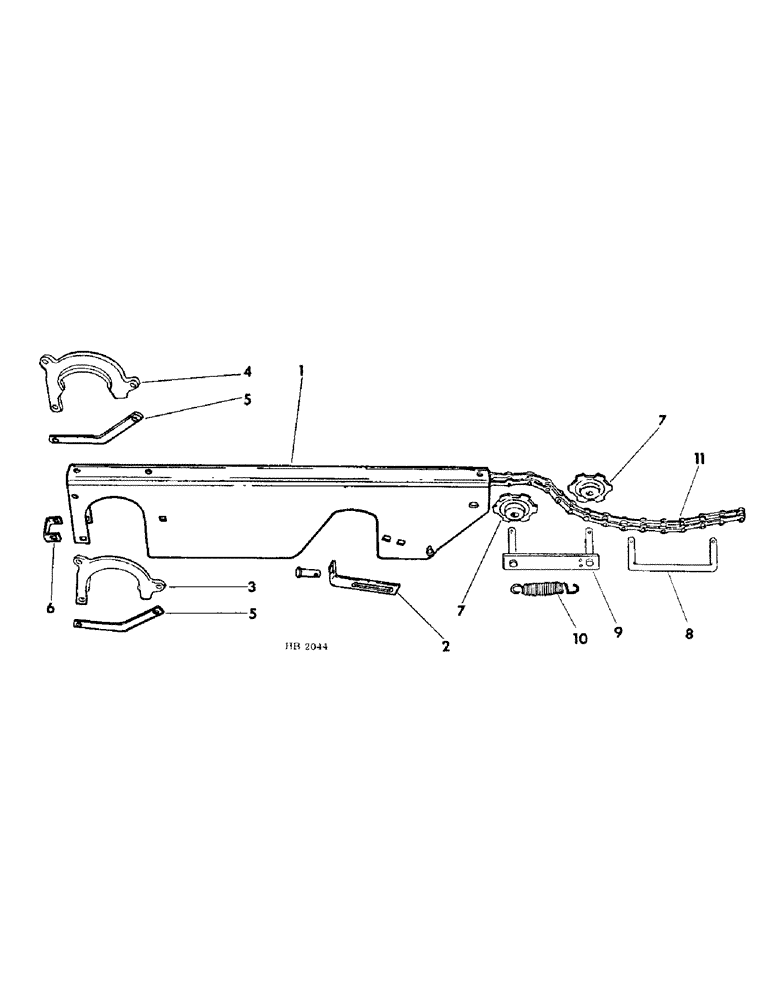

Запчасти Case IH 150 (17) - MAIN DRIVE CHAIN SHIELD, ON MACHINES BUILT 1965 AND SINCE

1

SHIELD, main drive chain, for service on machines built prior to October 1975, Order 1-819462C1-shield, 1-819455C1-bracket assy, & 2-819457C1-bushing

1шт.

1

819462C1

SHIELD

main drive chain, for machines built Oct 1975 & since

1шт.

2

599750R1

SUPPORT

chain shield, 8X18

1шт.

2

609391R2

SUPPORT

chain shield, not 8X18

1шт.

L1125

PIN, 3/8 x 1-3/16 std-hd, old

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

4шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

601225R1

SHIELD

BEARING, chain shield RH

1шт.

4

601226R1

SHIELD

BEARING, chain shield LH

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

2шт.

19576R1

BOLT,Short NK, 5/16"-18 x 7/8", G2, Full Thd

5/16-18 x 7/8 crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 hex ser flanged lock

6шт.

5

605979R1

BRACE

STRAP, chain shield

2шт.

6

601241R1

CHANNEL

CLIP, chain shield

1шт.

7

819499C1

SPROCKET ASSY.

SPROCKET ASSY, chain tightener 6T, for machines built prior to October 1975

2шт.

7

819457C1

SPROCKET

chain tightener 6T, for machines built Oct 1975 & since

2шт.

8

ROD, chain tightener, for machines built prior to October 1975, for service order 1-819455C1-bracket & 2-819457C1-sprocket

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga

6шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

5шт.

9

819455C1

BRACKET

ASSY, chain tightener, for machines built Oct 1975 & since

1шт.

21796R1

WASHER

.656 x 1.000 x .054

6шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

10

626206R1

SPRING

chain tightener rod

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

11

CHAIN, main drive 1-1/4 extended pitch agricultural type, for service use 105 links from 10 foot roll 569089R91, and add 1-456929R91, offset link & 1-587372R91 connecting link

1шт.
