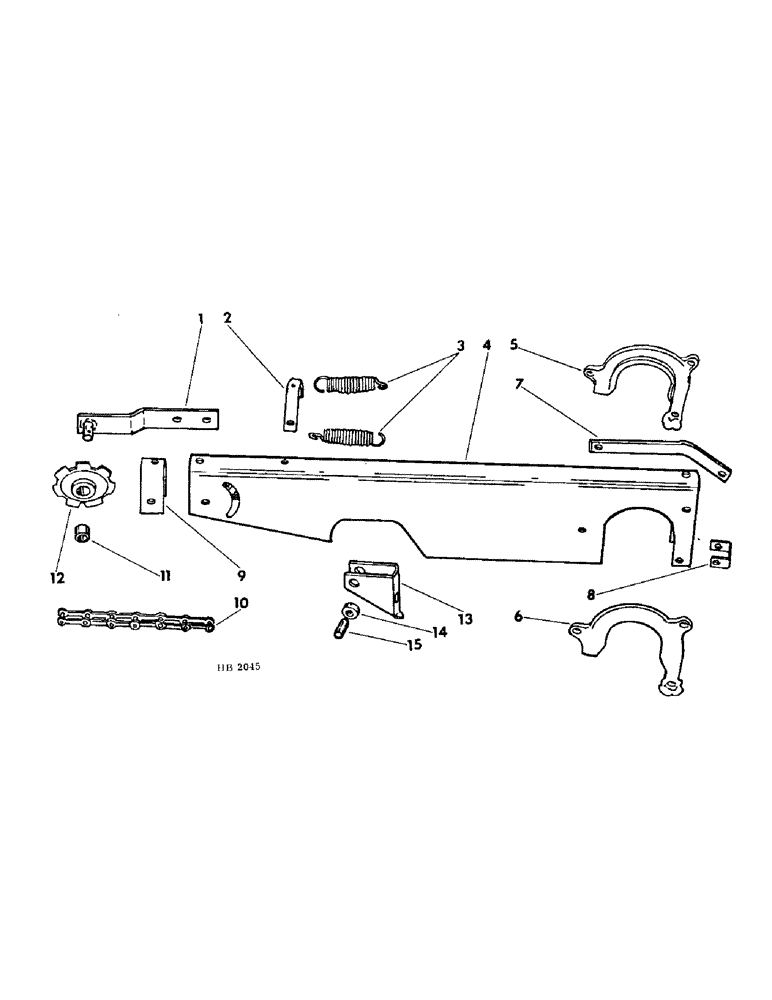

Запчасти Case IH 150 (16) - MAIN DRIVE CHAIN SHIELD, ON MACHINES BUILT PRIOR TO 1965

1

605328R11

ARM ASSY, chain tightener

1шт.

104183

RIVET, 5/16 x 1 90 deg c sk-hd

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 carriage

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

2

N62701

SADDLE, chain shield

1шт.

104082

RIVET,But Hd, 1/4" x 5/8"

1/4 x 5/8 small b-hd

1шт.

3

2427 -1

SPRING, chain shield ( replaced 2427 )

2шт.

108652

GIFTS, VACUUM FLASK

PIN, 5/16 x 1-1/4 cotter

1шт.

4

601266R2

SHIELD, main drive chain

1шт.

5

601225R1

SHIELD

BEARING, chain shield RH

1шт.

6

601226R1

SHIELD

BEARING, chain shield LH

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1 carriage

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 hex-hd

2шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

7

605979R1

BRACE

STRAP, chain shield

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 carriage

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

5/16-18 x 1 hex-hd

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

601241R1

CHANNEL

CLIP, chain shield

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 carriage

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

604397R1

STIFFENER, chain shield

1шт.

104181

RIVET

5/16 x 3/4 90 deg csk-hd

1шт.

10

CHAIN, 1-1/4 extended pitch agricultural type main drive, for service use 105 links from 10 foot roll 569089R91, and add 1, 456929R91, offset link & 1, 587372R91, connecting link

1шт.

11

604344R1

BUSHING

chain tightener

1шт.

12

604342R1

SPROCKET ASSY.

SPROCKET, 7T chain tightener

1шт.

13

606210R1

BRACKET, chain tightener

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 x 2-1/4 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

14

564242R1

SPACER

BUSHING, roller

1шт.

15

606211R1

ROLLER

chain tightener

1шт.
