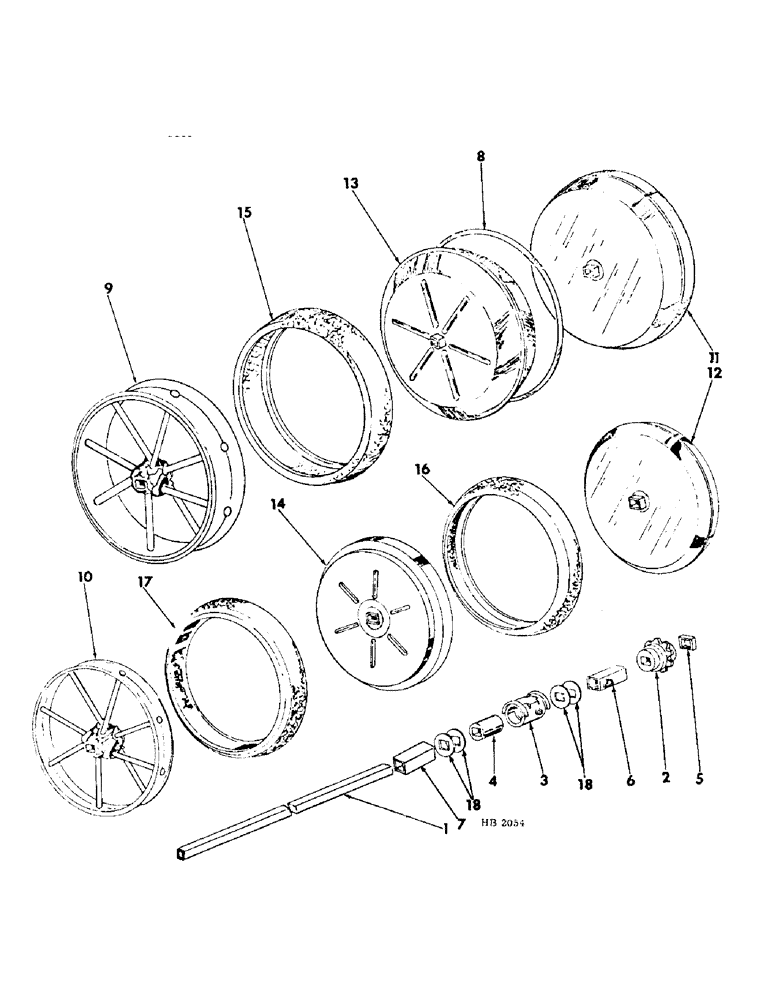

Запчасти Case IH 150 (12) - GANG AXLES AND PRESS WHEELS

1

606876R1

AXLE

BAR, gang axle, 20X8

1шт.

1

606877R1

AXLE

BAR, gang axle, 20X8

2шт.

1

594647R1

BAR, gang axle, 10X10

2шт.

1

603838R1

BAR, gang axle, 14X10

1шт.

1

603839R1

BAR, gang axle, 14X10

2шт.

1

605519R1

AXLE

BAR, gang axle, 16X10

1шт.

1

606876R1

AXLE

BAR, gang axle, 16X10

2шт.

1

608990R1

BAR, gang axle, 8X12

2шт.

1

608990R1

BAR, gang axle, 10X12 and 14X12

1шт.

1

608991R1

BAR, gang axle, 10X12

2шт.

1

608992R1

BAR, gang axle, 14X12

2шт.

1

603837R1

BAR, gang axle, 10X14

2шт.

1

606876R1

AXLE

BAR, gang axle, 10X14 and 12X14

1шт.

1

607523R1

BAR, gang axle, 10X8

2шт.

119202

PIN

3/8 x 2-1/4 cotter, 2 per bar

1шт.

2

603902R2

SPROCKET ASSY.

SPROCKET, 10T main drive

1шт.

3

603835R1

ROLLER ASSY.

BEARING, AXLE BAR, 4 used 10X8, 10X10 and 8X12, 6 used 10X14, 12X14, 14X10, 16X10, 10X12, 14X12 and 20X8

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , 1 per bearing 1/8"-27 x .66 lg

1шт.

4

603834R1

SPACER

TRUNNION, bearing, 1 used per bearing

1шт.

5

605520R1

SPACER

wheel, 16X10, 1.2 in

12шт.

5

594652R1

SPACER

wheel, 10X10, 1.4 in

4шт.

5

608993R1

TUBE

SPACER, wheel, 10X12 & 14X12, 1.9 in

12шт.

5

603842R1

SPACER, wheel, 10X14 & 12X14, 2.9 in

12шт.

5

594649R1

SPACER

wheel, 8X12, 2-3/8 in

4шт.

5

594653R1

SPACER

wheel, 10X10, 1.3 in

2шт.

5

605523R1

SPACER

wheel, 14X10, 1.4 in

2шт.

5

605522R1

SPACER

wheel, 10X14 & 12X14, 3.4 in

2шт.

5

608994R1

TUBE

SPACER, wheel, 10X12 & 14X12, 2.4 in

2шт.

6

605525R1

SPACER

wheel, 16X10, 6.1 in

6шт.

6

606875R1

SPACER

wheel, 20X8, 4.1 in

10шт.

6

594651R1

SPACER

wheel, 10X10, 5.3 in

3шт.

6

603841R1

SPACER

wheel, 14X10, 5.6 in

4шт.

6

608995R1

TUBE

SPACER, wheel, 8X12, 7.6 in

1шт.

6

608995R1

TUBE

SPACER, wheel, 14X12, 7.6 in

4шт.

6

605524R1

SPACER, wheel, 12X14, 9.6 in

2шт.

6

594648R1

SPACER

wheel, 8X12, 4.5 in

1шт.

7

605521R2

SPACER

wheel, 16X10, 1.7 in

2шт.

7

603840R2

SPACER

wheel, 14X10, .9 in

12шт.

7

606107R2

SPACER

wheel, 20X8, .7 in

12шт.

7

604399R2

SPACER

wheel, 10X8 & 20X8, .6 in

2шт.

7

594650R2

SPACER

wheel, 8X12, .5 in

1шт.

7

606108R2

SPACER

wheel, 20X8, 1.2 in

2шт.

8

606164R1

REINFORCEMENT

press wheel, service reinforcement to be welded over V of 603846R91, press wheel, 1 per wheel

1шт.

9

603829R91

WHEEL ASSY, 4 inch open spoke concave rim for use w/semi-pneumatic tire, for use on machines built prior to December 1975

1шт.

10

604042R91

WHEEL

ASSY, 2-1/4 inch x 20 open spoke concave rim for use w/semi-pneumatic tire, for use on machines built prior to December 1975

1шт.

11

605081R91

WHEEL

ASSY, 4X20 shielded convex rounded rim

1шт.

12

605082R91

WHEEL

ASSY, 2-1/4 x 20 shielded convex rounded rim

1шт.

13

603846R91

WHEEL

ASSY, 4X20 shielded convex V rim

1шт.

14

816189C2

WHEEL,501.65mm OD x 82.55mm W

ASSY, 3X20 shielded press, for use w/oval tire

1шт.

15

601216R4

TYRE/TIRE

TIRE, 4X20 semi-pneumatic, for use w/603829R91, wheel, for use on machines built prior to December 1975

1шт.

16

816195C2

TYRE/TIRE

TIRE, 3X20 press wheel oval, for use w/81618902, wheel

1шт.

17

604253R2

TYRE/TIRE

TIRE, 2-1/4 x 20 semi-pneumatic, for use w/604042R91, wheel, for use on machines built prior to December 1975

1шт.

18

603843R1

SQ HOLE WASHER,32.54mm ID x 69.85mm OD x 3.05mm Thk

1-9/32 sq hole x 2-3/4 x 11 ga pl

1шт.
