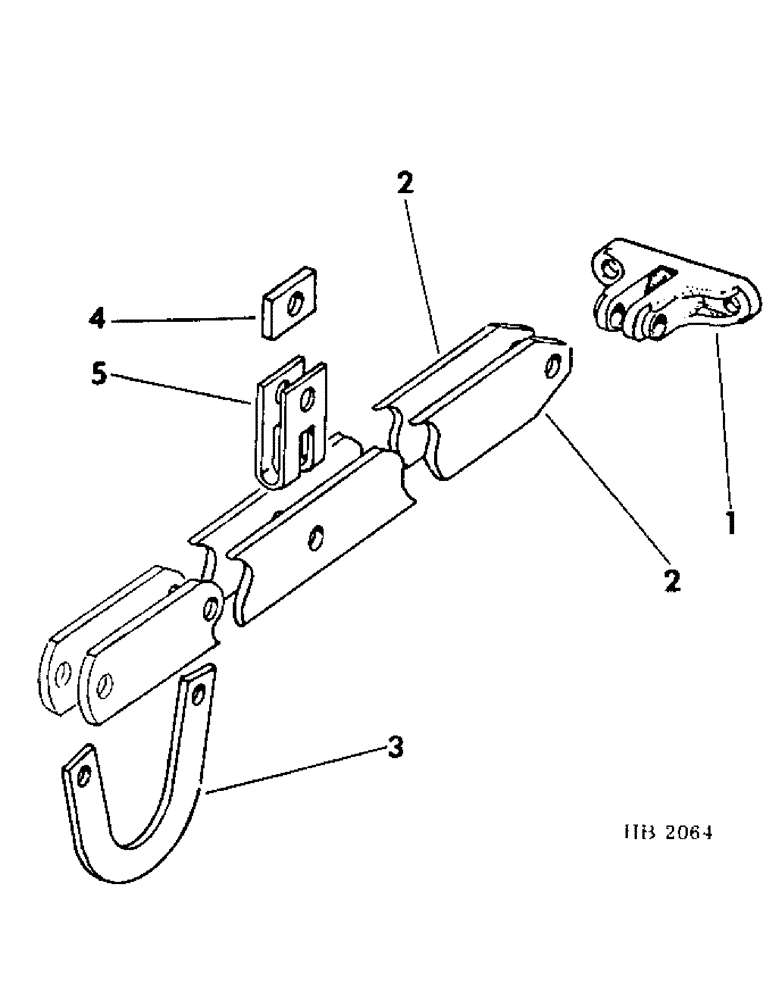

Запчасти Case IH 150 (11) - FRAME GANG DRAWBARS

1

N2482

BRACKET

gang drawbar, 4 used 10X8, 10X10, 8X12 and 8X18, 6 used 20X8, 14X10, 16X10, 10X12, 14X12 and 10X14

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd, 2 used per bracket

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

2

605319R1

BAR

DRAWBAR, gang, 8 used 10X8, 10X10 and 8X12, 12 used 20X8, 14X10, 16X10, 10X12, 14X12, 10X14 and 12X14

1шт.

2

599737R1

DRAWBAR, gang, 8X18 hillside

8шт.

H2808

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2 std-hd old, 1 used per two drawbars

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 1 user per pin 3/16" x 1"

1шт.

3

604322R1

BRACE

HANGER, gang drawbar, 1 used per 2 drawbars

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16-14 x 1-1/2 hex-hd, 2 used per hanger

1шт.

271501

SOCKET

NUT, 7/16-14 hex, 1 per bolt

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 1 per bolt 7/16"

1шт.

4

N42468

BAR, drawbar clevis filler, 1 used per clevis

1шт.

5

N62606

CLEVIS

gang drawbar, 4 used 10X8, 10X10, 8X12 and 8X18 hillside, 6 used 20X8, 14x10, 16X10, 10X12, 14X12 and 10X14

1шт.

45-728

RIVET,But Hd, 7/16" x 1 3/4"

7/16 x 1-3/4 small b-hd, 1 used per clevis

1шт.

PG141

PIN

1/2 x 2 std-hd old, 1 used per clevis

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga, 1 used per clevis

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 1 per clevis 3/16" x 1"

1шт.
