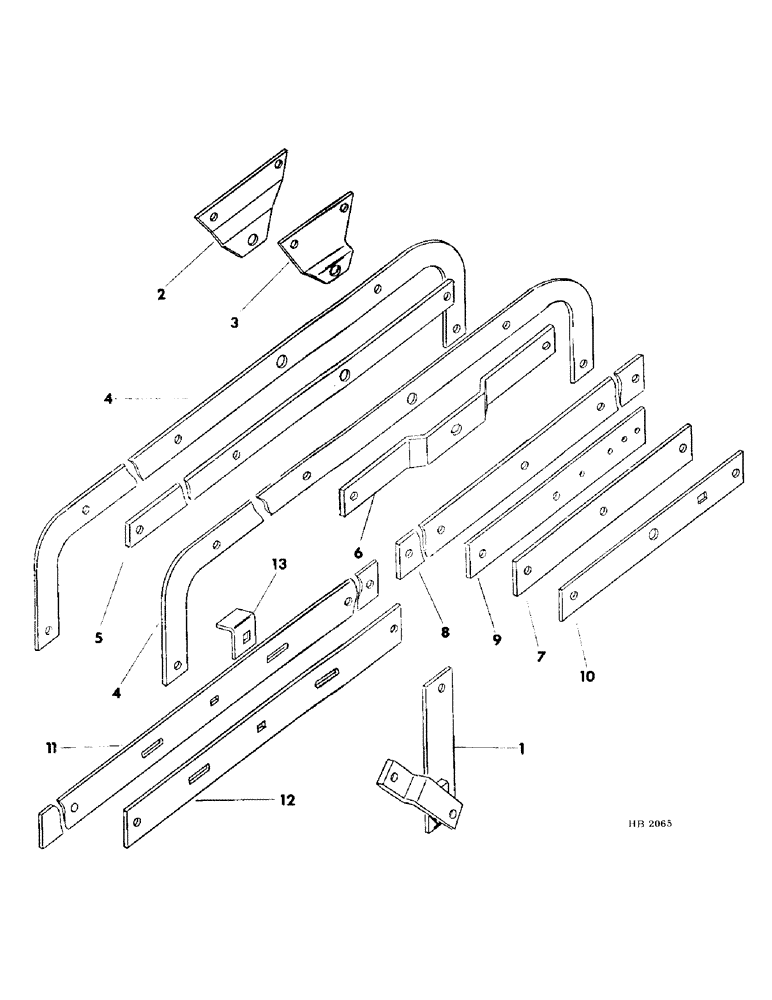

Запчасти Case IH 150 (10) - EQUALIZER AND EVENER BARS

1

607503R91

SUPPORT ASSY, evener bar, 10X8, 10X10 and 8X12

2шт.

1

599738R1

SUPPORT ASSY, evener bar, 8X18

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

603939R1

SUPPORT, equalizer front, 14X10, 10X12,10X14, 12X14, 20X8, 14X12 and 16X10

2шт.

3

603940R1

SUPPORT, equalizer rear, 20X8, 14X10, 16X10, 10X12, 14X12, 10X14 and 12X14

2шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16-14 x 1-1/2 hex hd, 2 per support

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex, 1 per bolt

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 1 per bolt 7/16"

1шт.

4

608933R1

BAR, equalizer, 10X12

4шт.

4

608934R1

BAR, equalizer, 14X12

4шт.

4

605324R1

BAR, equalizer, 12X14 & 16X10

4шт.

4

606069R1

BAR, equalizer, 20X8

4шт.

4

605325R1

BAR, equalizer, 14X10 & 10X14

4шт.

5

603933R1

BAR, equalizer reinforcement inner, 20X8, 14X10 and 10X14

2шт.

5

603934R1

BAR, equalizer reinforcement inner, 16X10, 14X12 and 12X14

2шт.

5

608929R1

BAR, equalizer reinforcement inner, 10X12

2шт.

PR146

AXLE PIN,5/8" x 2 1/2"

PIN, 5/8 x 2-1/2 std-hd old, 2 used on 14X10, 10X12, 10X14

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 2 used on 14X10, 10X12, 10X14 3/16" x 1"

1шт.

108684

CROSS PIN

RIVET, 3/8 x 1-7/8 small b-hd, 2 used on 20X8, 16X10, 14X12

1шт.

6

603935R1

BAR, equalizer reinforcement outer, 20X8, 16X10, 14X12 and 12X14

2шт.

496496R1

HEADED PIN,5/8" x 2 3/4"

PIN, 5/8 x 2-3/4 std-hd old

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

251420DS

SHARE

4шт.

7

608930R1

BAR, outer evener, 10X12

2шт.

7

608931R1

BAR, outer evener, 14X12

2шт.

7

603946R1

BAR, outer evener, 10X14

2шт.

7

606067R2

BAR, outer evener, 10X8 & 20X8

2шт.

7

604308R1

BAR, outer evener, 14X10

2шт.

7

605323R1

BAR, outer evener, 16X10

2шт.

604321R1

DOWEL

PIN, 1/2 x 1-3/4 std-hd old

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

8

594624R1

BAR, evener, 10X10 and 8X12

2шт.

8

599742R1

BAR, evener, 8X18

2шт.

9

594625R1

BAR, evener bar reinforcement, 10X10 and 8X12

2шт.

104114

RIVET,But Hd, 3/8" x 1 1/8"

3/8 x 1-1/8 small b-hd, 2 per bar

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

PG141

PIN

1/2 x 2 std-hd old

2шт.

9

599741R1

BAR, evener bar reinforcement, 8X18

2шт.

104115

RIVET,But Hd, 3/8" x 1 1/4"

3/8 x 1-1/4 small b-hd

8шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

PR146

AXLE PIN,5/8" x 2 1/2"

PIN, 5/8 x 2-1/2 std-hd old

2шт.

10

603949R2

BAR, outer evener bar reinforcement, 10X8, 20X8, 14X10, 16X10, 14X12 and 12X14

2шт.

11

605320R1

BAR, centre evener, 16X10

1шт.

11

605321R1

BAR, centre evener, 14X10

1шт.

11

605322R1

BAR, centre evener, 10X14 and 12X14

1шт.

11

608932R1

BAR, centre evener, 10X12 and 14X12

1шт.

11

606068R1

BAR, centre evener, 20X8

1шт.

12

603948R1

BAR, centre evener bar reinforcement, 20X8, 10X12, 14X12, 10X14 12X14

2шт.

12

604309R1

BAR, centre evener bar reinforcement, 14X10

1шт.

12

605333R1

BAR, centre evener bar reinforcement, 16X10

1шт.

604321R1

DOWEL

PIN, 1/2 x 1-3/4 std-hd old, 2 per bar

1шт.

432-1216

COTTER PIN,3/16" x 1"

RIVET, 3/8 x 1-1/8 small b-hd, 2 per bar

1шт.

13

605185R1

SLIDE, main chain, for use on machines built prior to 1965 season

1шт.

605449R1

BOLT

3/8 x 3/4 in spec crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
