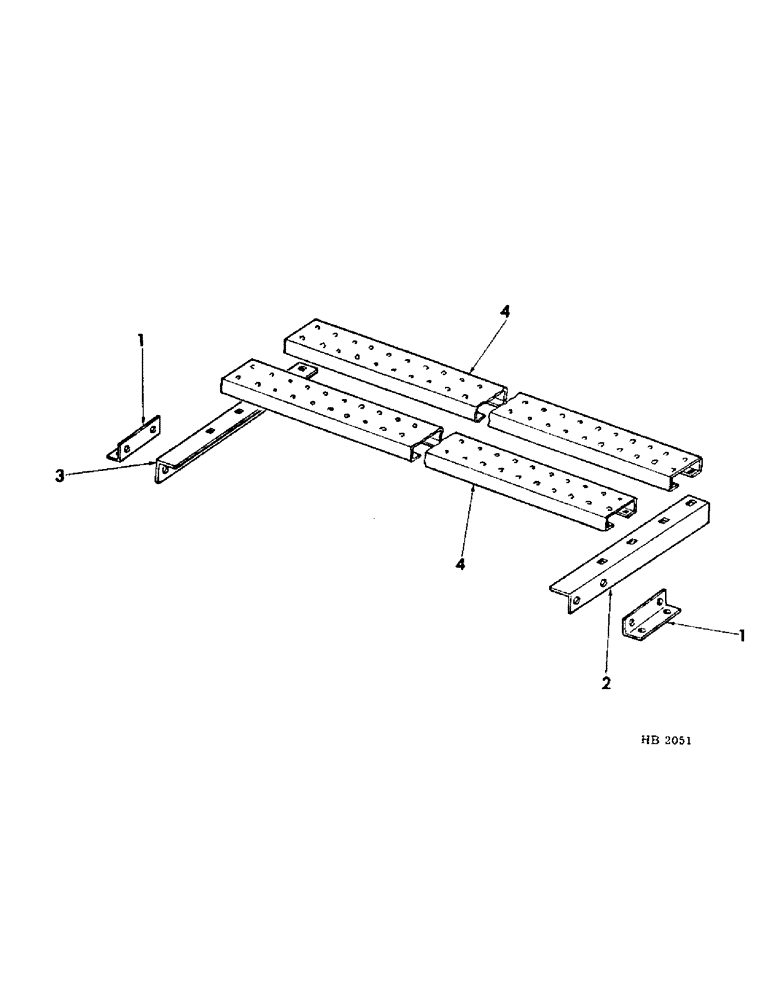

Запчасти Case IH 150 (09) - STEEL FOOTBOARDS AND SUPPORTS FOR MACHINES BUILT JUNE 1974 AND SINCE

1

601261R1

SUPPORT, footboard outer

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

819369C1

ANGLE, footboard support LH, 2 used 10X12, 3 used 20X8, 10X10, 14X10, 16X10, 8X12, 10X14 and 8X18, 4 used 14X12

1шт.

3

819370C1

ANGLE, footboard support RH, 1 used 10X10 and 8X12, 2 used 14X10 10X12, 10X14 and 8X18, 3 used 20X8, 16X10 and 14X12

1шт.

37658300

LINK

RIVET, 7/16 x 7/8 small B hd

4шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16-14 x 1 hex-hd, 10X10, 8X12, 10X12 6 used on 14X10, 10X14, 8X18, 8 used on 20X8, 16X10, 10 used on 14X12

1шт.

271501

SOCKET

NUT, 7/16-14 hex, 1 used per bolt

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 1 used per bolt 7/16"

1шт.

4

819365C1

FOOTBOARD, 20X8, steel

2шт.

4

819367C1

FOOTBOARD, steel, 10X10, 8X12

2шт.

4

819363C1

FOOTBOARD, steel, 14X10, 10X14 & 8X18

2шт.

4

819364C1

FOOTBOARD, steel, 16X10 & 14X12

2шт.

4

819366C1

FOOTBOARD, steel, 10X12

2шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 CPG, 16 used on 10X10, 8X12, 10X12, 20 used on 14X10, 10X14, 8X18, 24 used on 20X8, 16X10, 28 used on 14X12

1шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.
