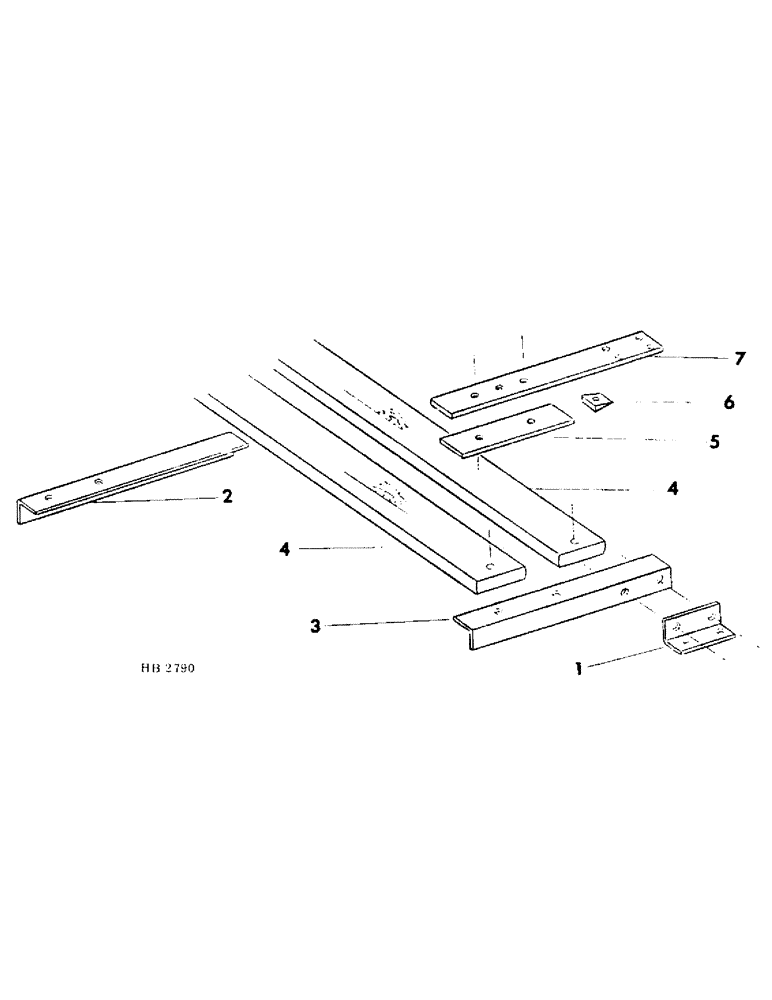

Запчасти Case IH 150 (08) - WOODEN FOOTBOARDS AND SUPPORTS FOR MACHINES BUILT PRIOR TO JUNE 1974

1

601261R1

SUPPORT, footboard outer

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

605411R1

ANGLE, footboard support LH, 2 used 10X12, 3 used 10X10, 14X10 16X10, 10X8, 8X12, 10X14, 20X8, & 8X18, 4 used 14X12 & 12X14

1шт.

3

605412R1

ANGLE, footboard support RH, 1 used 10X8, 10X10 & 8X12, 2 used 14X10, 10X12, 10X14 & 8X18, 3 used 20X8, 16X10, 14X12 & 12X14

1шт.

37658300

LINK

RIVET, 7/16 x 7/8 small B hd

4шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

14X10, 10X14, 8X18, 8 used on 20X8, 16X10, 10 used on 14X12

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex, 1 used per bolt

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 1 used per bolt 7/16"

1шт.

4

606082R2

FOOTBOARD, 20X8, wood

2шт.

4

594642R1

FOOTBOARD, wood 10X10 & 8X12

2шт.

4

605414R2

FOOTBOARD, wood 14X10, 10X14, 14X12

2шт.

4

605415R2

FOOTBOARD, wood 16X10, 12X14, 14X12

2шт.

4

608957R1

FOOTBOARD, wood, 10x12

2шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8-16 x 1-3/4 carriage, 8 used on 20X8, 10X10, 16X10, 8X12, 10X12. 10 used on 14X10, 14X12, 10X14, 8X18

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

5

605410R1

CLAMP, centre support, Serial Range: Prior-1964

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8-16 x 2-1/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

603901R1

WASHER

tapered, Serial Range: Prior-1964

1шт.

7

604114R1

SUPPORT, intermediate, Serial Range: Prior-1964

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
