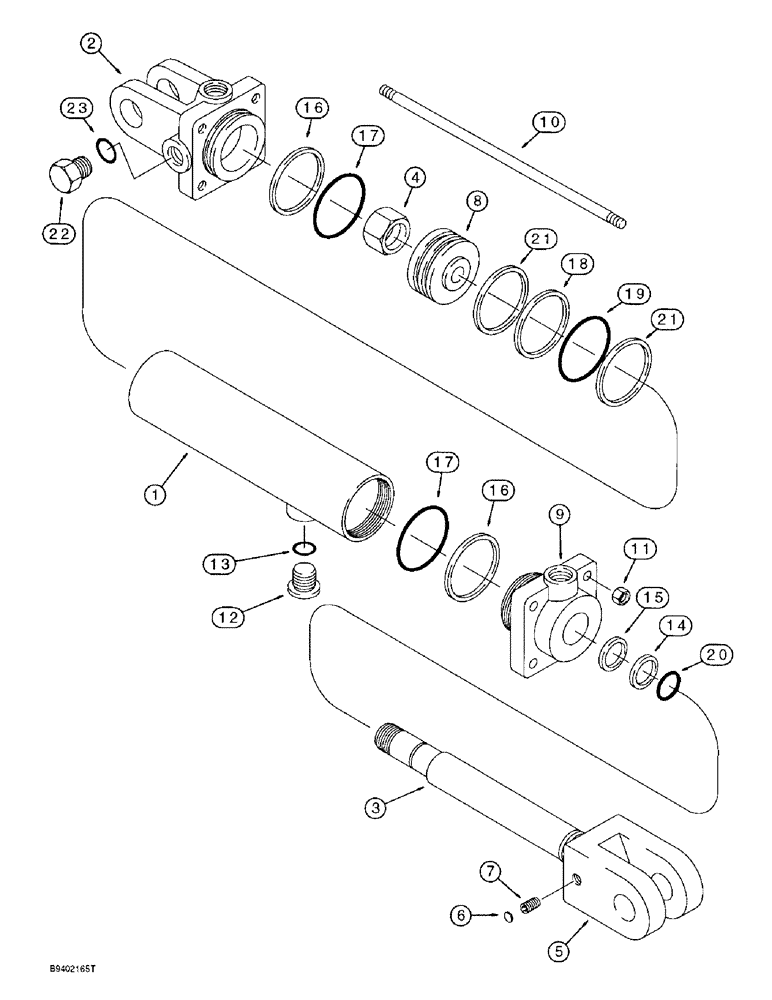

Запчасти Case IH 6800 (8-14) - TRANSPORT LIFT CYLINDER, 142080A1, 114 MM (4-1/2 INCH) ID (08) - HYDRAULICS

142080A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 114 (4-1/2) ID x 406 mm (16 inch) stroke, transport lift

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1954155C1

JACK HEAD

CAP - end

1шт.

3

143211A1

PISTON ROD

ROD - piston

1шт.

4

143208A1

LOCK NUT

- hex, self locking, piston, Serial Range: -rod

1шт.

5

143213A1

RAM FORK

CLEVIS - piston rod

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

7

483-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - set, hex socket headless, 3/8 NC x 1/2 inch, cup point

1шт.

8

1954189C1

JACK PISTON

PISTON - cylinder

1шт.

9

143212A1

CYLINDER END CAP

GLAND - cylinder

1шт.

10

92873C1

THREADED ROD,3/4" - 10 x 21.812"

BOLT - tie, cylinder retaining

4шт.

11

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

12

143204A1

PLUG

- hex socket, special, 3/4-16 inch O-ring boss

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of seal kit P/N 143215A1

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 143215A1

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 143215A1

1шт.

16

NSS

NOT SOLD SEPARAT

RING - back-up, end cap and gland O-ring

2шт.

Part of seal kit P/N 143215A1

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

Part of seal kit P/N 143215A1

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit P/N 143215A1

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - piston, large

1шт.

Part of seal kit P/N 143215A1

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - piston, small

1шт.

Part of seal kit P/N 143215A1

1шт.

21

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

Part of seal kit P/N 143215A1

1шт.

22

218-775

PLUG,3/4"-16, 37 Degree

- hex, 3/4-16 inch flare

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of seal kit P/N 143215A1

1шт.

143215A1

SEAL KIT

KIT - seal, Includes: Refs. 13 - 21 and 23

1шт.
