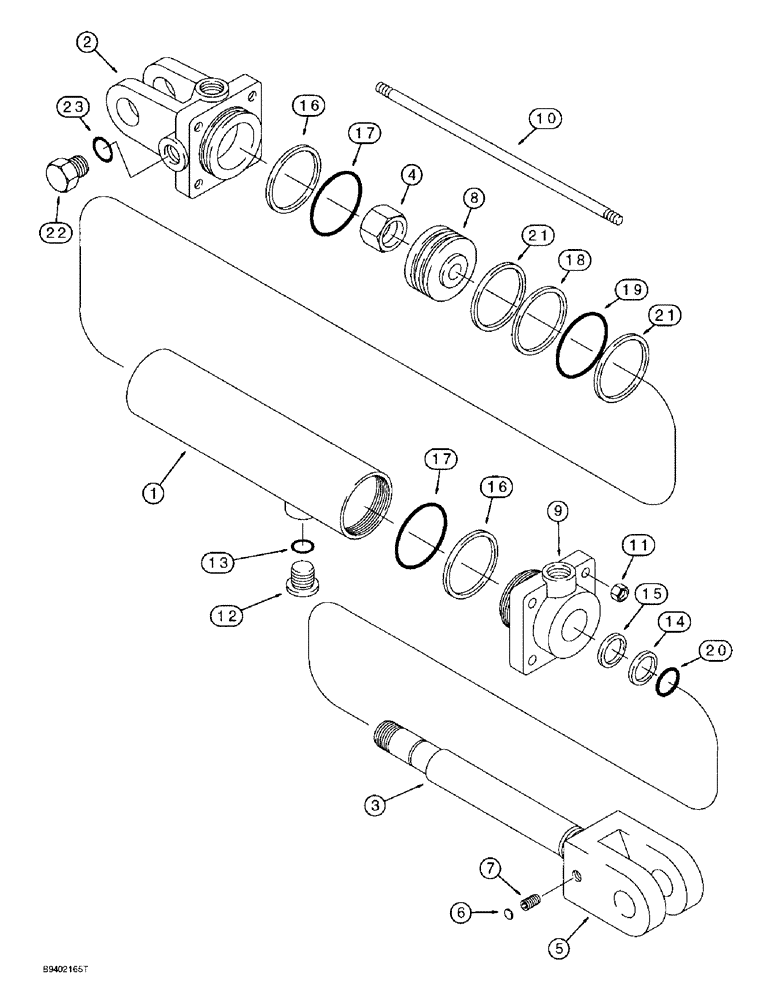

Запчасти Case IH 6800 (8-12) - TRANSPORT LIFT CYLINDER, 142081A2, 102 MM (4 INCH) ID (08) - HYDRAULICS

142081A2

CYLINDER ASSY.

CYLINDER ASSEMBLY - 102 (4) ID x 406 mm (16 inch) stroke, transport lift

1шт.

1

143201A1

HYD CYL SLEEVE

TUBE - cylinder

1шт.

2

1272919C1

CYLINDER HEAD

CAP - end, cylinder

1шт.

3

182039A1

PISTON ROD

ROD - piston

1шт.

4

H438714

LOCK NUT,7/8" - 14

- hex, self-locking

1шт.

5

182040A1

RAM FORK

CLEVIS - piston rod

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

7

483-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - set, hex socket headless, 3/8 NC x 1/2 inch, cup point

1шт.

8

92521C1

PISTON

- cylinder

1шт.

9

80559C1

CYLINDER END CAP

GLAND - cylinder

1шт.

10

145251C1

THREADED ROD,5/8" - 11 x 539mm

BOLT - tie, cylinder retaining

4шт.

11

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC

4шт.

12

143204A1

PLUG

- hex socket, special, 3/4-16 inch O-ring boss

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of seal kit P/N 143205A1

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 143205A1

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 143205A1

1шт.

16

NSS

NOT SOLD SEPARAT

RING - back-up, end cap and gland O-ring

2шт.

Part of seal kit P/N 143205A1

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

Part of seal kit P/N 143205A1

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit P/N 143205A1

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - piston, large

1шт.

Part of seal kit P/N 143205A1

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - piston, small

1шт.

Part of seal kit P/N 143205A1

1шт.

21

143203A1

SEALING RING

RING - wear, piston

2шт.

22

218-775

PLUG,3/4"-16, 37 Degree

- hex, 3/4-16 inch flare

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of seal kit P/N 143205A1

1шт.

143205A1

SEAL KIT

KIT - seal, Includes: Refs. 13 - 20 and 23

1шт.
