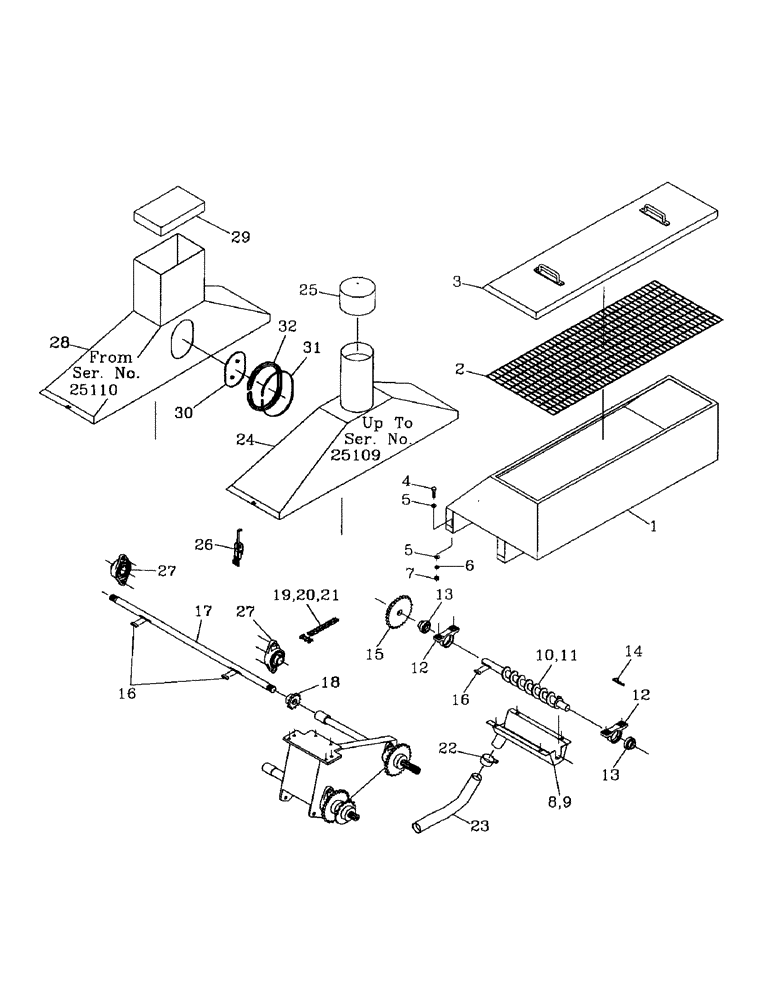

Запчасти Case IH AUSTOFT (A01-08) - FERTILIZER BIN Mainframe & Functioning Components

1

87239197

HOPPER

BIN

2шт.

2

87239521

SCREEN

MESH

2шт.

3

87239362

LID

2шт.

4

FM112030

BOLT

8шт.

5

WA120000

WASHER

16шт.

6

WB120000

WASHER

8шт.

7

NA112000

NUT

8шт.

8

87253737

BOX

TROUGH (LH)

1шт.

9

87253738

BOX

TROUGH (RH)

1шт.

10

42-06369

AUGER

(LH)

1шт.

11

42-06353

AUGER

(RH)

1шт.

12

42-06321

BEARING

HOUSING

4шт.

13

42-06320

BEARING

4шт.

14

42-11151

CLIP

"R" CLIP

8шт.

15

87240398

SPROCKET ASSY.

SPROCKET (27 tooth)

2шт.

16

42-06372

KEY

4шт.

17

87253317

CROSS SHAFT

SHAFT

1шт.

18

87253318

SPROCKET ASSY.

SPROCKET (15 tooth)

2шт.

19

00700004

CHAIN (AG)

CHAIN

1шт.

20

42-06326

CONNECTING LINK

1шт.

21

4206327

HALF LINK

1шт.

22

00181813

HOSE CLAMP

CLAMP

2шт.

23

00182051

PLASTIC-RUBBER TUBE

TUBE

2шт.

24

87252317

HOPPER

(optional) (up to and including serial #25109)

2шт.

25

87252323

CAP

(optional) (up to and including serial #25109)

2шт.

26

00608187

LATCH ASSY.

LATCH (optional)

4шт.

27

00141712

BEARING

2шт.

28

87252317

HOPPER

(optional) (serial #25110 and onwards)

2шт.

29

87253893

LID

(optional) (serial #25110 and onwards)

2шт.

30

87255096

PANEL

GLASS PANEL (optional)

2шт.

31

00131730

SEALING STRIP

LOCK RUBBER

1шт.

32

00134800

RUBBER

1шт.
