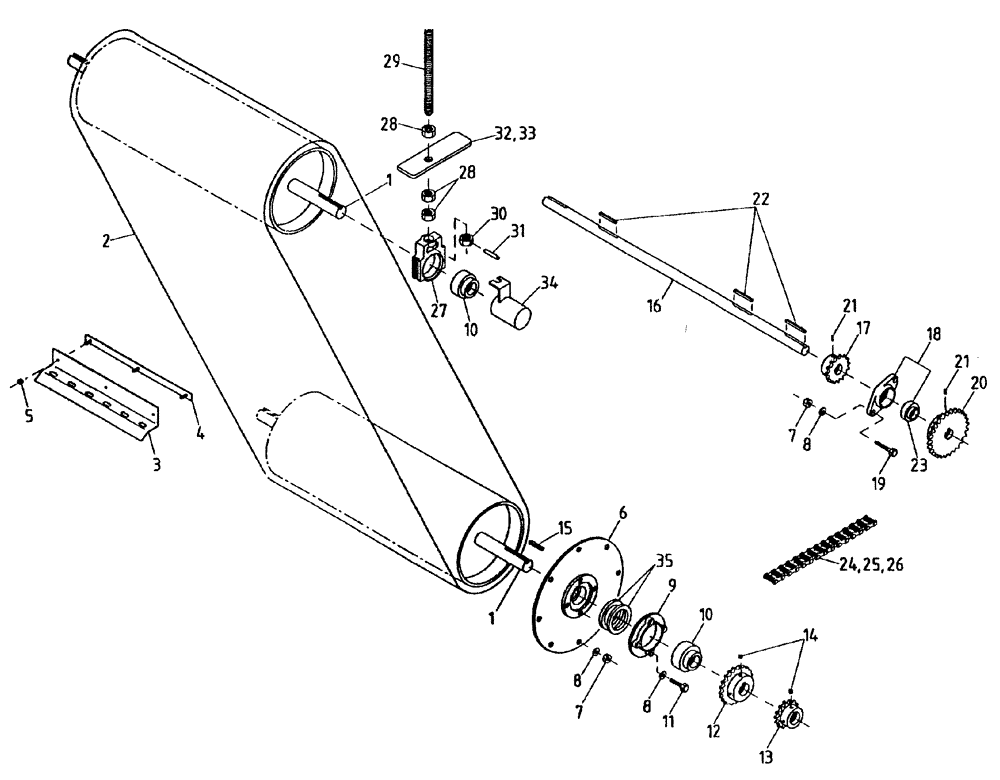

Запчасти Case IH AUSTOFT (A01[20A]) - BELT DRIVE ASSEMBLY

1

42-06518

ROLLER

2шт.

2

87239518

BELT,3720.00 mm L

Conveyor

1шт.

3

42-06793

STEEL FLIGHT

24шт.

4

42-06795

PAD

PLATE backing

24шт.

5

NC106000

LOCK NUT

72шт.

6

87240903

SUPPORT ASSY.

MOUNT bearing

1шт.

7

NA112000

NUT

12шт.

8

WB120000

WASHER

20шт.

9

42-06275

BEARING

housing

2шт.

10

42-06212

BEARING

4шт.

11

FM112055

BOLT

8шт.

12

87240396

SPROCKET ASSY.

standard 27 teeth

1шт.

12

87240393

SPROCKET ASSY.

optional 19 teeth

1шт.

12

87240395

SPROCKET ASSY.

optional 15 teeth

1шт.

12

87240392

SPROCKET ASSY.

optional 21 teeth

1шт.

13

87240395

SPROCKET ASSY.

15 teeth

1шт.

14

FE110012

SCREW,M10 x 1.5 x 12mm

4шт.

15

42-06371

KEY

2шт.

16

42-06672

SHAFT

1шт.

17

87240399

SPROCKET ASSY.

15 teeth

2шт.

18

00141699

BEARING

and housing

2шт.

19

FM112035

BOLT

4шт.

20

87240398

SPROCKET ASSY.

27 teeth

1шт.

21

FE106012

SCREW,M6 x 12mm

6шт.

22

42-06372

KEY

3шт.

23

42-06320

BEARING

2шт.

24

42-06246

ASSEMBLY

CHAIN

1шт.

25

42-06326

CONNECTING LINK

1шт.

26

42-06327

HALF-LINK

1шт.

27

42-06219

BEARING

housing

2шт.

28

NA124000

NUT

6шт.

29

42-06250

ADJUSTMENT ROD

take up

2шт.

30

87241622

NUT

2шт.

31

00607380

PIN

roll

2шт.

32

42-06248

GUARD

PLATE (LHS)

1шт.

33

42-06236

GUARD

PLATE (RHS)

1шт.

34

87238804

GUARD

2шт.

35

42-06220

OIL SEAL

4шт.
