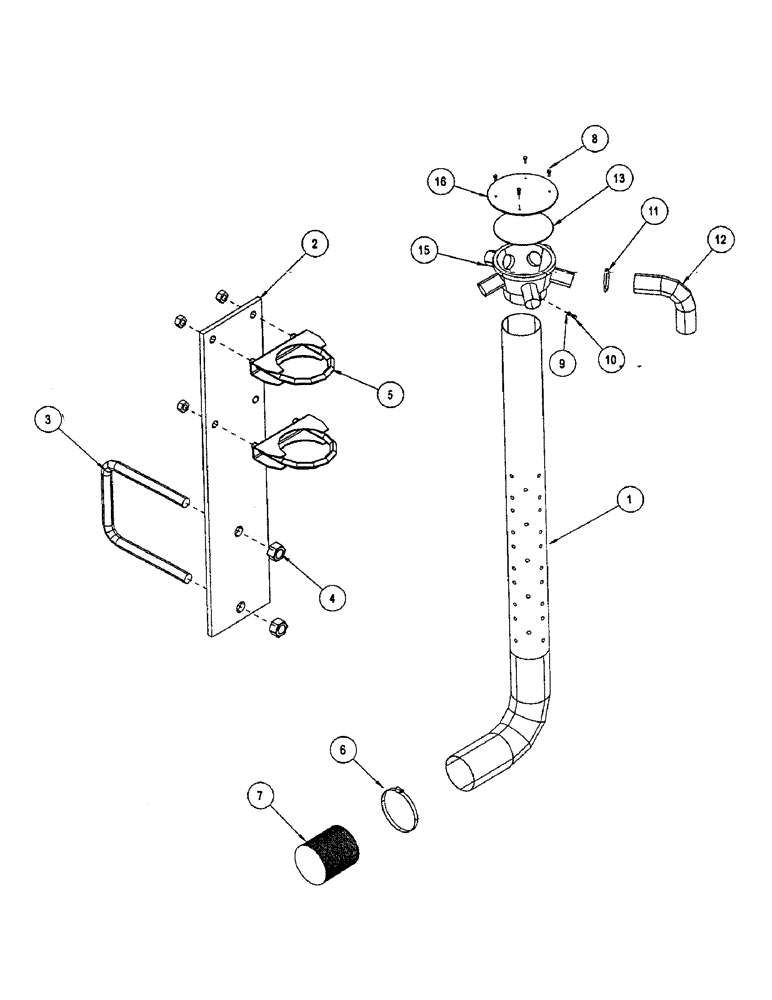

Запчасти Case IH CONCORD (B60) - SECONDARY MANIFOLD TUBES AND STANDS

1

1026067

TUBE,63.5 mm Diameter, 590.55 mm Length

SECONDARY - tube dimpled short

1шт.

2

1026249

LARGE PLATE

PLATE - secondary

1шт.

3

1023564

U-BOLT

BOLT-U: .50 x 4.53 x 5.00 ZP

1шт.

4

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC GR6 ZP

2шт.

5

1013060

CLAMP

- muffler: 2.500

2шт.

6

1013236

CLAMP

- hose: bundle

1шт.

7

1032279

HOSE,2.50" ID

PVC-B 2.50" ID

1шт.

8

1018047

BOLT

BOLT - hex: .25 x .63 NC GR5 ZP

4шт.

9

1013518

LOCK NUT

NUT - jam: .25 NC GR2 ZP

2шт.

10

1013208

SET SCREW

SCREW - set: C-P .25 x 1.00 NC GR8

2шт.

11

1026358

CLAMP

HOSE: #16 0.81-1.50

7шт.

12

1029296

HOSE,25.70 mm ID BULK

- EVA-B 25.70 mm ID BULK

1шт.

13

1022775

GASKET

CUSHION

1шт.

14

1015039

TUBE ASSY.

7 PORT MANIFOLD WITH COVER (2310,2812) (Incl. 15,16,8) , 1'' port

1шт.

1014483

MANIFOLD VALVE

8 PORT MANIFOLD WITH COVER (2710) (Incl. 15,16,8) , 1'' port

1шт.

1013195

MANIFOLD

9 PORT MANIFOLD WITH COVER (3010) (Incl. 15,16,8) , 1'' port

1шт.

15

1015042

TUBE ASSY.

7 PORT MANIFOLD WITH OUT COVER (2310,2812) , 1'' port

1шт.

1014485

TUBE ASSY.

8 PORT MANIFOLD WITHOUT COVER (2710) , 1'' port

1шт.

1013199

TUBE ASSY.

9 PORT MANIFOLD WITH OUT COVER (3010) , 1'' port

1шт.

16

1013193

COVER

(1" port)

1шт.

1013192

COVER

(1" - 7 port)

1шт.

1013191

COVER

(1"-9 port)

1шт.
