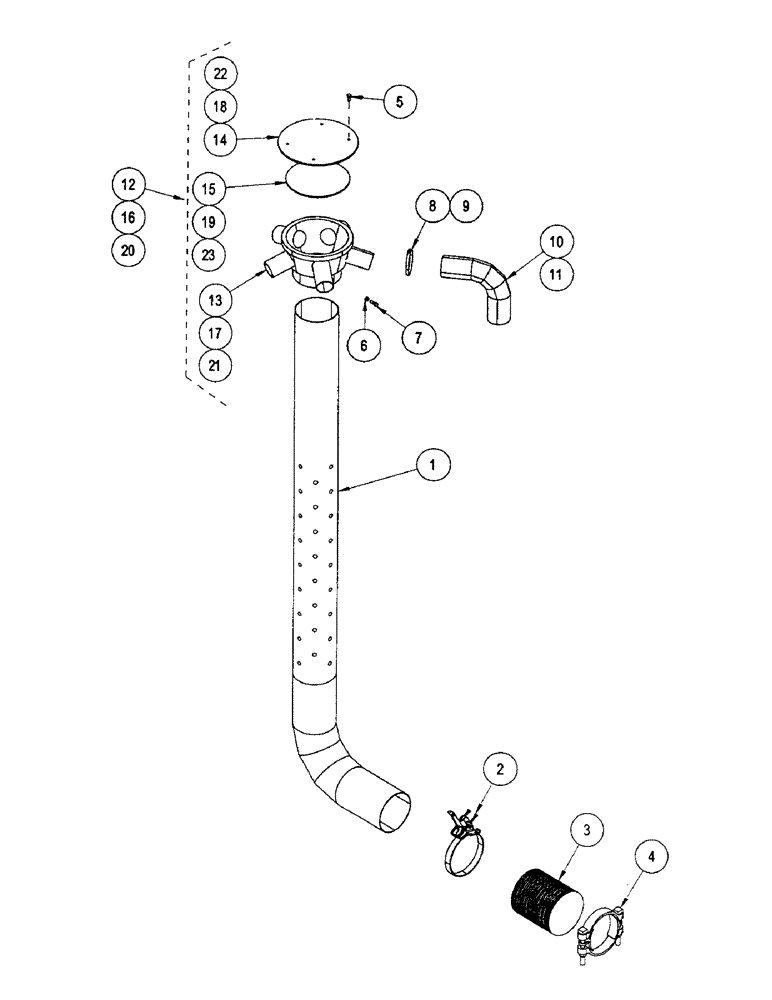

Запчасти Case IH CONCORD (B58) - PRIMARY MANIFOLD, TUBES

1

1033291

TUBE,127 mm Diameter, 1638.3 mm Length

WLDMT - primary manifold tube

1шт.

2

1013259

CLAMP

WLDMT - clamp

1шт.

3

1021326

HOSE,5.00" ID x 150.00"

5.00" ID x 150.00"

1шт.

4

1026541

CLAMP,127mm - 146.05mm

- #600: 5.00-5.75 Dia.

1шт.

5

1018047

BOLT

BOLT - hex: .25 x .63 NC GR5 ZP

4шт.

6

425-144

JAM NUT,Jam, 1/4"-20, G5

- jam: .25 NC GR2 ZP

2шт.

7

1013208

SET SCREW

SCREW - set: C-P .25 x 1.00 NC GR8

2шт.

8

1012980

CLAMP

- hose: S.S.#44 2.31-3.25

1шт.

9

1026358

CLAMP

- hose: #16 0.81-1.50 (2412)

1шт.

10

1029295

HOSE - bulk: EVA-B 1.00 ID (2412)

1шт.

11

1032279

HOSE,2.50" ID

PVC-B (2310,2710,2812,3010) 2.50" ID

1шт.

12

1012427

MANIFOLD

MANIFLD - cover primary 4 port 2 1/2" (Incl. 5, 13, 14) , STANDARD BELL

1шт.

13

1012428

COVER

MANIFLD - with tubes: Prim 4PRT 2.50 , STANDARD BELL

1шт.

14

1013039

COVER

(2 1/2" 4 port) , STANDARD BELL

1шт.

15

1022774

GASKET

CUSHION - manifold: .25 x 6.00 , STANDARD BELL

1шт.

16

1015327

TUBE ASSY.

24 PORT MANIFOLD WITH COVER (Incl. 5,6,17,18) , STANDARD BELL

1шт.

17

1015323

TUBE ASSY.

24 PORT MANIFOLD WITH OUT COVER , STANDARD BELL

1шт.

18

1015860

COVER

24 port , STANDARD BELL

1шт.

19

1030731

CUSHION

- manifold super bell , STANDARD BELL

1шт.

20

1015326

TUBE ASSY.

MANIFLD - with cover: super 20PRT 1.00 , BELL (2012)

1шт.

21

1015322

TUBE ASSY.

MANIFLD - with out cover: super 20PRT 1.00 , BELL (2012)

1шт.

22

1015861

COVER

- manifld: super , BELL (2012)

1шт.

23

1030731

CUSHION

- manifold (Super bell) , (2012)

1шт.
