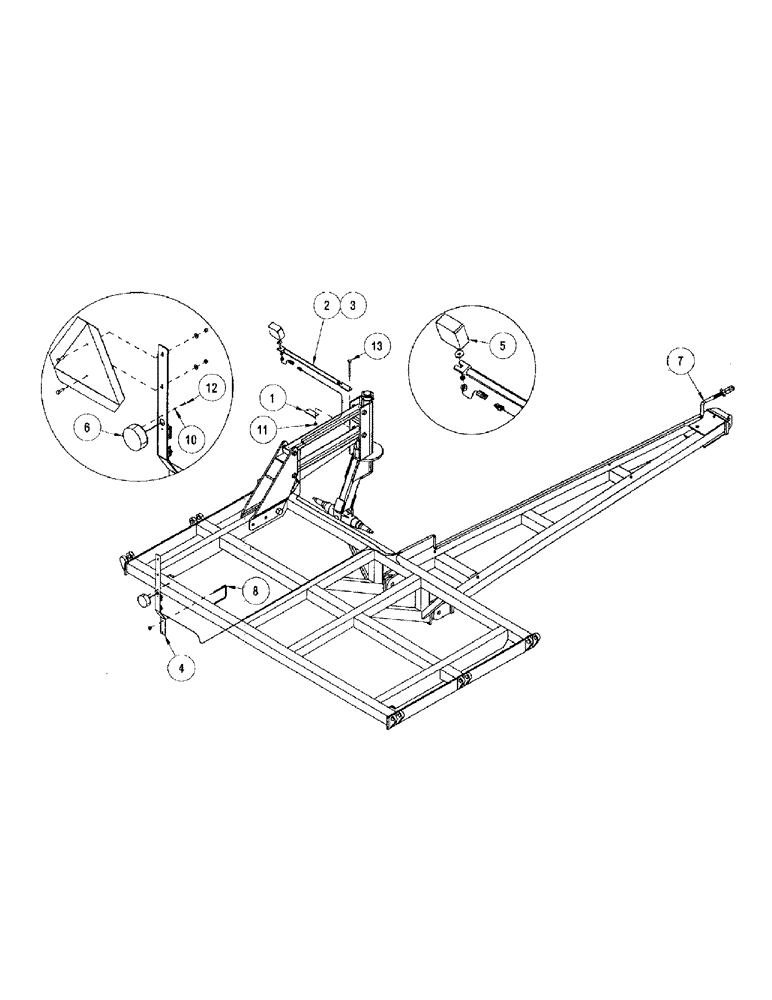

Запчасти Case IH CONCORD (B52) - SAFETY LIGHTS

1

1032762

BAR

- bolting

2шт.

2

1032761

BRACKET

- light

1шт.

3

1032760

BRACKET

- light

1шт.

4

1032478

PLATE

SMV/LIGHT BRACKET

1шт.

5

1032180

LAMP

ASSY - warning lamp #91913C91

2шт.

6

1032179

LAMP

ASSY - red tail lamp #91986C91

1шт.

7

1032177

HARNESS

- safety lamp #1969327C1

1шт.

8

1030501

U-BOLT

BOLT US .375 X 4.0 W X 5.0 D

1шт.

9

1017248

STRAP

TIE - 21.50 Waytek #21048 (Not shown)

24шт.

10

1013389

THRUST WASHER

- star: .19 ZP

2шт.

11

232-1446

NUT,3/8"-16, GC

NUT - nylock: .38 NC GR6 ZP

6шт.

12

1013336

SELF-TAP SCREW,M12 x 35mm, Cl 12.9

- S-Tap: .19 x .75 GR5 ZP

2шт.

13

1013239

BOLT

BOLT - hex: .38 x 3.00 NC GR5 SP

4шт.
