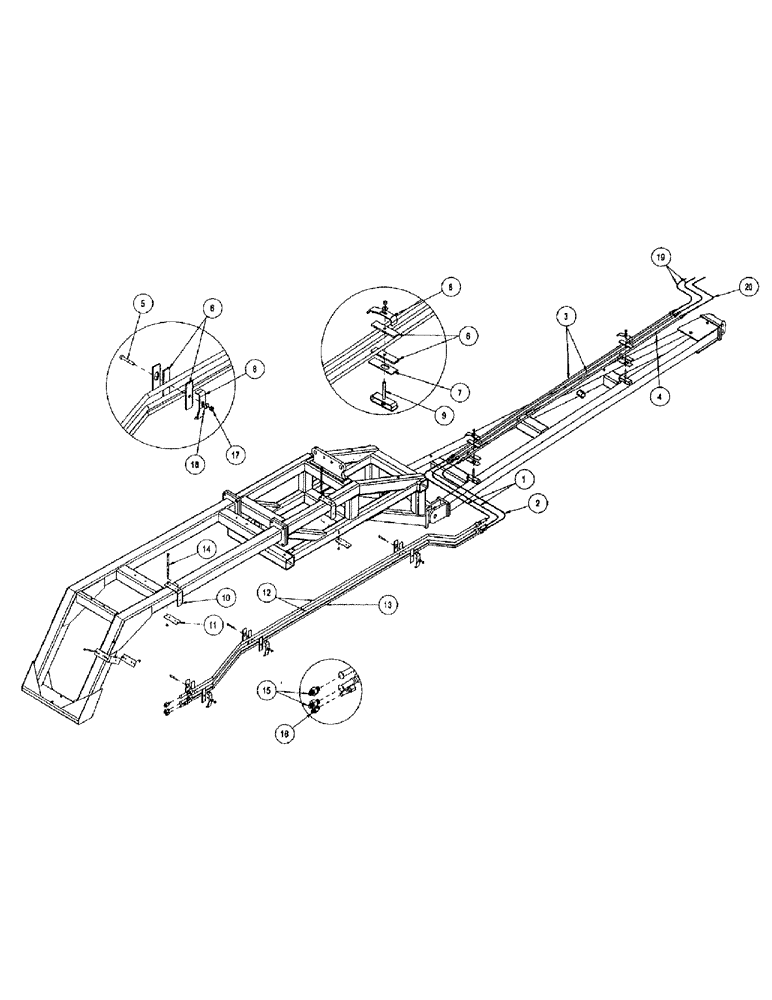

Запчасти Case IH CONCORD (B50) - TANK TO TRACTOR HYDRAULICS

1

1033036

HYDRAULIC HOSE,0.75" ID x 36.00"

- 12JICM both (3 rank models) 0.75" ID x 36.00"

2шт.

1

1018136

HOSE ASSY.

HOSE .75 x 060-12JICM both (4 rank models)

2шт.

2

1033035

HYDRAULIC HOSE,0.38" ID x 36.00", SAE 100R1

HOSE 0.38" ID x 36.00", SAE 100R - 8JICM both (3 rank models)

1шт.

2

1018135

HOSE ASSY.

HOSE .38 x 060-8JICM both (4 rank models)

1шт.

3

1026745

TUBE,0.75" Diameter, 108" Length

ASSY .75 X 108 YZD

2шт.

4

1026743

HYD TUBE,0.5" Diameter, 108" Length

TUBE ASSY .5 X 108 YZD

1шт.

5

1026715

SELF-TAP SCREW

- tap: .38 x 2.50 NC GR2 ZP

2шт.

6

1026714

ISOLATOR

: 5.00

10шт.

7

1026713

CLAMP

-BACKING

5шт.

8

1026712

CLAMP

: 5.00

5шт.

9

1026677

STUD

: .38X3.25 NC GRD ZP

2шт.

10

1026124

SUPPORT

BRACKET-L

3шт.

11

1026123

BAR

- bolting

3шт.

12

1026113

HYD TUBE,3454 mm Length

ASSY-TUBE .75

2шт.

13

1026112

HYD TUBE,3454 mm Length

ASSY-TUBE: .50

1шт.

14

1021757

BOLT

- hex: .38 x 5.00 NC GR5 ZP

6шт.

15

1015598

FITTING

FTG - adapter: TMK#2404-12-12

2шт.

16

1015218

FITTING

FTG - adapter: TMK#2404-8-8

1шт.

17

232-1446

NUT,3/8"-16, GC

NUT - nylock .38 NC GR6 ZP

11шт.

18

1014608

WASHER

FLAT WASHER: .38 SAE ZP

5шт.

19

1018134

HYDRAULIC HOSE

HOSE HYD .75 X 96 FL

2шт.

20

1018133

HYDRAULIC HOSE

HOSE HYD .375 X 96 FL

1шт.
