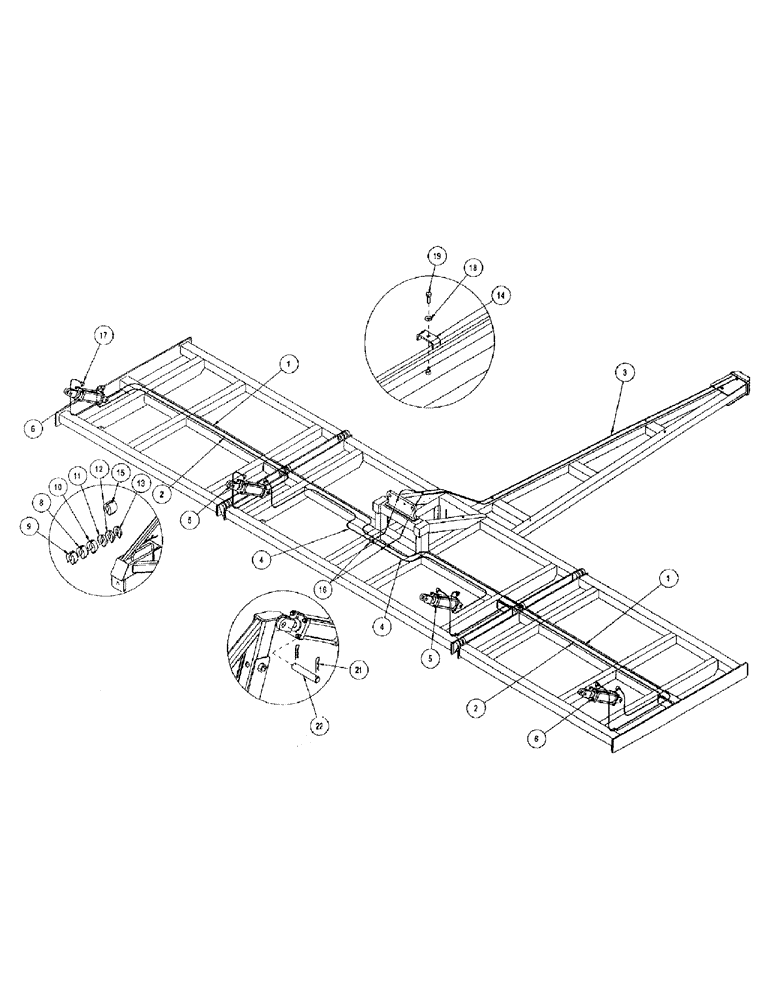

Запчасти Case IH CONCORD (B48) - DEPTH CONTROL HYDRAULICS

1

1032442

HYDRAULIC HOSE

HOSE .38 x 168-8JICFSW both

2шт.

2

1032441

HYDRAULIC HOSE,0.38" ID x 154.00"

- 8JICFSW both 0.38" ID x 154.00"

2шт.

3

1032440

HYDRAULIC HOSE,0.38" ID x 240.00"

- 8JICFSW/-8NPTM - 3 rank 0.38" ID x 240.00"

2шт.

3

1032790

HOSE

.38 x 270-8JICFSW/-8NPTM - 4 rank

2шт.

4

1032439

HYDRAULIC HOSE,0.38" ID x 80.00"

- 8JICFSW both 0.38" ID x 80.00"

2шт.

5

1026898

HYDRAULIC CYLINDER

CYL HYD 4.00 X 8.00 IOWA, Years: -31-OCT-02

2шт.

5

86991979

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 203.2mm Stroke

4X8 3000PSI NO PINS, Start Year: 01-NOV-02, Start Serial: CBJ0008108

2шт.

6

1026897

HYDRAULIC CYLINDER

CYL HYD 3.75 X 8.00 IOWA, Years: -31-OCT-02

2шт.

6

86991978

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 203.2mm Stroke

3.75X8 3000PSI NO PINS, Start Year: 01-NOV-02, Start Serial: CBJ0008108

2шт.

7

1025810

KIT

DEPTH STOP SPACERS (Incl. 8-13)

4шт.

8

1029289

WEDGE

STOP - depth: 1.44" griprite

1шт.

9

1025809

WEDGE

STOP - depth: 1.50" griprite

2шт.

10

1025808

STOP

- depth: 1.25" griprite

1шт.

11

1025807

WEDGE

STOP - depth: 0.75" griprite

2шт.

12

1025806

WEDGE

STOP - depth: 0.62" griprite

1шт.

13

1025805

WEDGE

STOP - depth: 0.50" griprite

2шт.

14

1024284

CLAMP

- hose small

6шт.

15

1020439

STOP

- transport 4"

4шт.

16

1015219

FITTING

FTG - tee AQ#2033-8-8S

2шт.

17

1014852

ELBOW,90 Degree, 3/4"-16 O-Ring x 3/4"-16, 37 Degree

FTG - elbow TMK#6801-8

8шт.

18

1014608

WASHER

- flat: SAE .38 ZP

6шт.

19

1011600

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex: .38 x 1.00 NC GR5 ZP

6шт.

21

1021389

PIN, ROLL

KEEPER - 41322-705

16шт.

22

1030885

PIN

CLEVIS - 1.00"

8шт.
