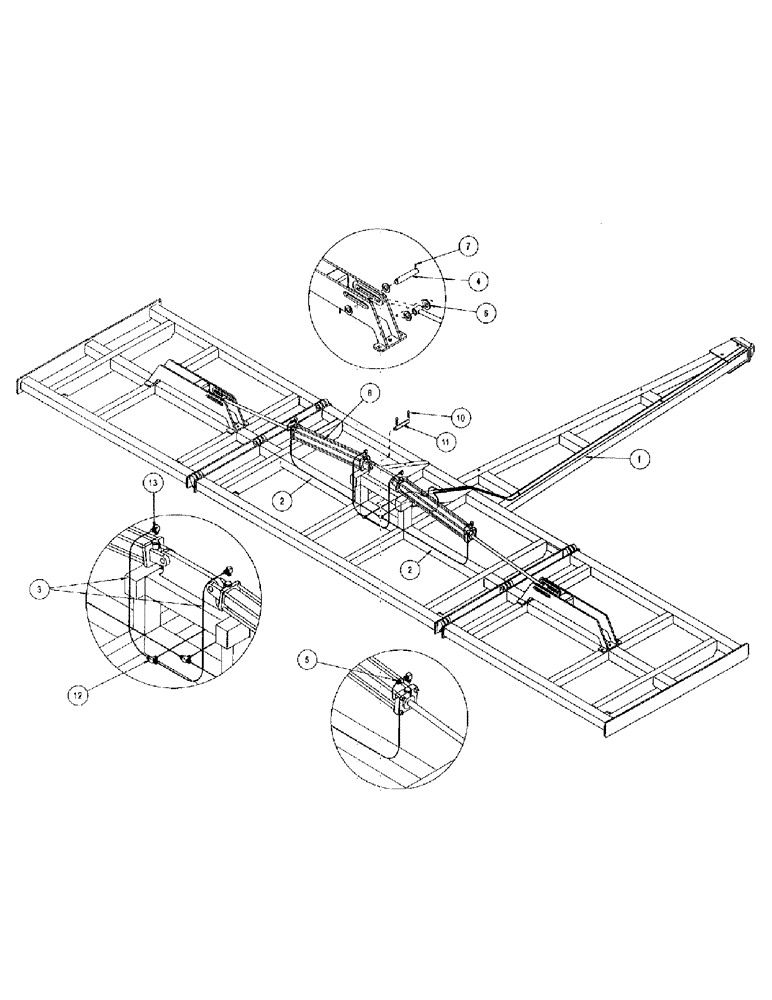

Запчасти Case IH CONCORD (B46) - WING LIFT HYDRAULICS

1

1015804

HYDRAULIC HOSE

HOSE HYD .5 X 240 FL (All models 3 rank)

2шт.

1

1032791

HYDRAULIC HOSE,0.50" ID x 270.00"

- 8JICFSW/-8NPTM (All models 4 rank) 0.50" ID x 270.00"

2шт.

2

1015802

HYDRAULIC HOSE

HOSE HYD .5 X 50 FL

2шт.

3

1015221

HOSE

.50 X 040-8JICFSW BOTH

2шт.

4

1025788

PIN

1.25 OD X 6.65 FL YZD

2шт.

5

1019844

FITTING

FTG - Restric AQ#FF1981-090-0808

2шт.

6

1016950

WASHER

- flat: SAE 1.25 ZP

8шт.

7

1016944

PIN

- cotter: .25 x 2.00 ZP

4шт.

8

350720A1

HYDRAULIC CYLINDER

KIT HYD 4.00 X 30.0 IOWA (Includes 1016796, 1019844, 218-5106, 350401A1, 1015478 and 6-70060) (2010, 2012, 2310, 2412 3&4 rank), Years: -31-OCT-02, Serial Range: -CBJ0008107

2шт.

8

350721A1

HYDRAULIC CYLINDER

KIT HYD 5.00 X 30.0 IOWA, (Includes 1028469, 1019844, 218-5106, 350401A1, 1015478 and 6-70060) (2710, 2812, 3010 3&4 rank), Years: -31-OCT-02, Serial Range: -CBJ0008107

2шт.

9

1021392

PIN

& keeper set: 1.25 x 3 (Incl. 10-11)

2шт.

10

1030840

RETAINER

COTTER PIN

4шт.

11

1030839

PIN

1.25 DIA 3.0 UL

2шт.

12

1015219

FITTING

FTG - tee AQ#2033-8-8S

2шт.

13

1014852

ELBOW,90 Degree, 3/4"-16 O-Ring x 3/4"-16, 37 Degree

FTG - elbow TMK#6801-8

4шт.
