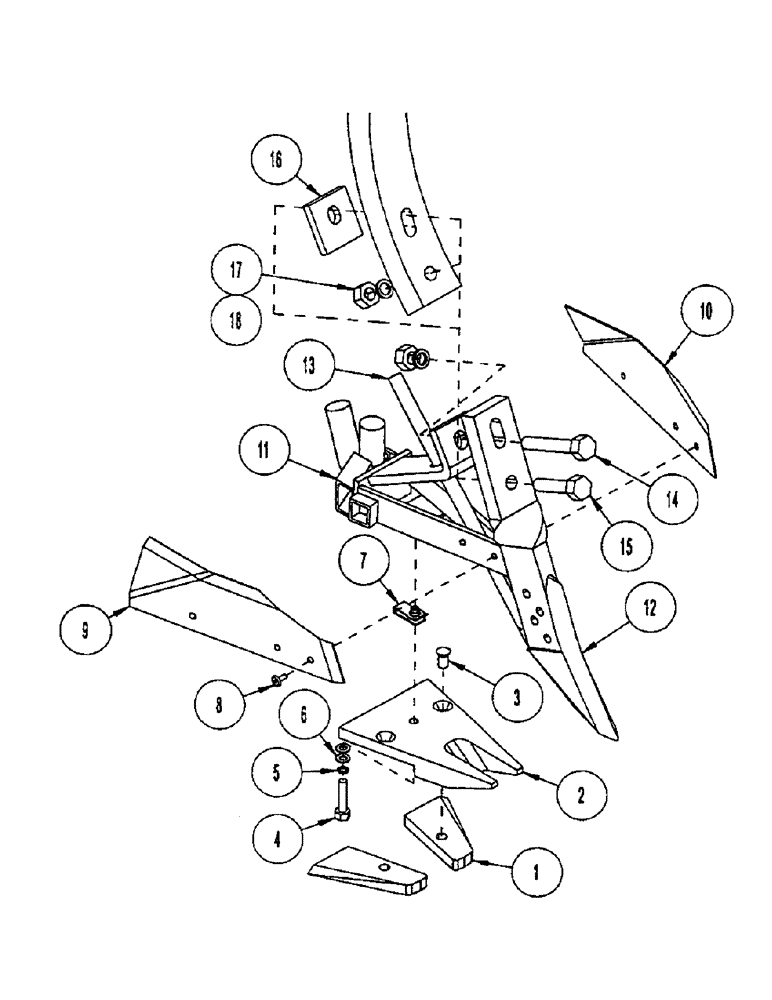

Запчасти Case IH CONCORD (B44) - STANDARD ANDERSON OPENER, 12 INCH LIQUID

1030625

OPENER

STANDARD 12" LIQUID ASSEMBLY

1шт.

1

1030570

LARGE PLATE

INSERT - chrome

2шт.

2

1030417

BASE PLATE

PLATE-BASE A-12 PLN

1шт.

3

1030571

SCREW

- F-H-S-C: 3/8" x 1", NC

2шт.

4

1014124

BOLT

- hex: .31 x 1.50 NC GR5 ZP (Case #413-524)

1шт.

5

1014125

LOCK WASHER

WASHER - lock: .31 NP (Case #92-11031)

1шт.

6

1011583

WASHER

flat, 5/16", ZP

2шт.

7

1030568

NUT

- speed clip: .31 NC

1шт.

8

1030567

RIVET

: 8-8 buttonhead

4шт.

1030572

RIVET

: 8-16 buttonhead

2шт.

9

1030054

SHIELD

UHMW SHIELD WHITE .25 TK RH

1шт.

10

1030053

SHIELD

UHMW SHIELD WHITE .25 TK LH

1шт.

11

1033108

BODY

WLDMT - frame AS-12 standard Liq

1шт.

12

1033282

TIP

CHROME TIP

1шт.

13

1030559

TUBE

- liquid-straight

1шт.

14

1017719

BOLT

- hex: .50 x 3.25 NC GR5 ZP (Case #413-852)

1шт.

15

1016858

BOLT

BOLT - hex: .50 x 2.75 NC GR5 ZP (Case #413-844)

1шт.

16

1033283

SPACER

PLATE-SPACER A-STD PNTD

1шт.

17

1011097

NUT,1/2"-13, G5

- hex: .50 NC GR2 ZP (Case #425-408)

2шт.

18

1011581

LOCK WASHER

- lock: .50 ZP (Case #492-11050)

2шт.
