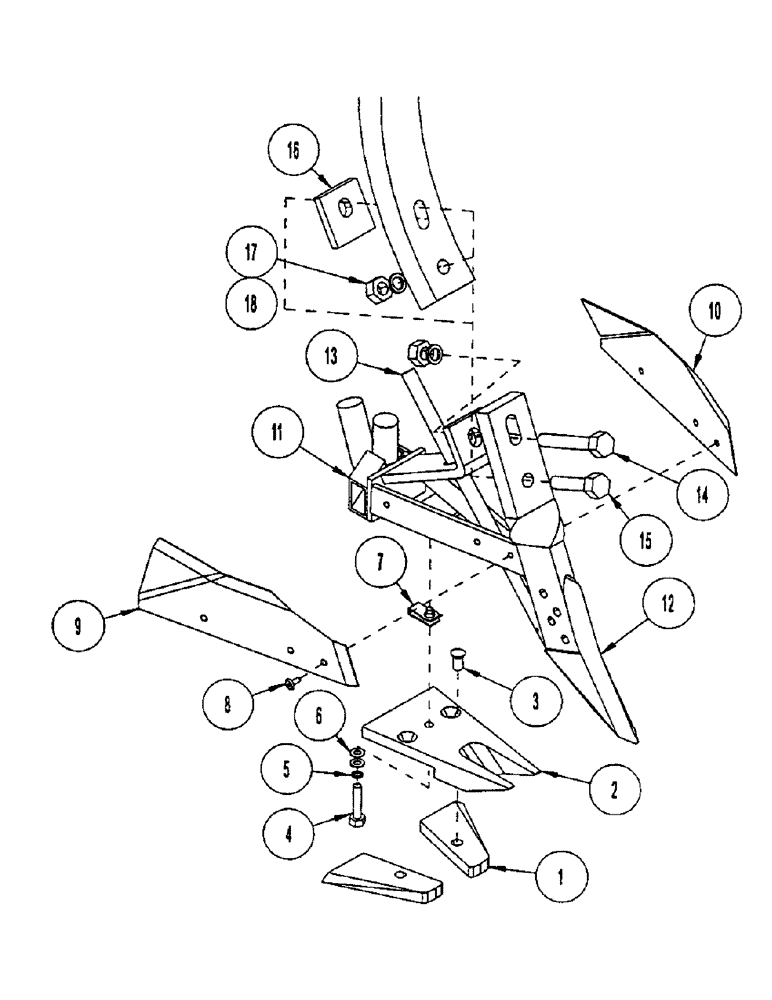

Запчасти Case IH CONCORD (B42) - STANDARD ANDERSON OPENER, 10 INCH LIQUID

1027882

OPENER

STANDARD 10" LIQUID ASSEMBLY

1шт.

1

1030570

LARGE PLATE

INSERT - chrome

2шт.

2

1030055

BASE PLATE

PLATE BASE A-10 PLN

1шт.

3

1030571

SCREW

- F-H-S-C: .38x1.00 NC

2шт.

4

1014124

BOLT

- hex: .31 x 1.50 NC GR5 ZP (Case #413-524)

1шт.

5

1014125

LOCK WASHER

WASHER - lock: .31 NP (Case #92-11031)

1шт.

6

1011583

WASHER

- flat: .31 ZP

2шт.

7

1030568

NUT

- speed clip: .31 NC

1шт.

8

1030567

RIVET

: 8-8 buttonhead

6шт.

9

1030054

SHIELD

UHMW SHIELD WHITE .25 TK RH

1шт.

10

1030053

SHIELD

UHMW SHIELD WHITE .25 TK LH

1шт.

11

1032063

FRAME

/W A-10 STD LIQUID PNTD

1шт.

12

1033282

TIP

CHROME TIP

1шт.

13

1030559

TUBE

NH

1шт.

14

1017719

BOLT

hex .50 x 3.25 (Case #413-852)

1шт.

15

1016858

BOLT

BOLT - hex: .50 x 2.75 NC GR5 ZP (Case #413-844)

1шт.

16

1033283

SPACER

PLATE-SPACER A-STD PNTD (For use with 2" x 1" shank only)

1шт.

17

1011097

NUT,1/2"-13, G5

- hex: .50 NC GR2 ZP (Case #425-108)

2шт.

18

1011581

LOCK WASHER

- lock: .50 ZP (Case #492-11050)

2шт.
