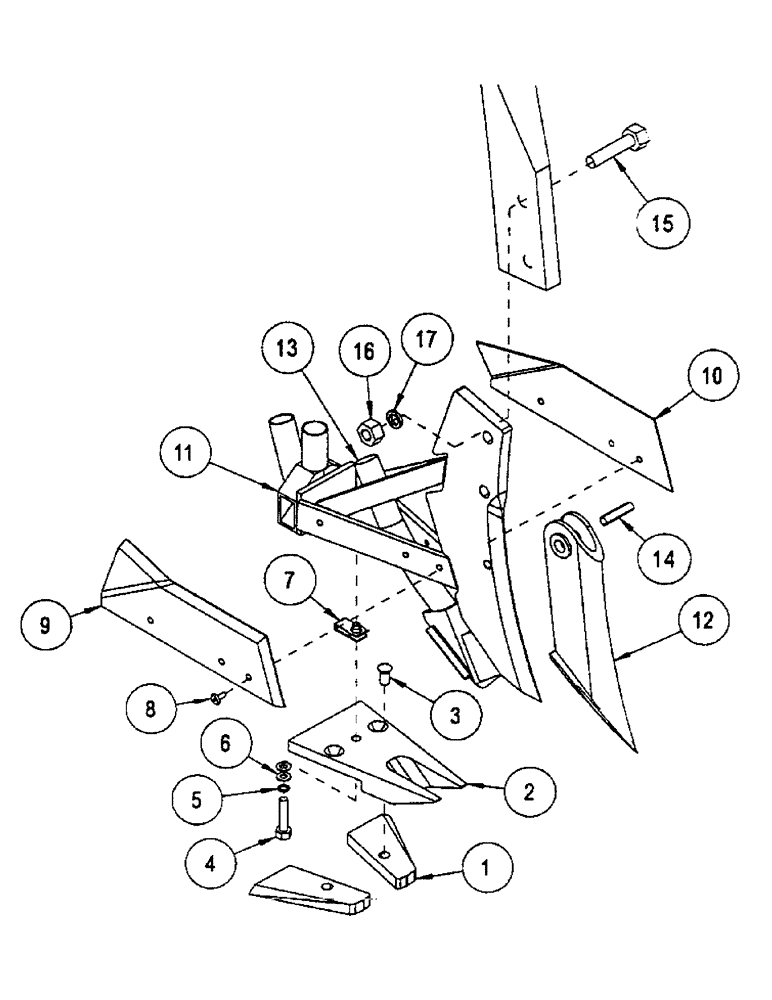

Запчасти Case IH CONCORD (B41) - EDGE-ON ANDERSON OPENER, 10 INCH DRY

1032076

TIP

EDGE - on dry 10" assembly

1шт.

1

1030570

LARGE PLATE

INSERT - chrome

2шт.

2

1030055

BASE PLATE

PLATE BASE A-10 PLN

1шт.

3

1030571

SCREW

- F-H-S-C: .38x1.00 NC

2шт.

4

1014124

BOLT

- hex: .31 x 1.50 NC GR5 ZP (Case #413-524)

1шт.

5

1014125

LOCK WASHER

WASHER - lock: .31 NP (Case #92-11031)

1шт.

6

1011583

WASHER

- flat: .31 ZP

2шт.

7

1030568

NUT

- speed clip: .31 NC

1шт.

8

1030567

RIVET

: 8-8 buttonhead 8/32

6шт.

9

1030052

SHIELD

- right hand

1шт.

10

1030051

SHIELD

- left hand

1шт.

11

1032062

SUPPORT

WLDMT - frame A-10 edge-on dry

1шт.

12

1030569

TIP

- chrome A-Edge-On

1шт.

13

1032070

TUBE

- edge on dry

1шт.

14

0100344

SPLIT PIN/SAFETY PIN

PIN - roll: .38 x 1.50 ZP

1шт.

15

1011609

BOLT

BOLT - hex: .50 x 2.00 NC GR5 ZP (Case #413-832)

2шт.

16

1011097

NUT,1/2"-13, G5

- hex: .50 NC GR2 ZP (Case #425-108)

2шт.

17

1011581

LOCK WASHER

- lock: .50 ZP (Case #492-11050)

2шт.
