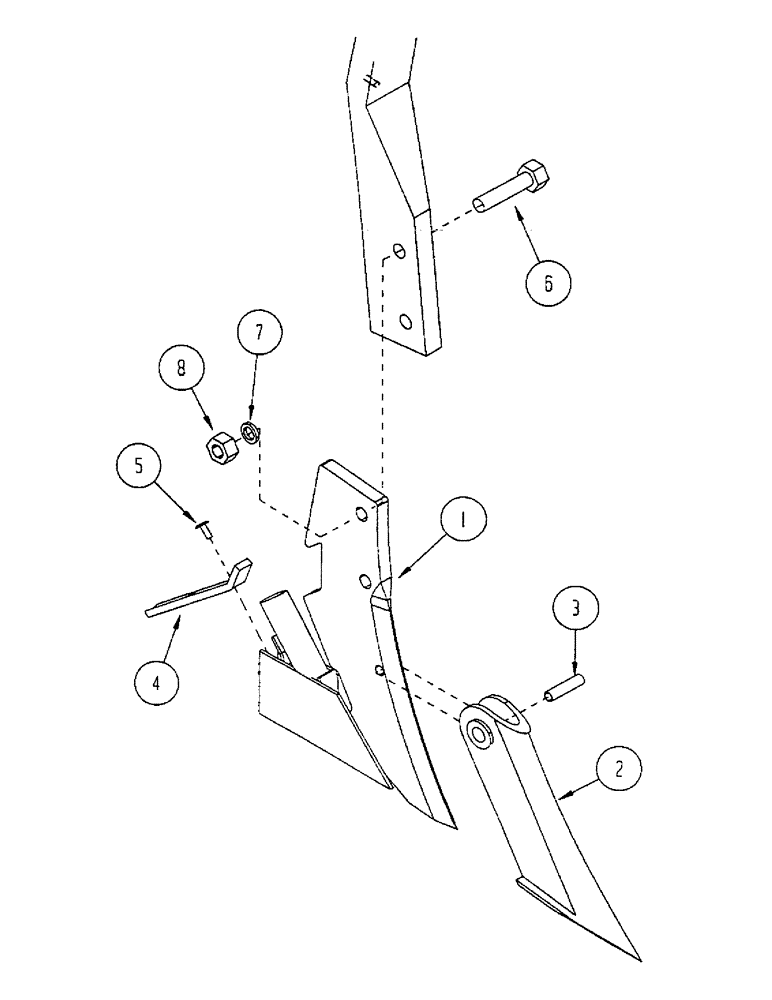

Запчасти Case IH CONCORD (B39) - EDGE-ON ANDERSON OPENER SINGLE SHOOT

1032301

EDGE

ON SINGLE SHOOT ASSEMBLY

1шт.

1

1033280

FRAME

WLDMT - frame AE SS edge-on

1шт.

2

1030569

TIP

- chrome A-Edge-On

1шт.

3

0100344

SPLIT PIN/SAFETY PIN

PIN - roll, 3/8" x 1 1/2", ZP

1шт.

4

1033264

STOP

UHMW BAR .25 THK

1шт.

5

1030567

RIVET

: 8-8 buttonhead

1шт.

6

1011609

BOLT

BOLT - hex: .50 x 2.00 NC GR5 ZP (Case #431-832)

2шт.

7

1011581

LOCK WASHER

- lock: .50 ZP (Case #492-11050)

2шт.

8

1011097

NUT,1/2"-13, G5

- hex: .50 NC GR2 ZP (Case #425-108)

2шт.
