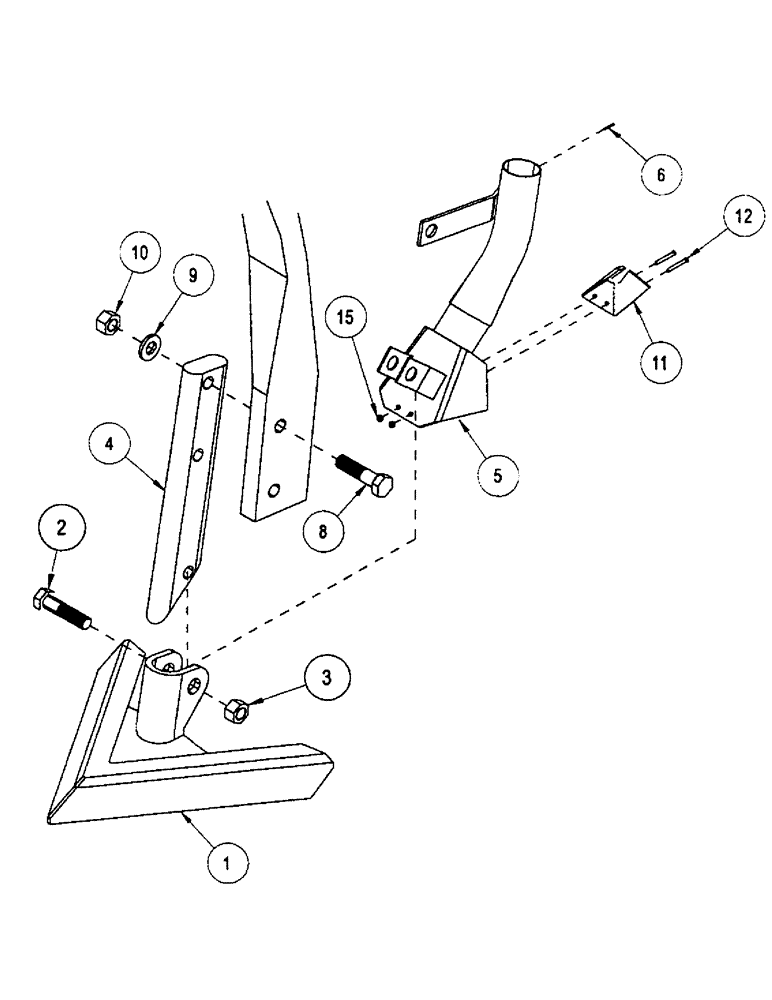

Запчасти Case IH CONCORD (B34) - ASSEMBLY, LD SWEEP

1

1032200

SHOE

SWEEP - LD version II 4"

1шт.

1

1032199

SWEEP

-LD VERSION II 6 IN

1шт.

1

1027915

SWEEP

-LD VERSION II 11 IN

1шт.

1

1033379

SWEEP

-LD VERSION II 13 IN

1шт.

2

1027916

BOLT

BOLT - .50 bevelled head

1шт.

3

1027917

NUT

- .50 bevelled

1шт.

4

1027914

SUPPORT

SHANK TRANSITION PNTD

1шт.

5

1033338

TUBE

ASSY - seed bolt LD (Incl. 5,6,11,12,15)

1шт.

290108A1

BOOT

WLDMT - boot LD seed

1шт.

1032378

TUBE

WLDMT - boot LD seed discontinued

1шт.

6

1024456

SELF-TAP SCREW

SCREW TAP #10 X .5 -ZIPIN

1шт.

7

1030063

CABLE TIE,.30" x 8 7/8"

.30 X8.88LG BLK NYL (Not shown)

1шт.

8

1015995

BOLT

BOLT - hex: .50 x 2.50 NC GR8 ZP (Case #426-840)

2шт.

9

1011581

LOCK WASHER

- lock: .50 ZP (Case #492-11050)

2шт.

10

1011097

NUT,1/2"-13, G5

- hex: .50 NC GR2 ZP (Case #425-108)

2шт.

11

1032377

MUD DEFLECTOR

DEFLECTOR - LD boot

1шт.

12

290177A1

SCREW

: #6 x .50 NC SS

2шт.

15

1027918

BOOT

NUT - K-lock: #6 NC SS

2шт.
