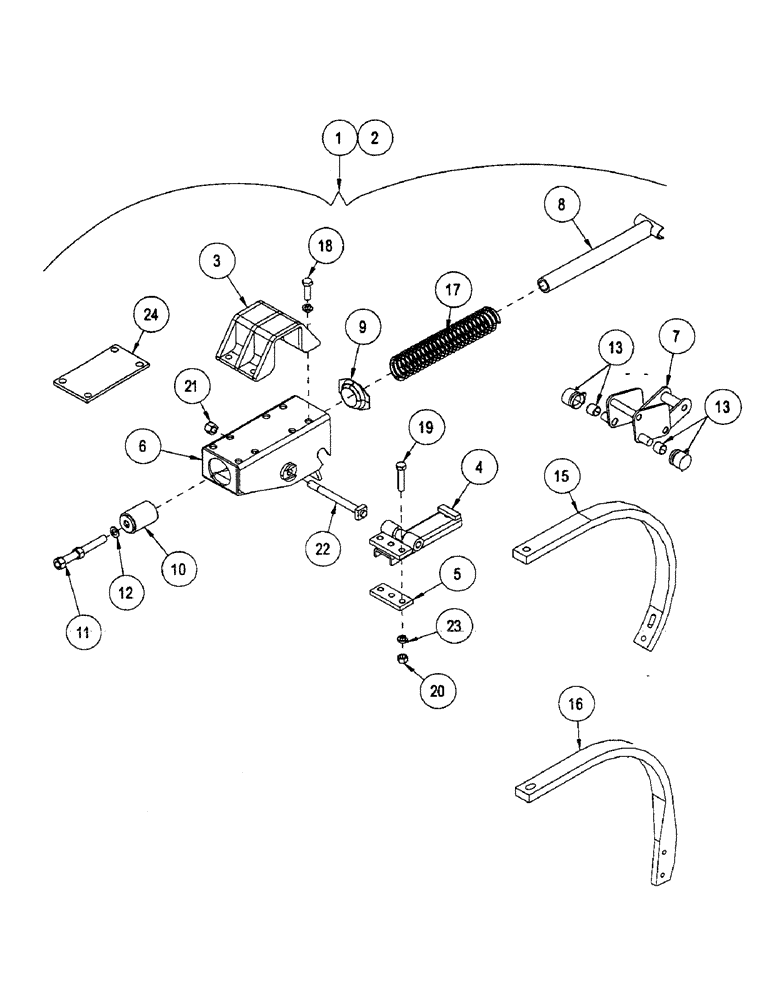

Запчасти Case IH CONCORD (B26) - TRIP SHANK ASSEMBLY

1

1019565

SHANK

ASSY-SHANK TRIP (Includes all parts, except 16)

1шт.

2

1032154

SHANK

ASSY - 84 degree shank: trip (Includes all parts, except 15)

1шт.

3

1019990

SUPPORT

CAST BRACKET PNTD C/W HOLES

1шт.

4

1019991

HOLDER

FOR 1'' SHANK MACHINED

1шт.

5

1019992

BAR

-CLAMPING PNT

1шт.

6

1019993

HOUSING

/W TRIP

1шт.

7

1019994

CAM

/W SHANK

1шт.

8

1019995

GUIDE

WLDMT-SPRING GUIDE PNT

1шт.

9

1019996

CAP

SPRING YZD (CAT.#5100)

1шт.

10

1019927

SPACER

TOOL/W TRIP SHANK

1шт.

11

1017589

STEM

ROD/W ADJUSTMENT .75 OD YZD

1шт.

12

1012634

WASHER

- flat: SAE .75 ZP

1шт.

13

1032344

SUPPORT

WLDMT - cam pivot boss w/bushing-spring tension

2шт.

15

1021309

SHANK

1 X 2 X 53 W/SL O/TOP

1шт.

16

1030504

SHANK

- side mount (Discontinued)

1шт.

1033295

SHANK

- side mount - 1 1/4

1шт.

17

1019999

SPRING

-C .438WR 2.68 OD 17.75

1шт.

18

1011909

BOLT

BOLT - hex: .63 x 1.25 NC GR5 ZP

4шт.

1013663

BOLT

BOLT - hex: .63 x 1.75 NC GR5 ZP (Used with 1 spacer)

4шт.

1011623

BOLT

- hex: .63 x 2.00 NC GR5 ZP (Used with 2 spacers)

4шт.

19

1011624

BOLT

BOLT - hex: .63 x 3.00 NC GR5 ZP (Case #413-1048)

3шт.

20

1011578

NUT,5/8"-11, G5

- hex: .63 NC GR2 ZP (Case #425-1010)

3шт.

21

232-14412

NUT,3/4"-10, GB

NUT - nylock: .75 NC GR6 ZP (Case #232-14412)

1шт.

22

1021434

PIN

/W PIVOT .75 OD YZD

1шт.

23

1011813

LOCK WASHER

- lock: .63 ZP (Case #492-11062)

7шт.

24

1019908

LARGE PLATE

PLATE-SPACER PNT

1шт.
