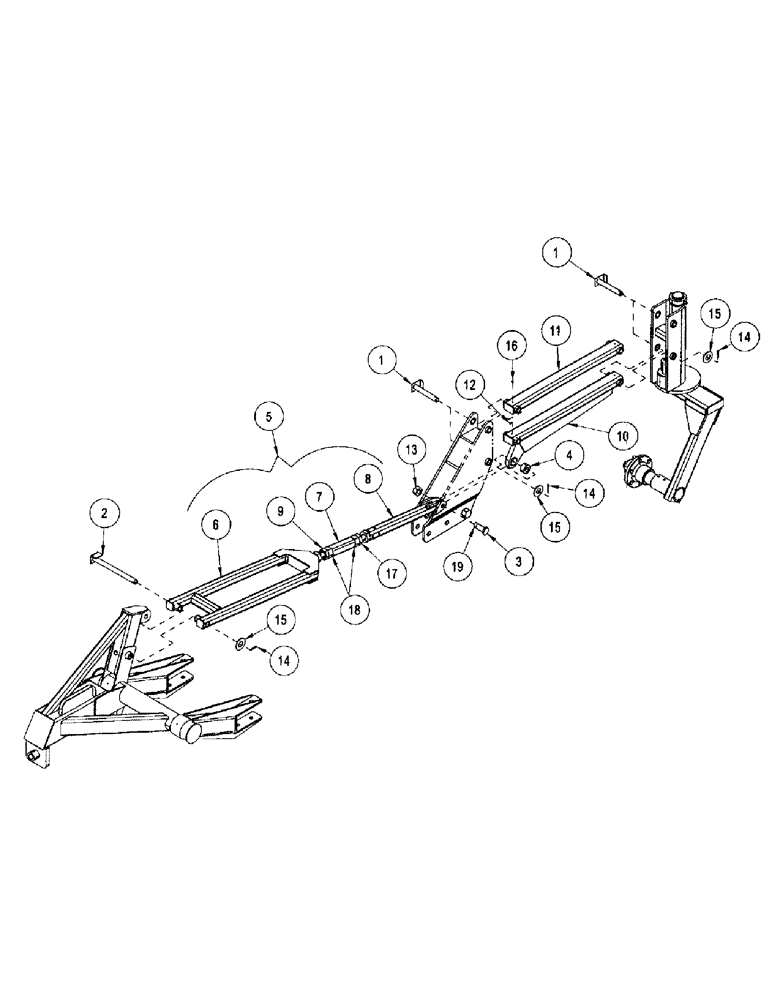

Запчасти Case IH CONCORD (B24) - DEPTH CONTROL LINKAGE

1

1032734

PIN

WLDMT - pivot pin

4шт.

2

1032730

PIN

WLDMT - pivot pin

1шт.

3

1032728

BOLT

- modified

1шт.

4

1032673

TUBE

- bushing

1шт.

5

1032612

CASTER ASSY

ASSY - caster linkage 3 rank (Incl. 6-9, 17)

1шт.

5

1032808

CASTER ASSY

ASSY - caster linkage 4 rank (Incl. 6-9, 17)

1шт.

6

1032610

YOKE

WLDMT - adjustment yoke

1шт.

7

1032600

TURNBUCKLE

WLDMT - turn buckle

1шт.

8

1032807

SUPPORT

WLDMT - front link (4 rank)

4шт.

8

1032595

ARM

WLDMT - front link (3 rank)

1шт.

9

1014849

LOCK NUT

NUT - jam: 1.50 NC GR2 ZP

1шт.

10

1032591

ARM ASSY.

WLDMT - bottom parallel arm

1шт.

11

1032580

ARM

WLDMT - top parallel arm

1шт.

12

1030331

NIPPLE, LUBE

ZERK - grease: .25-28 UNF 90DG

2шт.

13

1019830

JAM NUT

- nylock: jam 1.00 NC GR2 ZP

1шт.

14

1016944

PIN

- cotter: .25 x 2.00 ZP

5шт.

15

1016663

WASHER

- flat: SAE 1.00 ZP

5шт.

16

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

ZERK - grease: .25 UNF STR

2шт.

17

1032598

NUT

- jam: 1.50 NC GR2 ZP LH

1шт.

18

1027081

GREASE

ANTI-SEIZE COMPOUND: #234742 (Not shown)

1шт.

19

1017731

LOCTITE

#242 (Not shown)

1шт.
