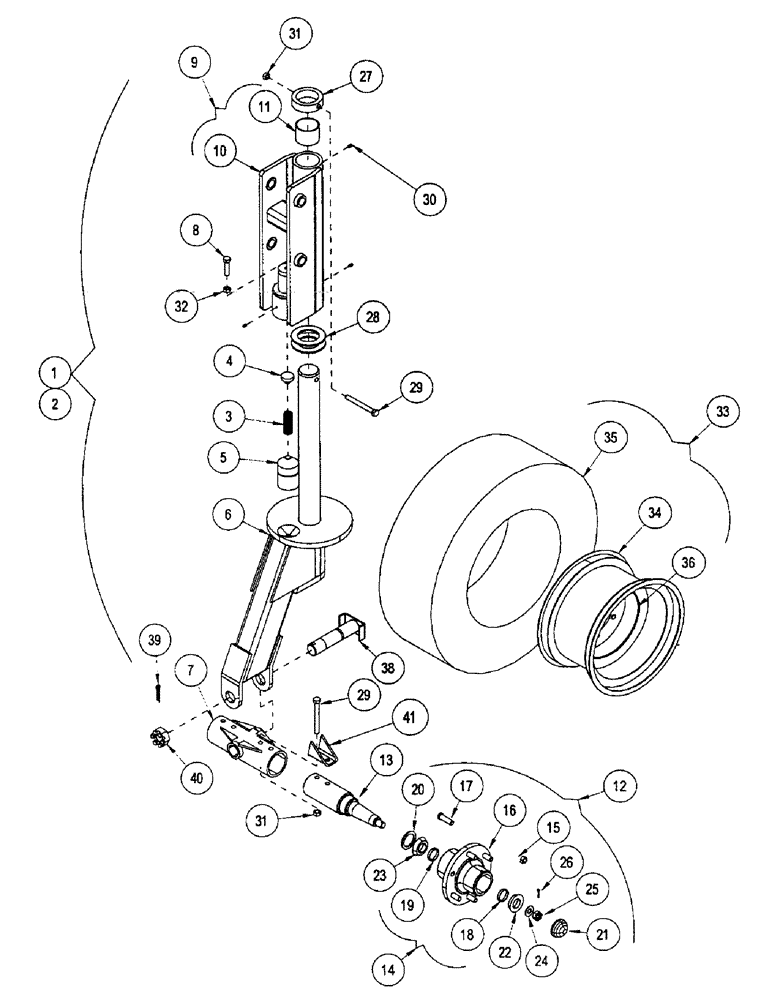

Запчасти Case IH CONCORD (B22) - DUAL CASTER, MAIN FRAMES AND WING FRAMES OVER 24 FOOT

1

1032660

MAKING-UP

WHEEL/W CASTER DUAL FRONT

1шт.

3

1033024

SPRING

-C DIE .38WR 1.5 OD 2LG

1шт.

4

1033023

BAR

-DETENT GUIDE

1шт.

5

1033022

BAR

-FRICTION PLUNGER

1шт.

6

1032640

HUB ASSY.

WHEEL/W caster dual

1шт.

7

1032651

PIVOT

WLDMT - spindle pivot

1шт.

8

1032658

BOLT

- hex special

1шт.

9

1032638

PIN

ASSY - king pin housing

1шт.

10

1032635

PIN

WLDMT - king pin housing

1шт.

11

1014163

BRONZE BUSHING,63.96mm ID x 69.95mm OD x 50.8mm L

BUSHING BRONZE 2.75 ODX2.5 ID

2шт.

12

1032632

HUB ASSY.

ASSY - spindle and hub

2шт.

13

1032656

BAR

- spindle

2шт.

14

1023733

BEARING HOUSING

HUB H630-2 COMPLETE

2шт.

15

1016177

WHEEL NUT

- lug: CT&D # WB40

6шт.

16

1016175

HUB

H630-2 C/W CUPS AND STUDS

1шт.

17

1016176

STEP BOLT

BOLT STUD .563 UNF GR5 WB41

6шт.

18

1012360

CUP

- bower #67010 (CT & D #LM67010)

1шт.

19

1012359

CUP

- CT&D # & NTN #LM501310

1шт.

20

1013560

SEAL

HUB OIL SEAL FED MOG #473473

1шт.

21

1012374

HUB

DUST CAP DC13 BLK

1шт.

22

1012356

ROLLER BEARING,1.25" ID x 0.625"

BEARING CONE #LM67048

1шт.

23

1012354

ROLLER BEARING,1.625" ID x 2.09375" OD x 0.7656"

CONE - CT&D #LM501349

1шт.

24

1012377

WASHER

P.WASHER .81 ID 1.75 .188 PLN

2шт.

25

1012376

SLOTTED NUT,3/4"-16, G5

NUT - hex: slot .75 NF GR5 ZP

2шт.

26

1012375

SPLIT PIN/SAFETY PIN

PIN - cotter: .19 x 1.50 NP

2шт.

27

1014161

RETAINER

-KING PIN

1шт.

28

1014154

THRUST WASHER

2.5 ID 4OD .188 YZD

2шт.

29

1013682

BOLT

- hex: .50 x 4.50 NC GR5 ZP

5шт.

30

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

ZERK - grease: .25 UNF STR

4шт.

31

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC GR6 ZP

5шт.

32

1011591

NUT,Jam, 1/2"-13, G5

- jam: .50 NC GR2 ZP

1шт.

33

1032205

TYRE/TIRE

TIRE - MNTD: 9.5L x 15 seal FI

2шт.

34

1032204

RIM

15 x 8 x 6 hole silver

2шт.

35

1032203

TYRE/TIRE

TIRE 9.5L-15 8 ply FI

2шт.

36

1012383

VALVE STEM

VALVE - stem

2шт.

37

1032219

SEALANT

TIRE ANTI PUNCTURE

2шт.

38

1032655

PIVOT PIN

WLDMT - pivot pin

1шт.

39

1025275

PIN, SPLIT (COTTER)

PIN - cotter: .38 x 3.00 ZP

1шт.

40

425-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex: slot 1.50 NC GR5 ZP

1шт.

41

1032657

TUBE

- stop

2шт.
