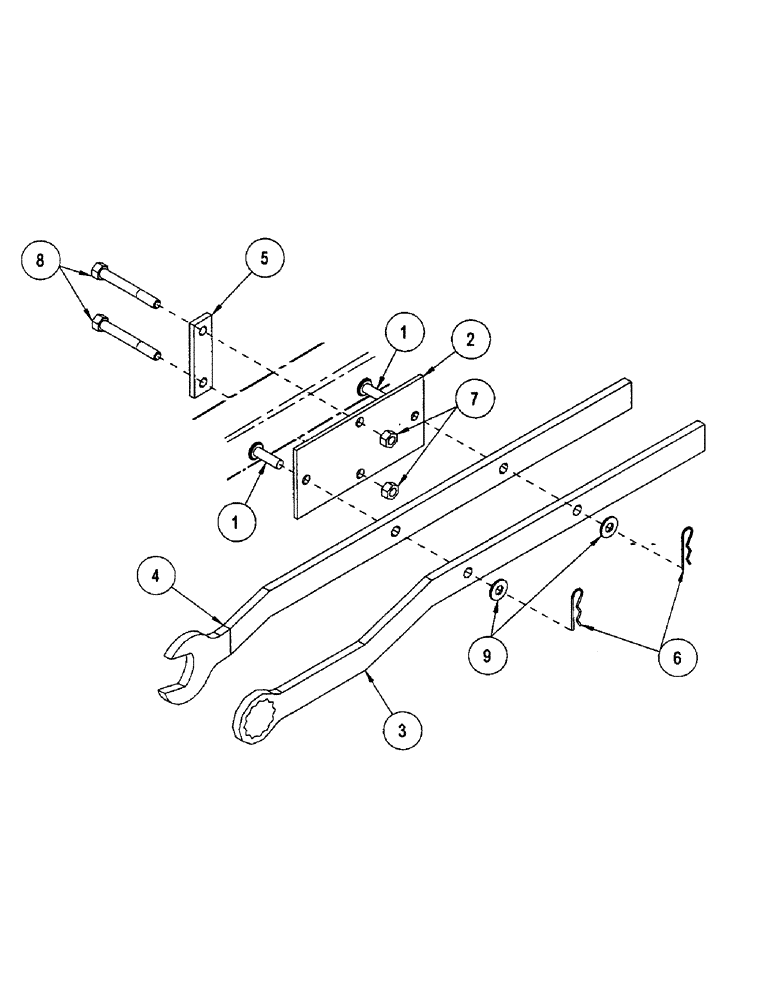

Запчасти Case IH CONCORD (B18) - WALKBEAM WRENCH MOUNTING

1

1027168

CLEVIS PIN

PIN - clevis: .38 x 1.25

2шт.

2

1027167

PLATE

-BOLTING PNT

1шт.

3

1027014

SPECIAL WRENCH

WRENCH OUTSIDE YZD

1шт.

4

1027004

SPECIAL WRENCH

WRENCH INSIDE 1.5'' YZD

1шт.

5

1024345

LARGE PLATE

PLATE BOLTING TK .25'' PNTD

1шт.

6

1024044

HAIR PIN COTTER,5.2mm x 41mm L

HAIRPIN .094 X 1.625 YZD

2шт.

7

232-1446

NUT,3/8"-16, GC

NUT - nylock: .38 NC GR6 ZP (Case #232-1446)

2шт.

8

1013239

BOLT

BOLT - hex: .38 x 3.00 NC GR5 ZP (Case #413-648)

2шт.

9

1014608

WASHER

- flat: SAE .38 ZP

2шт.
