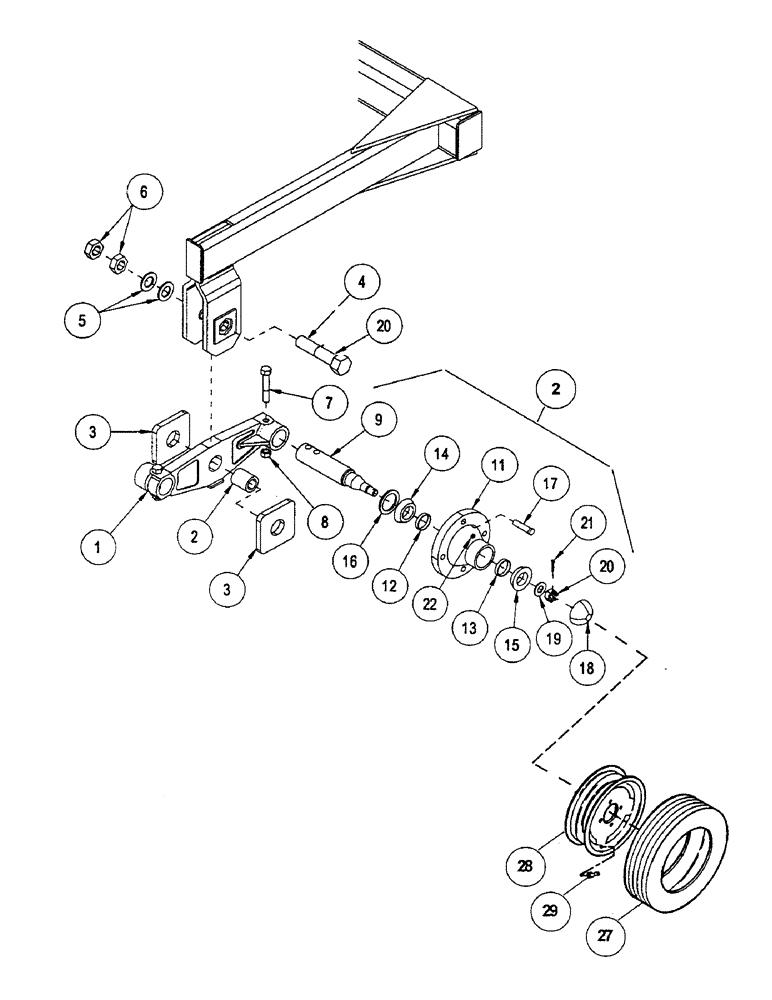

Запчасти Case IH CONCORD (B16) - WALKBEAM, PACKER

1033354

BEAM

ASSY - wlkbm & hub #10-1030717A10 (Incl. 2-21)

1шт.

1030717

BEAM ASSY.

ASSY - wlkbm & hub #12-1030717A10

1шт.

1

1029541

BEAM

WALKBEAM (BEAM) 10'' OR 12''

1шт.

2

1030716

AXLE

ASSY - spindle and hub (Incl. 3-16)

2шт.

2

1030050

BUSHING,25.81mm ID x 38.18mm OD x 44.45mm L

TUBE BUSHING

1шт.

3

1026129

PAD

UHMW PAD 3.97 X 3.97

2шт.

3

1026499

SKID/SHOE

PAD - nylatron

2шт.

4

1026375

BOLT

1 X 4.5 UNC GR8 YZD

1шт.

5

1016663

WASHER

- flat: SAE 1.00 ZP

2шт.

6

425-1416

JAM NUT,Jam, 1"-8, G5

- jam: 1.00 NC GR2 ZP

2шт.

7

1011611

BOLT

BOLT - hex: .50 x 3.00 NC GR5 ZP

2шт.

8

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC GR6 ZP

2шт.

9

1029546

AXLE SHAFT

SPINDLE - press wheel

1шт.

10

1023732

HUB ASSY.

ASSY-HUB CT& D FOR #HA411-7 (Incl. 5, 7, 8)

1шт.

11

1017103

HUB

- machining

1шт.

12

1012360

CUP

- bower #67010 (CT & D #LM67010)

1шт.

13

1013268

RACE

CUP - race: CT&D #LM-11910

1шт.

14

1012356

ROLLER BEARING,1.25" ID x 0.625"

BEARING CONE #LM67048

1шт.

15

1013620

ROLLER BEARING,0.75" ID x 0.61"

CONE - bower & CT&D #LM 11949

1шт.

16

1029527

SEAL

- triple lip

1шт.

17

1013597

WHEEL BOLT

BOLT WHEEL .5 UNF GR5 WB96

4шт.

18

1013622

CAP

- hub: CT&D # DC12

1шт.

19

496-11066

WASHER,21/32" x 1 5/16" x .095", HDN

1шт.

20

86637930

SLOTTED NUT,5/8"-18, G5

NUT - hex: slot .63 NF GR5 ZP

1шт.

21

1013626

SPLIT PIN/SAFETY PIN

PIN - cotter: .16 x 1.25 ZP

1шт.

22

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

ZERK - grease: .25 UNF STR

1шт.

23

1027081

GREASE

ANTI-SEIZE COMPOUND: #234742 (Not shown)

1шт.

24

1021377

TYRE/TIRE

TIRE 7.60-15 4 ply I-1 (1030013 tire-mntd) , packer

1шт.

1032375

TYRE/TIRE

TIRE 205-15 radial new (1032375 tire-mntd) , packer

1шт.

1013445

TYRE/TIRE

TIRE 5.00-15 4 ply I-1 TB type (1032368 tire-mntd) , packer

1шт.

1022830

TYRE/TIRE

TIRE RADIAL 165S-15 (S-211) (1032391 tire-mntd) , packer

1шт.

1025920

TYRE/TIRE

TIRE - radial P205/75R15 recap (1032390 tire-mntd) , packer

1шт.

1013404

TYRE/TIRE

TIRE 6.70-15 4 ply I-1 (1032389 tire-mntd) , packer

1шт.

1019890

TYRE/TIRE

TIRE 5.90-15 4 ply I-1 (2310) (1032388 tire-mntd) , packer

1шт.

25

1030012

RIM

- 4 hole (1030013 tire-mntd) , packer

1шт.

1030857

WHEEL

RIM - 4 hole (1032375 tire-mntd) , packer

1шт.

RIM - 4 hole (1032368 tire-mntd) , packer

1шт.

RIM - 4 hole (1032391 tire-mntd) , packer

1шт.

RIM - 4 hole (1032390 tire-mntd) , packer

1шт.

RIM - 4 hole (1032389 tire-mntd) , packer

1шт.

RIM - 4 hole (1032388 tire-mntd) , packer

1шт.

26

1018564

VALVE

- stem , packer tire

1шт.

27

1032219

SEALANT

TIRE ANTI PUNCTURE , packer tire

1шт.
