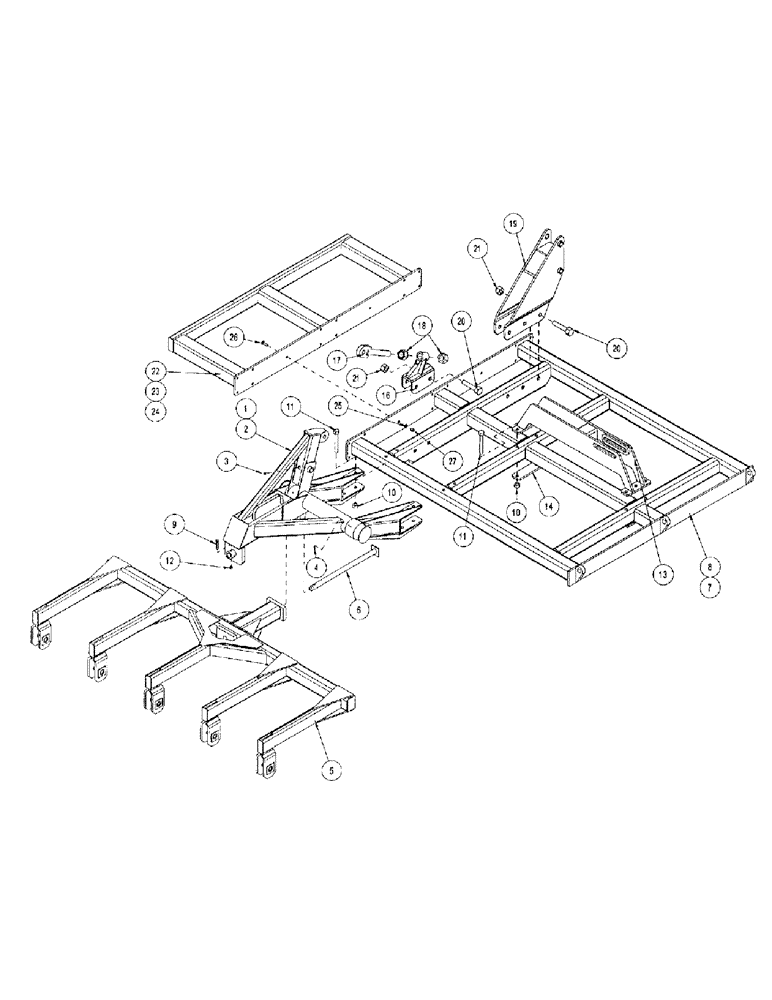

Запчасти Case IH CONCORD (B08) - WING FRAME, THREE RANK

1

1032710

ROCKSHAFT

WLDMT - rock shaft right hand (3010)

1шт.

1032716

ROCKSHAFT

WLDMT - rock shaft right hand (2310)

1шт.

1032714

ROCKSHAFT

WLDMT - rock shaft right hand (2412)

1шт.

1032712

ROCKSHAFT

WLDMT - rock shaft right hand (2812,2710)

1шт.

2

1032709

ROCKSHAFT

WLDMT - rock shaft left hand (Shown-3010)

1шт.

1032715

ROCKSHAFT

WLDMT - rock shaft left hand (2310)

1шт.

1032713

ROCKSHAFT

WLDMT - rock shaft left hand (2412)

1шт.

1032711

ROCKSHAFT

WLDMT - rock shaft left hand (2812,2710)

1шт.

3

1032490

FITTING

ZERK - grease: long

1шт.

4

1030331

NIPPLE, LUBE

ZERK - grease: .25-28 UNF 90DG

2шт.

5

1029695

FRAME

GANG/W WHEEL 10'' PNTD (Shown-3010)

1шт.

1029697

FRAME

GANG/W WHEEL 10'' PNTD (2310)

1шт.

1029700

FRAME

GANG/W WHEEL 12''-6 PNTD (2412)

1шт.

1029699

FRAME

WLDMT - wheel gang (2812)

1шт.

1029696

FRAME

GANG/W WHEEL 10'' PNTD (2710)

1шт.

6

1017002

PIN

/W PIVOT 1.250 OD YZD

1шт.

7

1032546

FRAME

WLDMT - wing RH

1шт.

8

1032545

FRAME

WLDMT - wing LH (Shown)

1шт.

9

1015174

BOLT

BOLT - hex: 3/8 x 2 1/2 NC GR5 ZP

1шт.

10

232-14412

NUT,3/4"-10, GB

NUT - nylock: 3/4 NC GR6 ZP

8шт.

11

1013348

BOLT

BOLT - hex: 3/4 x 6.00 NC GR5 ZP

8шт.

12

232-1446

NUT,3/8"-16, GC

NUT - nylock: 3/8 NC GR6 ZP

1шт.

13

1032625

FRAME

WLDMT - wing lift

1шт.

14

1032624

BAR

- bolting

2шт.

15

1032620

CYLINDER ASSY.

ASSY - cylinder anchor (Incl. 16-18, 20-21)

1шт.

16

1032615

ANCHOR

WLDMT - cylinder anchor

1шт.

17

1032614

ROD, ADJUSTMENT

WLDMT - adjustment rod

1шт.

18

425-1024

NUT,1 1/2"-6, G5

- hex: 1 1/2-2 NC GR2 ZP

2шт.

19

1032585

FRAME

WLDMT - caster tower

1шт.

20

1026020

BOLT

- hex: 1.00 x 5.00 NC GR5 ZP

5шт.

21

232-14416

NUT,1"-8, GC

NUT - nylock: 1.00 NC GR6 ZP

5шт.

22

1032725

FRAME

WLDMT - wing extension (Shown-3010)

1шт.

23

1032726

FRAME

WLDMT - wing extension (2812)

1шт.

24

1032727

FRAME

WLDMT - wing extension (2710)

1шт.

25

1011584

WASHER

- flat: SAE .50 ZP

14шт.

26

1011660

CARRIAGE BOLT,1/2" - 13 x 1 1/2", Gr 5

BOLT - CRG: .50 x 1.50 NC GR5 ZP

14шт.

27

231-4248

NUT,1/2"-13, GB

NUT - centerlock: .50 NC GR5 ZP

14шт.
