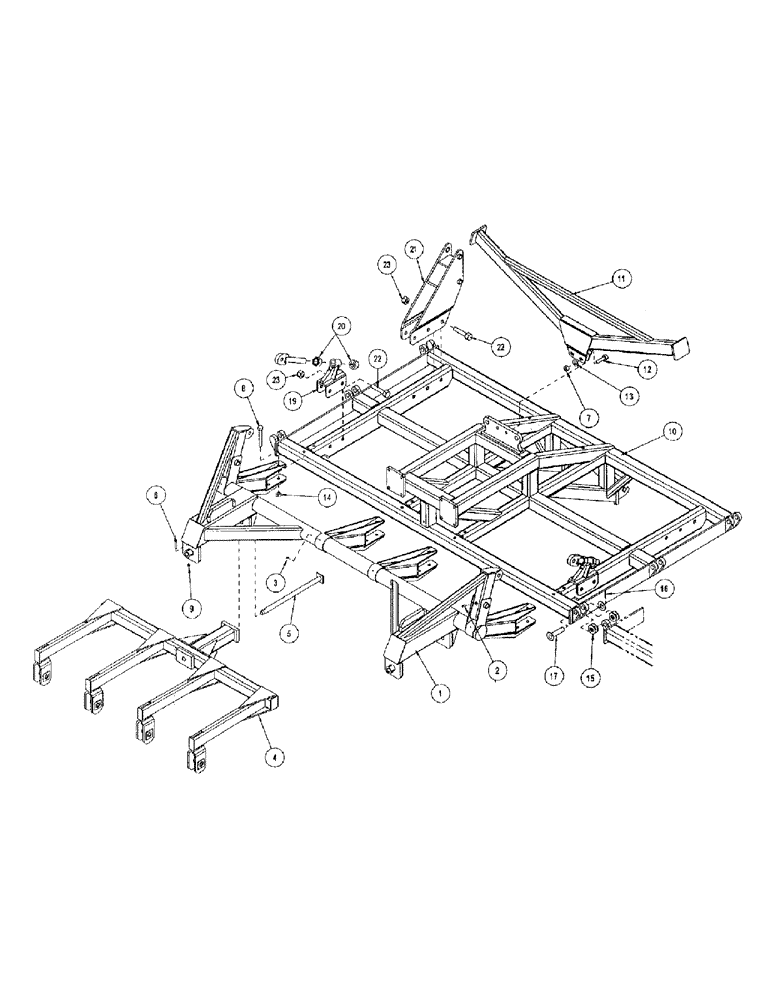

Запчасти Case IH CONCORD (B04) - MAIN FRAME, THREE RANK

1

1032700

ROCKSHAFT

WLMDT - rock shaft (3010,2710,2310,2010)

1шт.

1032705

ROCKSHAFT

WLMDT - rock shaft (2812,2412,2012)

1шт.

2

1032490

FITTING

ZERK - grease: long

2шт.

3

1030331

NIPPLE, LUBE

ZERK - grease: .25-28 UNF 90DG

4шт.

4

1029696

FRAME

GANG/W WHEEL 10'' PNTD (3010,2710,2310,2010)

2шт.

1029700

FRAME

GANG/W WHEEL 12''-6 PNTD (2812,2412,2012)

2шт.

5

1017002

PIN

/W PIVOT 1.250 OD YZD

2шт.

6

1015174

BOLT

BOLT - hex: 3/8 x 2 1/2 NC GR5 ZP

2шт.

7

232-14412

NUT,3/4"-10, GB

NUT - nylock: 3/4 NC GR6 ZP

2шт.

8

1013348

BOLT

BOLT - hex: 3/4 x 6.00 NC GR5 ZP

8шт.

9

232-1446

NUT,3/8"-16, GC

NUT - nylock: 3/8 NC GR6 ZP

2шт.

10

1032540

FRAME

WLDMT - main frame

1шт.

11

1032565

FRAME

WLDMT - stop tower

1шт.

12

1012059

BOLT

BOLT HEX .75 x 3.00

2шт.

13

1013003

WASHER

flat .75

4шт.

14

232-14412

NUT,3/4"-10, GB

NUT, nylock .75

8шт.

15

1016950

WASHER

flat 1.25 SAE

30шт.

16

1016944

PIN

- cotter .25 x 2.00

6шт.

17

1015235

PIN

WLDMT - hinge pin

6шт.

18

1032620

CYLINDER ASSY.

ASSY - cylinder anchor

2шт.

19

1032615

ANCHOR

WLDMT - cylinder anchor

1шт.

20

425-1024

NUT,1 1/2"-6, G5

- hex: 1 1/2-2 NC GR2 ZP

2шт.

21

1032585

FRAME

WLDMT - caster tower

2шт.

22

1026020

BOLT

- hex: 1.00 x 5.00 NC GR5 ZP

10шт.

23

232-14416

NUT,1"-8, GC

NUT - nylock: 1.00 NC GR6 ZP

10шт.
