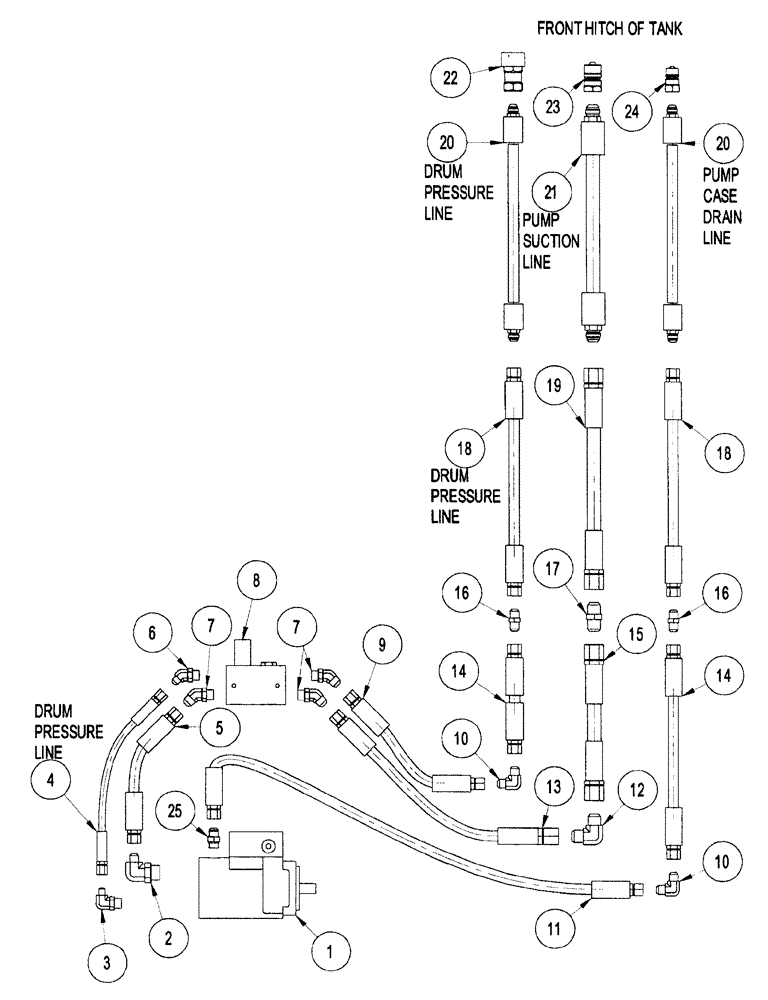

Запчасти Case IH CONCORD (8-12) - CYCLO AIR EQUIPPED 2300/3400/3503 AIR SYSTEM W/DIESEL FAN

1

312164A1

PUMP

Variable Displacement (See Figure 9C-25 For Compnonents)

1шт.

2

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

90 ADJ 37FL 1/2 X 3/4 Tube

1шт.

3

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., 3/8 x 1/2 Tube

1шт.

4

312279A1

HOSE

.38" X 07" -6JICFSW Both

1шт.

5

312282A1

HOSE ASSY.

.50" X 11" -8JICFSW Both

1шт.

6

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

45 ADJ 37FL 3/8 X 1/2 Tube

1шт.

7

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adj., 1/2 Tube

3шт.

8

312232A1

VALVE

Presrelief & Check (See Figure 9C-25 For Components)

1шт.

9

1024978

HOSE ASSY.

.50 X 36 -8JICFSW Both

1шт.

10

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

1/2" Tube

2шт.

11

1015402

HOSE ASSY.

.50 X 48 -8JICFSW Both

1шт.

12

218-476

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

37FL 90 3/4" Tube

1шт.

13

312329A1

HOSE ASSY.

1/2" X 33" -8JICFSW -12JICFSW

1шт.

14

1027941

TUBE,0.5" Diameter, 22" Length

1/2" X 22" Steel (3400/3503)

2шт.

15

1027942

TUBE,0.75" Diameter, 22" Length

1/2" X 22" Steel (3400/3503)

1шт.

16

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION, 37FL 1/2" Line

2шт.

17

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

UNION, 37FL 3/4" Line

1шт.

18

1024392

HYD TUBE,12.7 mm Diameter, 3353 mm Length

1/2" X 130" Steel

2шт.

18

1015025

HYD TUBE,19.1 mm Diameter, 3048 mm Length

1/2" X 120" Steel (For 2000 Air Systems)

2шт.

19

1024393

HYD TUBE,19.1 mm OD, 3353 mm Length

3/4" X 132" Steel

1шт.

19

1015026

HYD TUBE,12.7 mm Diameter, 3048 mm Length

3/4" X 120" Steel (For 2000 Air Systems)

1шт.

20

1018860

HOSE ASSY.

.38" X 130" -8NPTM -8JICM

2шт.

21

1018859

HOSE ASSY.

.75" X 130" -12NPTM -12JICM

1шт.

22

1994568C1

COUPLING, QUICK, FEM

ISO Female 1/2" Pipe

1шт.

23

114531A1

COUPLING

Aeroquip Male 3/4"

1шт.

24

1272770C2

COUPLING, BREAK AWAY

ISO Male 1/2" Pipe

1шт.

25

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2" 37FL 1/2" ORB

1шт.
