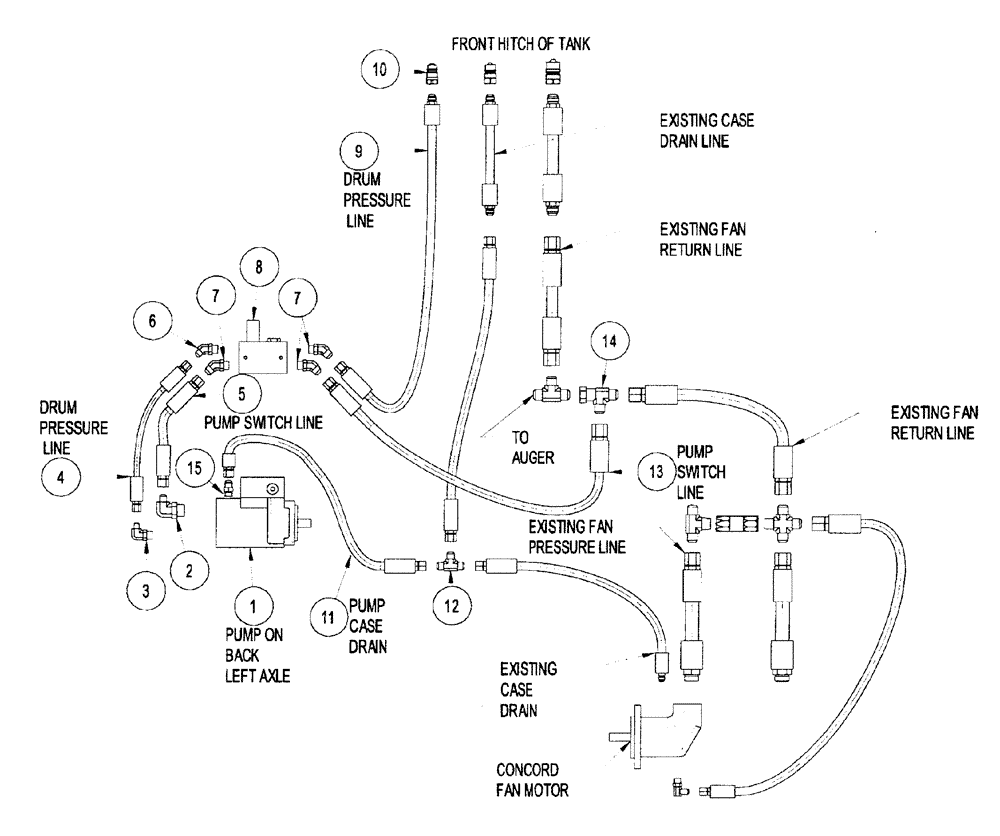

Запчасти Case IH CONCORD (8-10) - CYCLO AIR EQUIPPED 2300/3400/3503 AIR SYSTEM W/HYDRAULIC FAN

1

312164A1

PUMP

Variable Displacement (See Figure 9C-25 For Components)

1шт.

2

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

90 ADJ 37FL 1/2 X 3/4 Tube

1шт.

3

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., 3/8 x 1/2 Tube

1шт.

4

312279A1

HOSE

.38" X 07" -6JICFSW Both

1шт.

5

312282A1

HOSE ASSY.

.50" X 11" -8JICFSW Both

1шт.

6

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

45 ADJ 37FL 3/8 X 1/2 Tube

1шт.

7

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adj., 1/2 Tube

3шт.

8

312232A1

VALVE

Presrelief & Check (See Figure 9C-25 for Components)

1шт.

9

1026205

HOSE ASSY.

.38" X 300" -8NPTM -8JICFSW

1шт.

10

1272770C2

COUPLING, BREAK AWAY

Male ISO

1шт.

11

1015402

HOSE ASSY.

.50" X 48" -8JICFSW Both

1шт.

12

218-594

TEE,3/4"-16, 37 Degree

37FL 1/2" Tube

1шт.

13

312329A1

HOSE ASSY.

.50" X 33" -8JICFSW -12JICFSW

1шт.

14

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

3/4" Tube

1шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2" 37FL 1/2" ORB

1шт.
