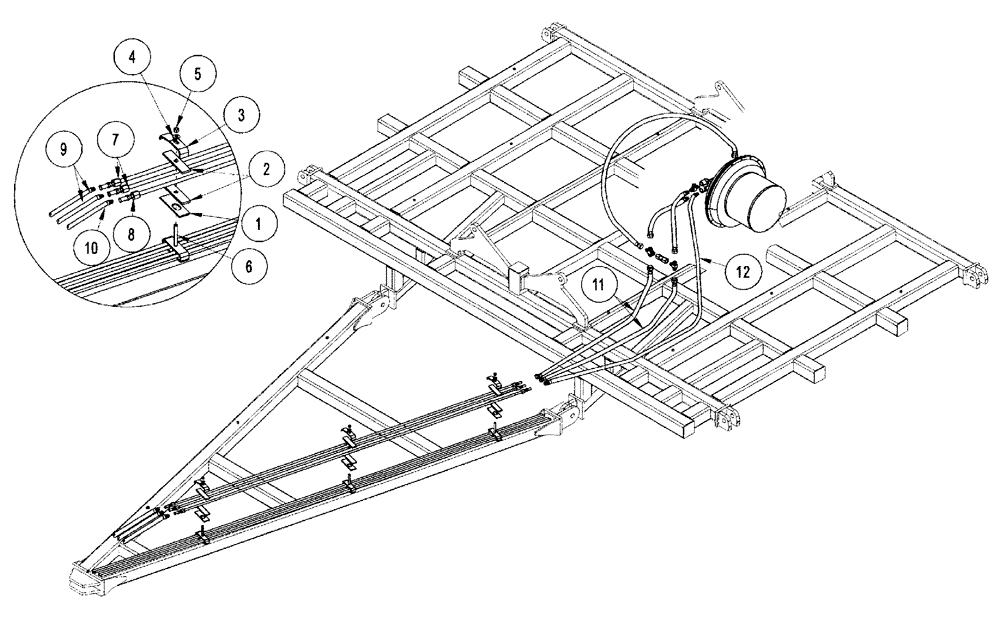

Запчасти Case IH CONCORD (8-08) - HIGH FLOW FAN, W/REAR TOW AIR SYSTEM

1

1026713

CLAMP

Backing

3шт.

2

1026714

ISOLATOR

5.00

6шт.

3

1026712

CLAMP

5.00

3шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

3шт.

5

231-1446

NUT,3/8" - 16, Gr 5

3шт.

6

1026677

STUD

.38 X 3.25 NC GR2 ZP

3шт.

7

1026745

TUBE,0.75" Diameter, 108" Length

3/4" X 108" Steel

2шт.

8

1026743

HYD TUBE,0.5" Diameter, 108" Length

1/2" X 108" Steel

1шт.

9

1018134

HYDRAULIC HOSE

HOSE HYD .75 X 96 FL

2шт.

10

1018133

HYDRAULIC HOSE

HOSE HYD .375 X 96 FL

1шт.

11

312269A1

HOSE ASSY.

.75 X 90-12JICM Both

2шт.

12

1026114

HOSE ASSY.

.38 X 90-8JICM Both

1шт.
