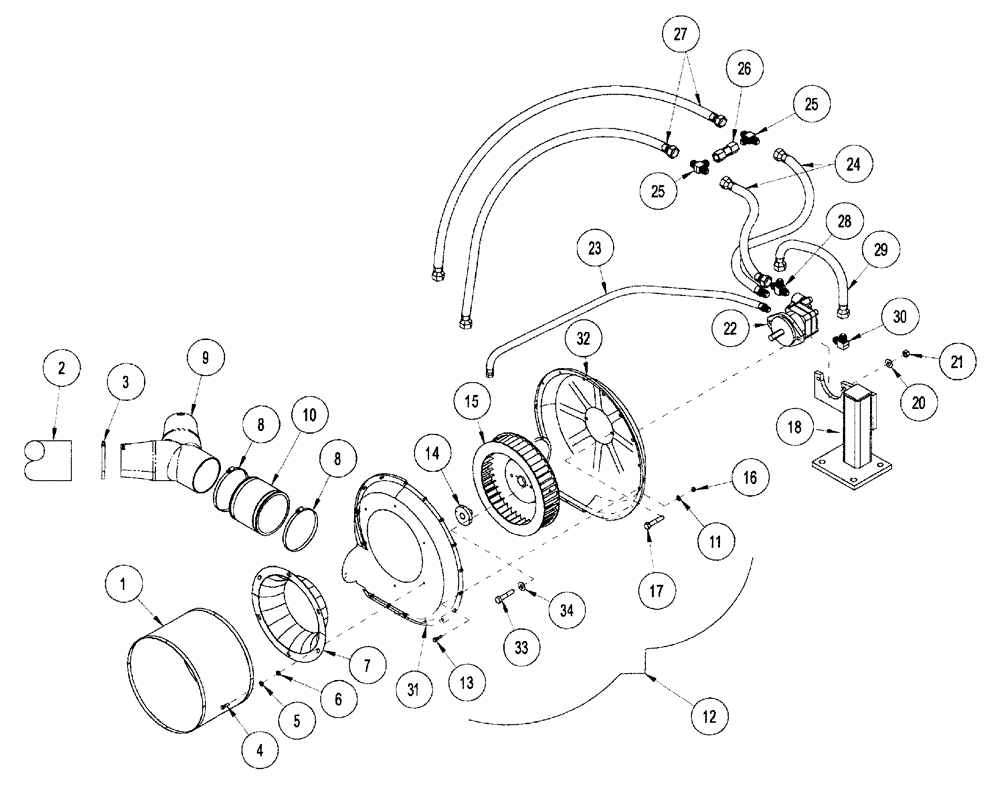

Запчасти Case IH CONCORD (8-02) - STANDARD AIR SUPPLY FAN

1

306607A1

SCREEN

cyclo fan

1шт.

2

350642A1

HOSE

black 5" flexible 50 ft roll

1шт.

3

214-1488

HOSE CLAMP,130.05mm - 152.4mm

4шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

5

495-11028

WASHER,1/4", SAE

6шт.

6

492-11025

LOCK WASHER,1/4"

6шт.

7

306613A1

INTAKE ASSY

INLET bell

1шт.

8

214-14116

HOSE CLAMP,#116, 6.88" - 7.75", Type F Worm

Hose #116

2шт.

9

312284A1

TUBE,123.8 mm ID, 130.2 - 152.4 mm OD

DIVIDER Air

1шт.

10

312340A1

ADAPTER

6" rubber

1шт.

11

492-11031

LOCK WASHER,5/16"

6шт.

12

NSS

NOT SOLD SEPARAT

FAN ASSEMBLY standard (Order components 1, 4-7, 11, 13-17, 31-34)

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

14

306614A1

BUSHING

HUB taper lock 18 mm

1шт.

15

306363A1

ROTOR

cyclo fan

1шт.

16

425-105

NUT,5/16"-18, G5

6шт.

17

461-44440

HEX SOC SCREW,Flat Hd, 7/16"-14 x 2 1/2"

BOLT flat head socket 7/16 NC X 2.5 inch

2шт.

18

311966A1

MOUNTING PARTS

standard fan

1шт.

20

492-11044

LOCK WASHER,7/16"

2шт.

21

425-107

NUT,7/16"-14, G5

2шт.

22

306379A1

HYDRAULIC MOTOR

hydraulic Volvo F11-5-HUCHK

1шт.

350643A1

SEAL

shaft

1шт.

23

1015017

HOSE ASSY.

.38 X 44 -8JICFSW/-6 OR M

1шт.

24

1030900

HOSE ASSY.

.50 X 24 -8JICFSW both

2шт.

25

218-554

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Br

3/4-16 flare

2шт.

26

1014997

FITTING

check valve

1шт.

27

1015222

HYDRAULIC HOSE

HYD .5 X 90 FL

2шт.

28

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable run

1шт.

29

312352A1

HOSE ASSY.

.38 X 10 -8JICFSW90 -6JICFSW

1шт.

30

312362A1

ELBOW

with 0.31 restrictor -6OR/-6JICM

1шт.

31

306377A1

INTAKE ASSY

CASTING air inlet

1шт.

32

290704A1

PLATE

bearing motor mount w/ F11-5 motor

1шт.

33

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

34

492-11025

LOCK WASHER,1/4"

2шт.
