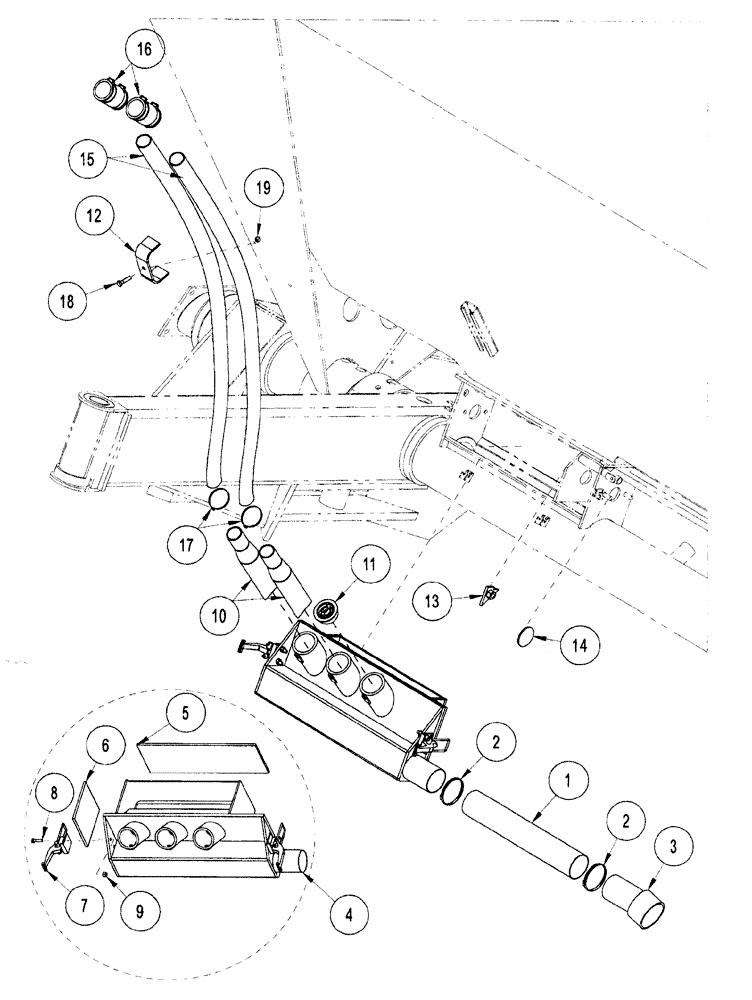

Запчасти Case IH CONCORD (9C-26) - SEED DOOR

1

1032279

HOSE,2.50" ID

Black

8шт.

2

214-1444

HOSE CLAMP,58.6mm - 82.5mm

SS

2шт.

3

312238A1

ADAPTER

2" Pipe to 2.5" Tube

1шт.

4

312648A1

DOOR

Seed Cyclo Air (Includes 5-9)

1шт.

5

350503A1

DOOR SEAL

Seed Door Back

1шт.

6

350505A1

DOOR SEAL

Seed Door Side

2шт.

7

1013286

TOGGLE

TOGGLE

2шт.

8

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

9

231-1444

NUT,1/4"-20, GB

4шт.

10

306598A1

TUBE,38.1 - 50.8 mm OD, 277 mm Length

ADAPTER

2шт.

11

306384A1

PLUG

Rubber 2" Adjustable

1шт.

12

312280A1

CLAMP

1.5" HOSE

1шт.

13

306991A1

PLATE

Plugging

1шт.

14

312330A1

PLUG

2" Rubber

2шт.

15

1015887

HOSE,1.50" ID BULK

Black (Per Foot, in 50, 75 or 100 ft rolls)

1шт.

16

312335A1

CONNECTOR, ELEC

CONNECTOR 1.5" Rubber

2шт.

17

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

18

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

19

231-1446

NUT,3/8" - 16, Gr 5

1шт.
