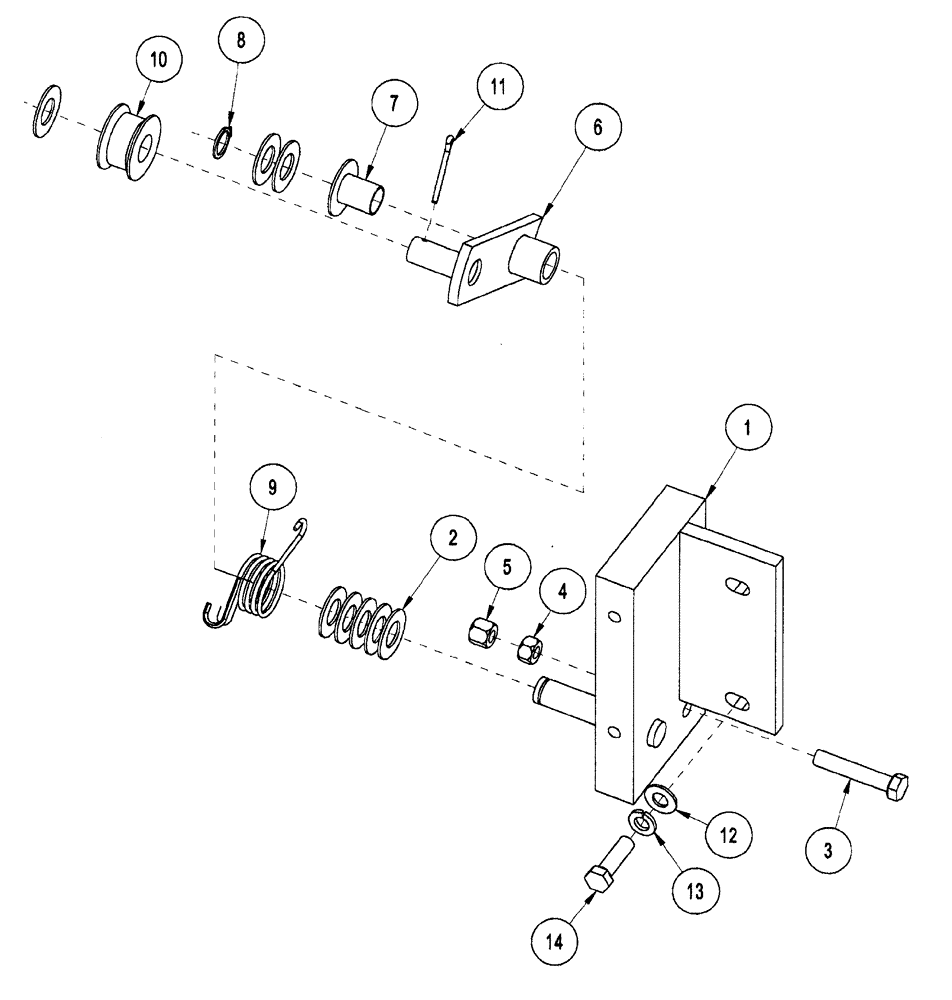

Запчасти Case IH CONCORD (9C-22) - IDLER ASSEMBLY

1

312642A1

BRACKET

Bearing Mount

1шт.

1

305276A1

BRACKET - Bearing Mount 2000 Air System

1шт.

2

495-81182

WASHER,21/32" x 1 1/4" x .060"

.656 x 1.25 x .061 inch, CST, ZND

8шт.

3

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

4

425-106

NUT,3/8"-16, Cl 5

1шт.

5

231-1446

NUT,3/8" - 16, Gr 5

1шт.

6

1277658C1

LEVER

IDLER ARM ASSEMBLY

1шт.

7

1277785C1

BUSHING,15.9mm ID x 17.45mm OD x 28.57mm L

IDLER

1шт.

8

100-1662

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

9

312231A1

SPRING

Idler Unit

1шт.

10

1277653C1

IDLER

ROLLER

1шт.

11

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

.406 x .812 x .065 inch, CST, ZND

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.
